API 610 SHD/DSH Gas Processing Pump is axially-split one or two stage between bearing pumps designed according to API610.

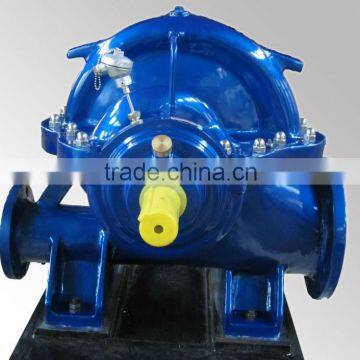

API 610 SHD/DSH Gas Processing Pump
API 610 SHD/DSH Gas Processing Pump is axially-split one or two stage between bearing pumps designed according to API610. SHD series pump is single stage and DSH series pump is two stage BB1 pump.
Parameter
Size: 1-24 inches
Capacity: 15-4500 m3/h
Head: 10-320m
Temperature: 0-210 °C
Material: Cast steel, SS304(L) , SS316(L), SS316Ti, SS316L, CD4MCu, Titanium, Titanium Alloy, Hastelloy Alloy
Model Description
350SHD530,DSH180-150×2
SHD,DSH-- series code
350 -- suction size mm
530 -- dia.of impeller mm
180 -- capacity m3/h
150-- single stage head m
2-- stages/impeller number
Applications
The pumps are suitable for pumping clean liquids or liquids with some tolerance of slight
contamination by solids. They are used for pumping liquids for petrochemical process, for water
supply and treatment, in irrigation, in district heating plans, in the paper and pulp industries, as marine
ballast and cooling water pumps, in sea water desalination plants, for offshore duties. As well as being used
for other similar usefulness. SHD pumps can also be used as energy recovery turbines.
Features
Design: Full compliance with API 610 8th edition specification.
Construction:
1. The casing is axially split with the suction and discharge branches located in the lower half, so it
allows the complete pump rotor with bearings to be removed for maintenance without disturbing the
main pipework and valves. Short inspection and maintenance time.
2. Impeller is symmetrically arranged. Rotor is in hydraulic balance. Double volute casing reduced
radial thrust and bearing loads.
3. Large branches. reduce flow rate and noise, able to bear higher nozzle load.
4. Size of seal chamber complies with API682 specification. Seal chamber is designed to fit all type
of seal, such as: single, dual, tandem,and cartridge mechanical seal. Cartridge seal is standard type.
5.Replaceable wear rings prevent the main components from being worn out.
6. Generous shaft diameter, small span. Reduce shaft deflection. Lengthen seals and bearing life.
7. Heavy duty rotor bearings. Special strength design makes the bearings run reliably.
8. Elastic membrance and Extension coupling.
9. Optional instrumentation to monitor temperature, pressure and vibration,etc.
10.Welded common baseplate with drain rim.
11.Wide choice of hydraulics, good NPSHr performance, high efficiency, wide perfect region, power
saving and low consumption.
12.Reliability: Every product is strictly checked before shipment.
13.Manufacture: excellent equipment, high-class staff, top-ranking products.
14.Service: rapid service, lifelong maintenance.
We can supply Material test, Hydrostatic pressure test, Dynamic balance test.
SHIJIAZHUANG DAMEI KINGMECH PUMP CO., LTD( Kingmech Pump) is a professional and leading pump manufacturer for mining and petro-oil industry in China.
Kingmech pump produces API610 Petro-oil pump, chemical pump, Slurry Pump, Magnetic driven pump, water pump and resistance wearing castings, as well as pump spare parts. There has tens of series, more than 100 varieties, thoudsands of models.
The pumps are widely used in mining, metallurgy, coal mining, power plant, petroleum, chemical,
and drainage industry, and so on.
Kingmech pump developed the above pumps by importing some advanced technology from
some west countries, such as USA, Austrilia, Switzerland, Germany, Japan, and so on.
Kingmech pump owns one slurry pump factory locates in Shijiazhuang City,
one API610 petrol-oil pump factory in Shenyang City,
and one Chemical pumps & magnetic drive pump factory in Dalian City.
Kingmech Pump hasexprienced senior engineers, outstanding technicians. Also it has a professional
marketing team, they can speak english, russian, spanish skillfully, and they know international
business proficiently. Our company has 20 years export pumps practice expriences.
Our pumps has exported to more than 50countries, like: Russia, Philippines, Chile, Argentina,
Vietnam, Iran, Sudan, Kazakhstan, Pakistan, Laos, Czech, and so on.
“FIRST CLASS QUALITY, ADVANCED TECHNIQUE, FAIRY PRICE, IN TIME DELIVERY,
BEST SERVICE. is the operation principle of Kingmech Pump.
We sincerely welcome all the experts or friends all over the world who are interested in our products
to do business with us.
