Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > API Horizontal Multistage Centrifugal Single Casing Pump High Pressure Boiler Pump

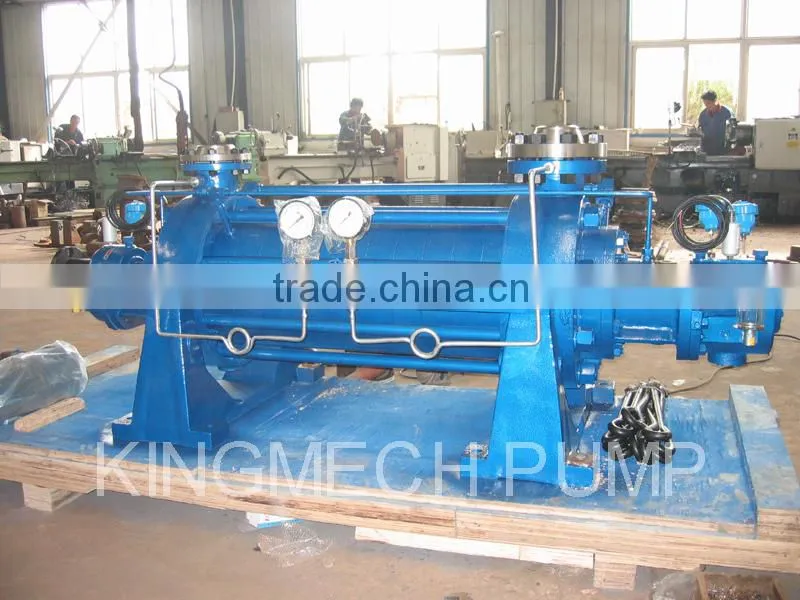

API Horizontal Multistage Centrifugal Single Casing Pump High Pressure Boiler Pump

US$ 1,000 - 2,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Liaoning, China

Brand Name:

Model Number:

RMD

Contact Supplier Request Quote Chat Now

Shijiazhuang Damei Kingmech Pump Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Liaoning, China

Brand Name DK

Model Number RMD

Theory Centrifugal Pump

Structure Single-stage Pump

Usage Oil

Power Hydraulic

Standard or Nonstandard Nonstandard

Fuel Gasoline

Pressure High Pressure

Application Other, Industry water

Performance curves:

Size: 4-10 inches

Capacity: 100-580 m3/h

Head: 740-2150m

Temperature: 0-210 °C

Material

Suction casing ,discharge casing, diffuser, and impeller: carbon steel of chrome steel.
Shaft, wear ring and diffuser bush: chromic alum steel of chrome steel.

Construction

The pumps are sectional casing, multi-stage centrifugal pumps. The suction casing, stage casing and discharge casing are rigidly held together by the bolts. The joints between these casing are primarily sealed by means of metal-metal contact. Simultancously ,o-rings are used as auxiliary seals.
The forged pieces are used for the suction ,stage and discharge casings of type MSHB pressure boiler feed pumps.

Shaft sealing

The shafts of these pumps are sealed by soft-packing and cooling water . In the region of shaft sealing ,the pump shaft is protected by renewable sleeve.

Bearings and axial balancing device

The rotating assembly is supported by sliding bearings on both ends of the pump shaft . Bearings of pump are forced-lubricated. The oil system is equipped for type DG pump. The axial thrust of rotor osis balanced by balance disc. And the thrust bearing is laso provided which is rsed to bear residral axial force caused by the change of working conditions.

Drive

The pump is directly driven by the motor through the coupling. The gear, membrane coupling and hydraulic coupling can be used according to client’s requirements. The pump can be driven by turbine of motor.
The rotating direction of pumps are clockwise when viewed fron the driving end.
Type MSH high pressure boiler feed pumps are used for feeding high pressure boiler of pumping high pressure clean water.

Application

Widely used in industry water supply.

Company

Our Team&Factory

Pump on Site

We have projects all around the world. Our pumps are popular among our clients.

Certification

Our Service

1.Reply your enquiry in 24 working hours, any time you can contact me.

2.OEM, buyer design, buyer label services provided.

3.Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.

4.we have the certification of ISO 9001
5.Special discount and protection of sales area provided to our distributor.
6.timely delivery
7.packing can make client brand.
8.Good after-sale service
