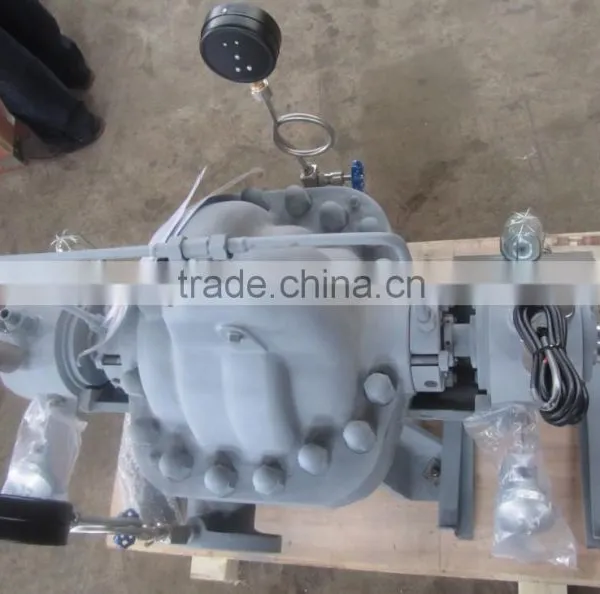

DK 2014 hot sale high quality petro oil API610 bb1 centrifugal pump

Specifications

1.Type SHD and DSH pump is axially-split one and two stage between bearing pumps .
2.SHD is single satge and DSH is two stage.





Type SHD and DSH pump is axially-split one and two stage between bearing pumps . SHD is single satge and DSH is two stage pump

Size: 1-24 inches

Capacity: 15-4500 m³/h

Head: 10-320m

Temperature: 0-210 °C

Material: Cast steel, SS304, SS316, SS316Ti, SS316L, CD4MCU



Applications

The pumps are suitable for pumping clean liquids or liquids with some tolerance of slight contamination by solids. They are used for pumping liquids for petrochemical process,for water supply and treatment,in irrigation,in district heating plans,in the patper and pulp industries, as marine ballast and cooling water pumps,in sea water desalination plants,for offshore duties.As well as being used for other similar usefulness. SHD pumps can also be used as energy recovery turbines.



Features



Construction:

a.The casing is axially split with the suction and discharge branches located in the lower half,so it allows the complete pump rotor with bearings to be removed for maintenance without disturbing the main pipework and valves.Short inspection and maintenance times.

b.Impeller is symmetrically arranged.Rotor is in hydraulic balance.

c.Double volute casing reduced radial thrust and bearing loads.

d.Large branches.Low flow velocities and high forces and moments accommodated.

e.Sizes of seal chamber comply with API682 specification.Seal chamber is designed to accommodate all single, tandem,dual and cartridge seal configurations. Cartridge seal is standard type.

f.Replaceable wear rings prevent the main components from being worn out.

g.Generous shaft diameter,small span. Reduce shaft deflection.Increase seals and bearing life.

h.Heavy duty rotor bearings. Special stiffness design makes the bearings run reliably.

i.Flexible spacer membrane coupling.

j.Optional instrumentation to monitor temperature,pressure and vibration,etc.

k.Welded common baseplate with drain rim.



Wide choice of hydraulics,good NPSHr performance, high effciency,wide perfect region, power saving and low consumption.

Reliability:Every product is well checked before shipment.

Manufacture: excellent equipment,high-class staff,top-ranking products.

Service:rapid service,lifetime maintenance.





Wooden case,by sea or by air



We can provide quality control record and report,such as ''main parts material physical and chemical properties analysis report'',

''rotor dynamic static balance report'',''hydrostatic test report'',''performance test report before delivery''



Customer is our center!we will make you relieve !Feel our reliable !Touch our reputation!Damei Kingmech Pump will always adhere to develop high quality pumps,



 guarantee the delivery time as well as shorten the time of inquiry reply.
