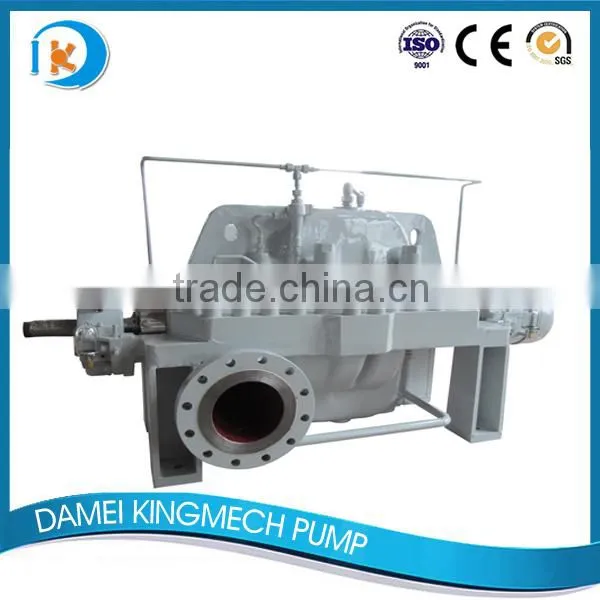

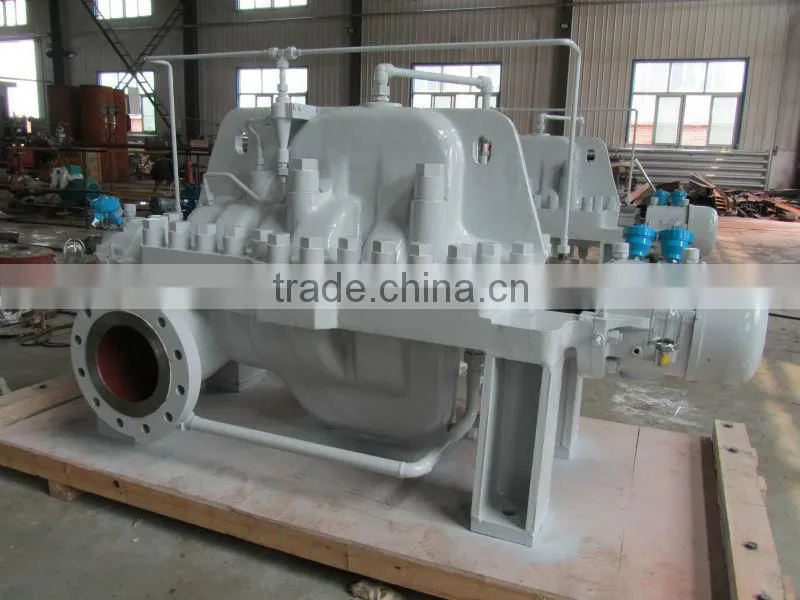

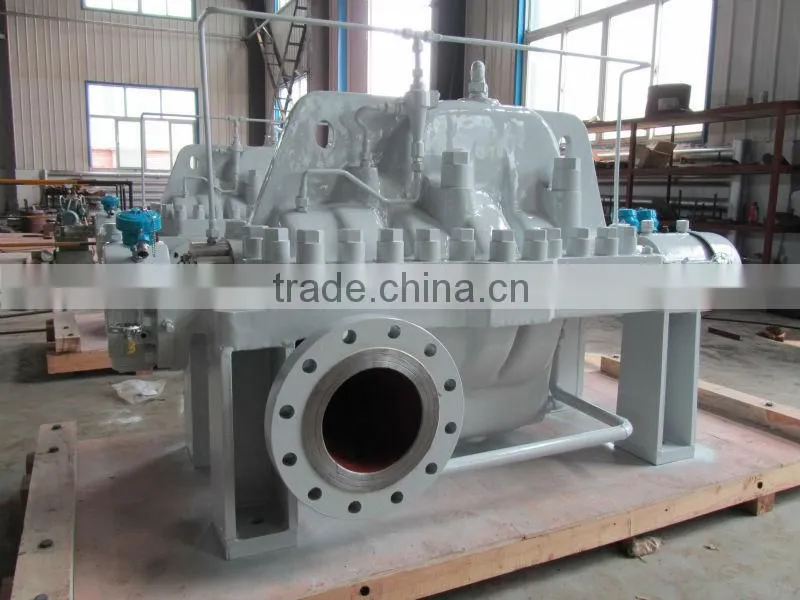

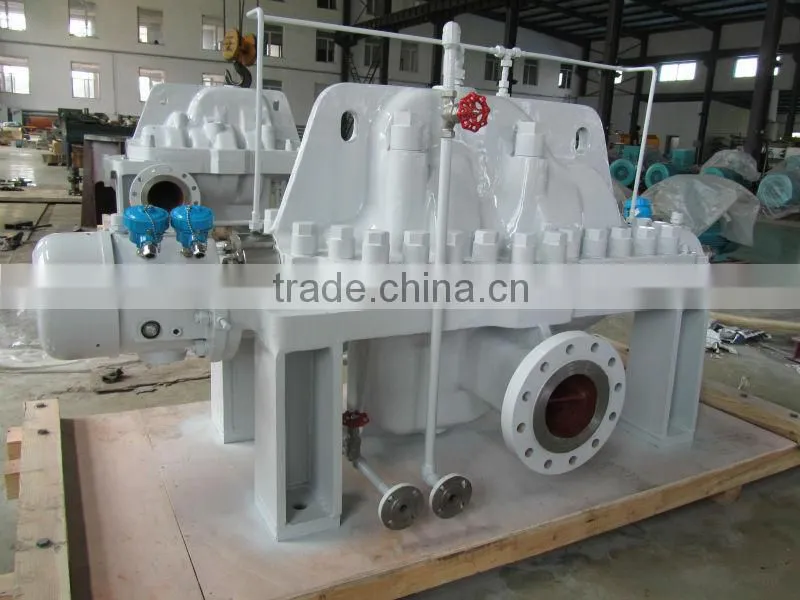

API610 Axially Split Multistage Water Supply Treatment Pump
US$ 4,000 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
DK
Model Number:
AMD
Payment & Shipping
Payment Methods:
Port of Shipment:
DALIAN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
API610 BB3 Horizontal Centrifugal Double Suction Chemical Pump for Heavy Duty Process ApplicationUS$ 4,000 - 8,000MOQ: 1 Set -
API610 BB3 Horizontal Multistage Double Volute High Head Low Flow Pump for Crude OilUS$ 4,000 - 8,000MOQ: 1 Set
-
API610 BB3 Horizontal Multistage High Head Low Flow Pump for Heavy Duty Process ApplicationUS$ 4,000 - 8,000MOQ: 1 Set
-
API610 Multistage Centrifugal Water Process PumpUS$ 1,000 - 2,000MOQ: 1 Set
-
API610 Multistage Centrifugal Clean Water TransferUS$ 1,000 - 2,000MOQ: 1 Set
Place of Origin
Hebei, China
Brand Name
DK
Model Number
AMD
Theory
Centrifugal Pump
Structure
Single-stage Pump
Usage
Other, Chemical liquid
Power
Hydraulic
Standard or Nonstandard
Nonstandard
Fuel
Other, electric
Pressure
High Pressure
Application
Other, chemical industry Petro-chemical
Company
Our Team&Factory
Our Service
1.Reply your enquiry in 24 working hours, any time you can contact me.
2.OEM, buyer design, buyer label services provided.
3.Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
4.we have the certification of ISO 9001
5.Special discount and protection of sales area provided to our distributor.
6.timely delivery
7.packing can make client brand.
8.Good after-sale service
Pump on Site
We have projects all around the world. Our pumps are popular among our clients.
Certification
Certification
Contact Us
Add: No.266 Tianshan Street Shijiazhuang Hebei China
Telephone: ++86 311 68058636/38/39
Fax: ++86 311 68058637
SKYPE:maria.li82
Product Description
Application
- Type MSH high pressure boiler feed pumps are used for feeding high pressure boiler of pumping high pressure clean water.
- The temperature of pumped media is not more than 210°C.
- Range of capacity: 100 to 580m³/h.
- Range of total head: 740 to 2150m.
Construction
- The pumps are sectional casing, multi-stage centrifugal pumps. The suction casing, stage casing and discharge casing are rigidly held together by the bolts. The joints between these casing are primarily sealed by means of metal-metal contact. Simultancously ,o-rings are used as auxiliary seals.
- The forged pieces are used for the suction ,stage and discharge casings of type MSHB pressure boiler feed pumps.
Shaft sealing
- The shafts of these pumps are sealed by soft-packing and cooling water . In the region of shaft sealing ,the pump shaft is protected by renewable sleeve.
Bearings and axial balancing device
- The rotating assembly is supported by sliding bearings on both ends of the pump shaft . Bearings of pump are forced-lubricated. The oil system is equipped for type DG pump. The axial thrust of rotor osis balanced by balance disc.
- And the thrust bearing is laso provided which is rsed to bear residral axial force caused by the change of working conditions.
Drive
- The pump is directly driven by the motor through the coupling. The gear, membrane coupling and hydraulic coupling can be
- used according to client’s requirements. The pump can be driven by turbine of motor.
- The rotating direction of pumps are clockwise when viewed fron the driving end.
Material
- Suction casing ,discharge casing, diffuser, and impeller: carbon steel of chrome steel.
- Shaft, wear ring and diffuser bush: chromic alum steel of chrome steel.
