Home > Products > Construction Machinery > 2016 Hoist Tower Crane
2016 Hoist Tower Crane
- Qingdao/Shanghai/Guangzhou
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
Product Details
| Condition | New | Application | construction hoist | |
| Rated Loading Capacity | 8T | Max. Lifting Load | 8T | |
| Max. Lifting Height | 200m | Span | 60m | |
| Place of Origin | Henan, China | Brand Name | SINCOLA | |
| Certification | ISO,CE | Warranty | 12months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Nude Package in 40HQ
Product Description

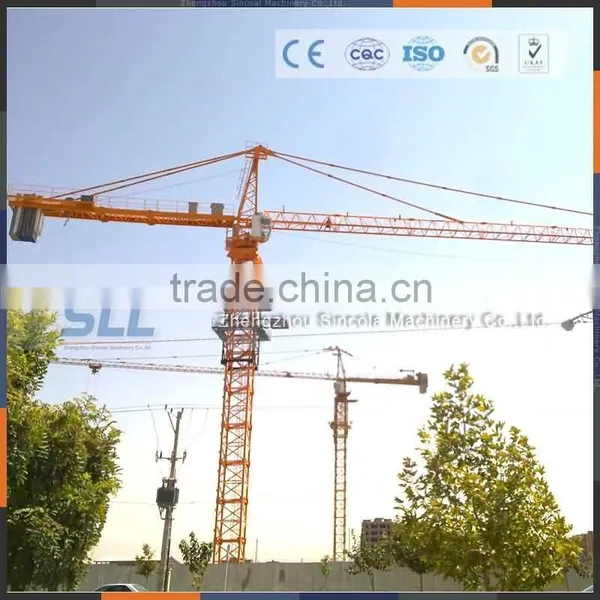

2016 hoist tower crane
Track traveling type tower crane
Zhengzhou Sincola Machinery Co.,Ltd. Track type tower crane is one of new products of our company. It's a crane whose traveling mechanism is mounted on guide track basing on the cross beam of stationary tower crane QTZ160, QTZ125, QTZ80 and QTZ63.
Model | QTZ80(5512) | QTZ63(5013) | QTZ63C(5211) |
Amplitude (M) | 55 | 50 | 52 |
Independent Height (M) | 46 | 41 | 40 |
Max. Height (M) | 151 | 141 | 140 |
Max. Lifting Capacity (T) | 8 | 6 | 6 |
Assistant Support Frame | 5 | 4 | 5 |
Main Material | 135×135×12 (square steel tube) | 135×135×10 | ∠160*16 |
Standard Mast Section Dimension | 1.835×1.835×2.5 | 1.835×1.835×2.5 | 1.615×1.615×2.5 |
Lifting Speed (a=2) (m/min) | 100/50 | 80/40/8.5 | 80/40/8.5 |
Slewing Speed (r/min) | 0.65 | 0.64 | 0.64 |
Trolley Travel Speed ( m/min) | 60/30/10 | 42/21 | 42/21 |
Max. Lifting Moment (KNm) | 800 | 630 | 630 |
Working Temperature(°C) | -20~+40 | -20~+40 | -20~+40 |
Undercarriage Form | Type A. Cross-shaped beam with slanting strut and ballast Type B. C, ro, ss, -sh, aped beam with slanting strut but no ballast | Type A. Cross-shaped beam with slanting strut and ballast Type B. Cross-shaped beam with slanting strut but no ballast | Type A. #-shaped Beam without ballast Type B. Cross-shaped beam with slanting strut and ballast |
Model | QTZ50(4810) | QTZ40(4708) | QTZ40(4708) |
Amplitude (M) | 48 | 47 | 45 |
Independent Height (M) | 35 | 32.5 | 32.5 |
Max. Height (M) | 140 | 100 | 100 |
Max. Lifting Capacity (T) | 6 | 4 | 4 |
Assistant Support Frame | 4 | 4 | 4 |
Main Material | 135×135×10 | 160×160×12 | 160×160×12 |
Standard Mast Section Dimension | 1.835×1.835×2.5 | 1.5×1.5×2.5 | 1.5×1.5×2.5 |
Lifting Speed (a=2)(m/min) | 76/36/8 | 69.4/34.7 | 76/38/10 |
Slewing Speed (r/min) | 0.64 | 0.62 | 0.77 |
Trolley Travel Speed (m/min) | 42/21 | 38/19 | 21.6/43.2 |
Max. Lifting Moment (KNm) | 500 | 400 | 400 |
Working Temperature (°C) | -20~+40 | -20~+40 | -20~+40 |
Undercarriage Form | Type A. Cross-shaped beam with slanting strut and ballast Type B. Cross-shaped beam with slanting strut but no ballast
| Type A. Cross-shaped beam with slanting strut and ballast Type B. Cross-shaped beam with slanting strut but no ballast Type C.#-shaped beam without ballast | Type A. Cross-shaped beam with slanting strut and ballast Type B. Cross-shaped beam with slanting strut but no ballast Type C.#-shaped beam without ballast |
Company Profile
Zhengzhou Sincola Machinery Co., Ltd. is a high-technology, modern enterprise professionally engaged in the R&D and manufacturing of full automatic dry mortar plant and semi automatic dry mortar production line 1-5tph dry mortar plant and shotcrete machine plaster machine and mortar pump,wall rendering machine,concrete pump etc.
Contact Us
- Zhengzhou Sincola Machinery Co., Ltd.
- Contact nameBella Lee Chat Now
- Phone86-371-56053450
- AddressDongfeng Road No.18 Zhengzhou, Zhengzhou, Henan
