Help CenterHigh Quality and Reliable Concrete Batching Plant/ Concrete Batching Mixing Plant for Sale in Africa, Nigeria and Others Country
Related Products
-
HZS60 Concrete Batch Plants/beton Batching Plant /ready Mixied Concrete Batching PlantUS$ 10,000 - 1,000,000MOQ: 1 Set -
Sincola Full Automatic Concrete Batching Plant Made in ChinaUS$ 10,000 - 1,000,000MOQ: 1 Set
-
HZS30/40 /60/80 Concrete Batching Plant With Quality Assurance and Good ServiceUS$ 10,000 - 1,000,000MOQ: 1 Set
-
Concrete Mixing Plant ,60m3/h Concrete Batching Plant,HZS60 Concrete PlantUS$ 10,000 - 1,000,000MOQ: 1 Set
-
Portable Concrete Batching Plant,low Cost Concrete Batching Plant,price of Concrete Batching PlantUS$ 10,000 - 1,000,000MOQ: 1 Set
Model |
HZS60 |
Rated Productivity |
60m3/h |
Main Mixer |
JS1000 |
Max. Aggregate Diameter |
80mm |
Capacity of Aggregate Bin |
3×8.38m3 |
Aggregate Conveying Mode |
Flat Belt Conveyor |
Aggregate Weighing Precision |
3X 3000Kg ±2% |
Cement Weighing Precision |
1500Kg ±1% |
Fly Ash Weighing Precision |
600Kg ±1% |
Water Weighing Precision |
600Kg ±1% |
Additive Weighing Precision |
50Kg ±1% |
General Power |
120Kw |
Total Weight |
48T |
Outline dimension (L*W*H) |
33.8m×14.8m×10.8m |
Discharging Height |
3.8 m |
Powder Silos (for customers choice) |
The capacity and number of silos as well as the configuration of silo accessories vary with customers’ demands. |
Screw Conveyors (for customers choice) |
Usually, φ273mm screw conveyors are used. |
1. twin shaft concrete Mixer JS1000
2. aggregate batcher PLD1600 with 3 storage bins;
3. cement silo: 100T boltd type (it depends on the customer's choice);
4. screw conveyor: 273mm*8m
5. cement, water, fly ash and additive scales;
6. computer controlled automatic control system.

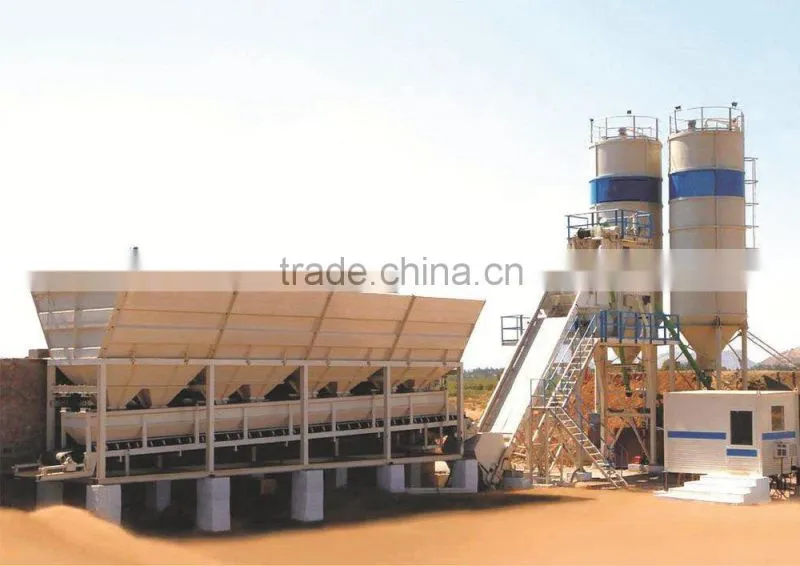

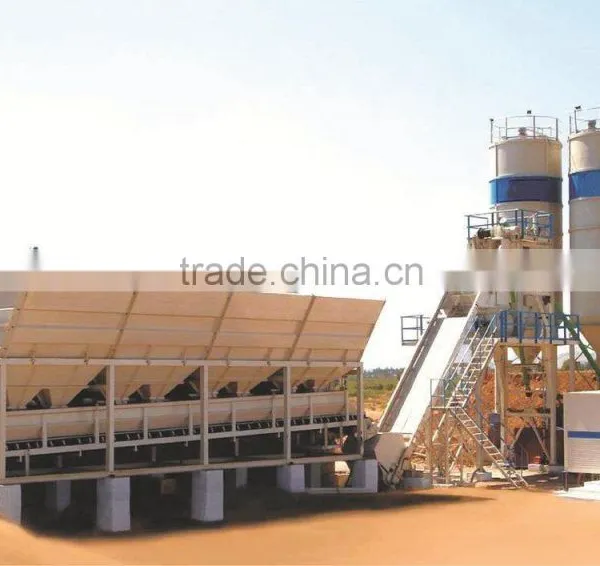

HZS60 concrete batching plant is composed of material supply,batching system,mixing,electrial control and steel structure. concrete mixer is ideal concrete equipment for building project, building ground and precast product factory. The main characteristic is:
1.It adopts knockdown structure and blocking. It is combine mode.
2. Concrete batching plant adopts JS1000 concrete mixer, it has good mixing quality and high efficiency.
3. Concrete Batching Plant is measuring nicety and high produce efficiency.
4.The forced water supply system spray equably and has washing function for the mixing system.
5. Concrete Batching Plant adopts the ectctrial weigher to measure all the aggregate,cement,water,liquid additive.
6.The electrical system adopts import parts and has credibility performance.
Any questions, Please feel free to ask me.
