Specifications
100% original German Deutz engine;Stamford UCI224D alternator;
UK DEEPSEA control;
Euro CE, ISO9001 approved

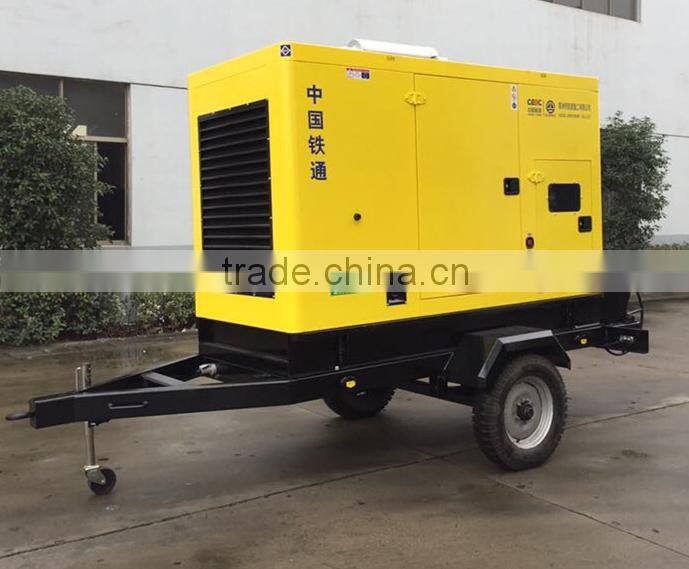

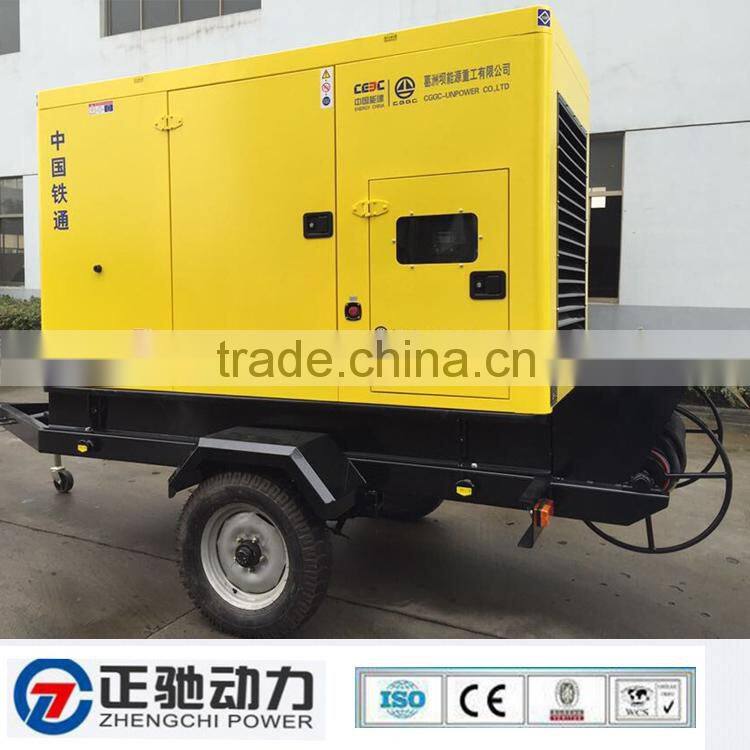

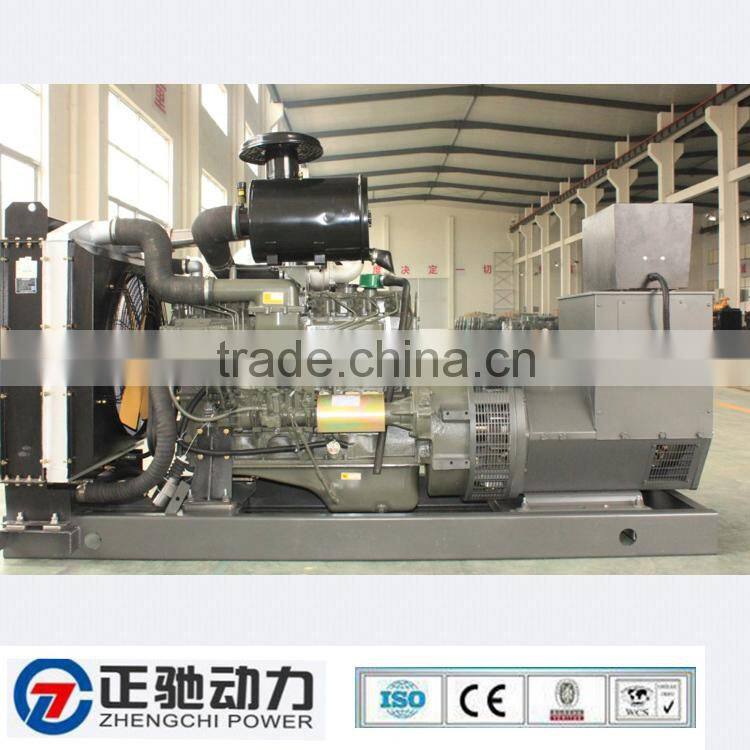

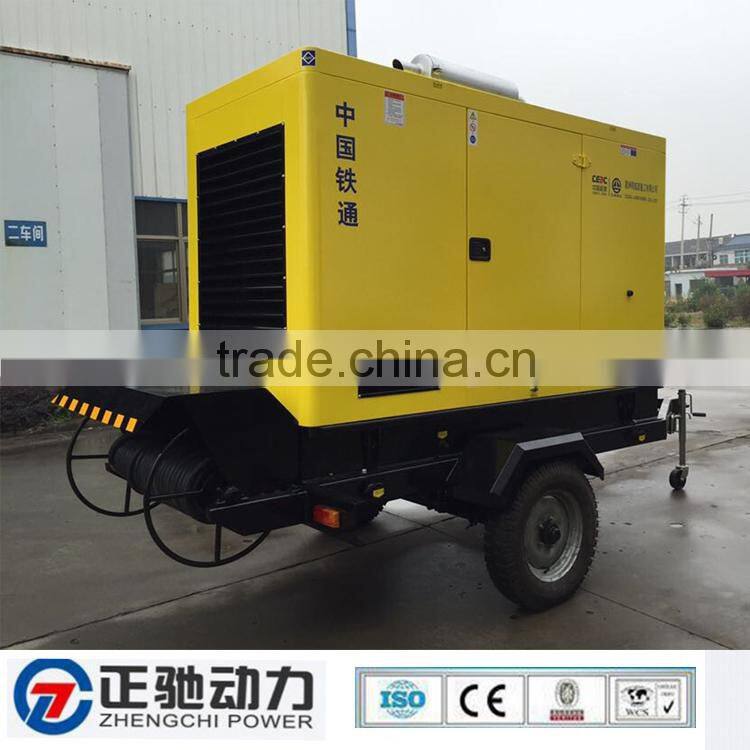

50 kva diesel generator example photos :
50 kva diesel generator specifications:
MODEL |
ZCDL-D50 |
Standby Power(50Hz) |
44KW /55KVA |
Prime Power(50Hz) |
40KW /50KVA |
ENGINE DATA | |
Brand and Model: |
Deutz TD226B-3D |
Engine Power: |
46 KW |
Air Intake System: |
Turbo |
Cylinder Arrangement: |
3- Cylinder in line |
Displacement: |
3.12 L |
Bore and Stroke: |
105×120 mm |
Compression Ratio: |
16:1 |
Rated RPM: |
1500rpm |
Lubricating Oil Consumption: |
≤1.36 g/kwh |
Exhaust Air Flow: |
60 m3/min |
Air Consumption: |
2.8 m3/min |
Exhaust Gas Flow: |
6.3 m3/min |
Exhaust Gas Temperature: |
455 ℃ |
Cooling System : |
Water-Cooling |
Total Lubrication System Capacity: |
7.25 L |
Coolant Capacity (engine only): |
15.5 L |
Fuel Consumption at 100% Load : |
9.6 L/hr |
Fuel Consumption at 110% Load : |
10.6 L/hr |
Governor Type: |
Mechanical controller, electricity-magnet valve control switch |
Start Mode: |
24V Direct Current Start, Including battery |
ALTERNATOR DATA | |
Structure: |
Single Bearing Alternator |
Short Circuit Protection: |
MCCB Air Switch |
Rated Power: |
40 KW |
Connecting Type: |
3 Phase and 4 Wires, “Y” type connecting |
Power Factor: |
0.8 |
Protection Grade: |
IP22 |
Altitude: |
≤1000m |
Exciter Type: |
Brushless, self-exciting, with AVR |
Insulation Class, Temperature Rise: |
H/H |
GENERATING SET DATA | |
Voltage Regulation: |
≥±5% |
Voltage Regulation, Stead State: |
≤±1% |
Sudden VoltS Warp(100%): |
≤+25% |
Sudden Voltage Warp(Sudden Increase): |
≤-20% |
Voltage Stable Time(100% ): |
≤6S |
Voltage Stable Time(Sudden Increase): |
≤6S |
Frequency Regulation, Stead State: |
≤5% Adjustable |
Frequency Waving: |
≤0.5% |
Sudden Frequency Warp(100%): |
≤+12% |
Sudden Frequency Warp(Sudden Increase): |
≤-10% |
Open Type Size: |
1810 *750 *1480(mm) |
Open Type Weight: |
760 kg |
Silent Type Size: |
2240 *1100 *1700(mm) |
Silent Type Weight: |
1200 kg |
CONTROL SYSTEM | |
Manufacturer: |
DEEP SEA ELECTRONICS PLC (UK) |
Model: |
DSE501K |
Type: |
Manual Operation |
Operation: |
Via a three position key switch |
Alarm Protect: |
Low Oil Pressure, High Engine Temperature, Auxiliary |
50 kva diesel generator Packaging: nude or plywood package
50 kva diesel generator generator Shipping: 15 days after deposit
(1) Global service after sale (spare part, maintenance, local service)
(2) 50 kva diesel generator Warranty Time: 1 year or 1000 running hours, which occurs the first
Yangzhou Zhengchi Power Equipment Co, Ltd, locates in Yangzhou City, Jiangsu Province, which is the manufacturing centrality of 50kva silent diesel generator set industrial zone in Southeast China, Zhengchi Power owns 3 subsidiary factories, one is to produce brushless alternator, second is to produce silent canopy and trailer, third is to assemble diesel generator set, registered capital with 61000000.00 RMB.
Zhengchi Power is specialized in manufacturing diesel generator 50kva and supplying various power products, like engine parts, controllers, ATS etc. Zhengchi Power manufactures OEM generator powered by Cummins, Deutz, Volvo, MTU, Doosan engines and Stamford, Leroy Somer, Mecc Alte alternators. Zhengchi Power Gensets range from 7KW to 2400KW, 50Hz or 60Hz frequency, with open type, silent type, trailer type and containerized type, etc. All products are manufactured in accordance with the ISO8528 production standard to assure them of best quality produced and accepted for export to the international market.
Besides manufacturing OEM 40kw Diesel Generator , we also supply various power products to meet customer one-stop solutions, such as transformers, power cables, control panel, generator spare parts, field service, etc.
Zhengchi Power commitment is to provide power products to meet customer’s requirements, and create more value for users, make contributions to social development by providing power.
Open, efficiency, and cooperation are values of Zhengchi Power. We keep an open mind; emphasize operational efficiency, advocate teamwork, and respect for professional accumulation, committed to building a professional, first-class brand in electrical products and engineering equipment.
(1) Your company is factory or Trade Company?
Answer: We are professional diesel generator manufacturing factory.
(2) Your diesel generator power range?
Answer: Now we mainly produce 7KW to 2400KW deutz generator price.
(3) Which brand Electrical Generator you produce?
Answer: Now we produce USA Cummins brand deutz generator price, Sweden Volvo Generator, Korea Doosan diesel generator, German Deutz Electrical Generator, and China local brands' generator.
(4) Where is your main market?
Answer: We mainly export Electrical Generators to Africa, Middle East, Asia, and South Korea...
50 kva diesel generator 50 kva diesel generator 50 kva diesel generator 50 kva diesel generator 50 kva diesel generator 50 kva diesel generator 50 kva diesel generator 50 kva diesel generator 50 kva diesel generator 50 kva diesel generator 50 kva diesel generator 50 kva diesel generator

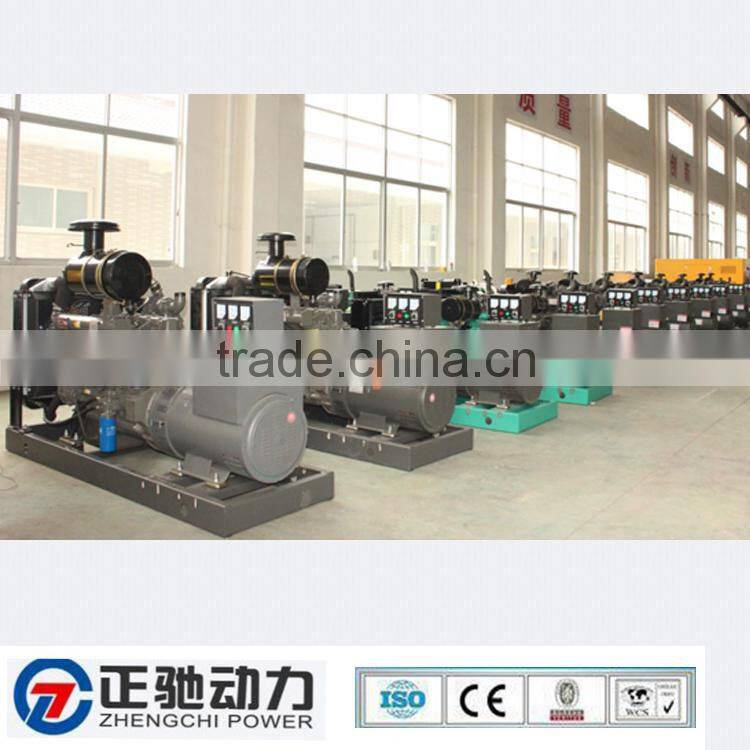

Zhengchi Power Workshop
