High Quality 30m3/h Concrete Spraying System for Tunnels, Mine, Construction etc
Concrete Wet Shotcrete Machine WITH Robot Arm
Concrete Spraying System - Robot Arm Concrete Spraying .

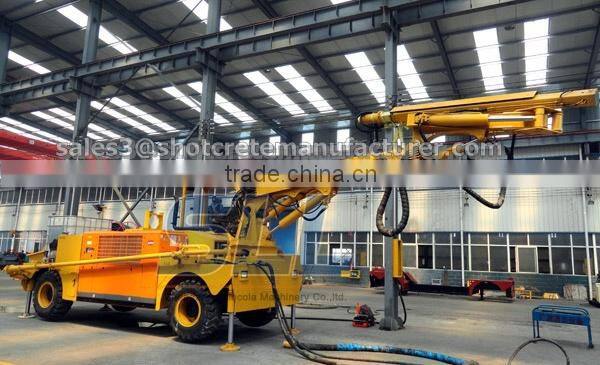

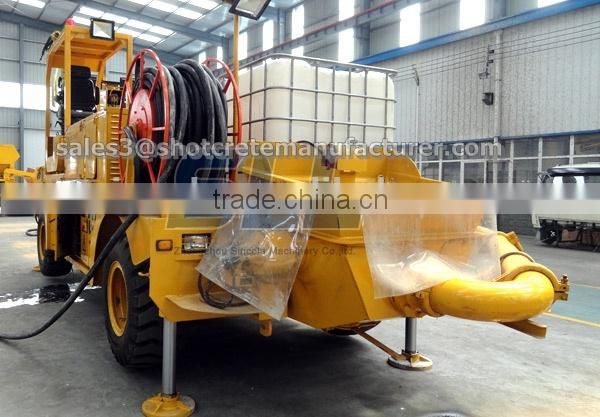

Robotic Shotcrete Machine SKC30
Application: The SKC series wet shotcrete system equipments are used for wet concrete pumping,spraying in mines, tunnels and outdoor construction etc. The mahcine consist of Chassis,concrete delivery system, spraying system,Accelerator Adding system. And with robot arm, the machine can spraying concrete automatically.
Concrete Spraying System SKC30
| Technical Parameters of Robotic Shotcrete Machine SKC30 | |||||||
| No | Item | Data | |||||
| 1 | Whole machine | weight | 8T | ||||
| speed L/H | 5/15 Km/h | ||||||
| slope climbing capability | 25° | ||||||
| ground clearance | 245mm | ||||||
| traveling size | 5900x2000x2650(mm) | ||||||
| Moving mode | all hydraulic wheel type | ||||||
| 2 | power | engine | 60KW/2200rpm water cold,diesal | ||||
| motor | 45kW | ||||||
| 3 | Spraying System | boom type | fold,turn,telescopic( 3 section) | ||||
| max spray height | 11m | ||||||
| max spray width | 19m | ||||||
| max spray depth in front | 9.6m | ||||||
| the fold boom length | 2.48m | ||||||
| telescopic boom turn | 360° | ||||||
| telescopic boom length | 2.9m | ||||||
| nozzle rotary angle | 360° | ||||||
| nozzle swaying angle | 240° | ||||||
| spray pipe diameter | Φ80mm | ||||||
| 4 | Pump system | Theoretical pump capacity | 8~20m3/h (manual ) | ||||
| Theoretical max output pressure | 8MPa | ||||||
| Max aggregate material diameter | ≤16mm | ||||||
| pipe diameter | Φ125mm change toφ80mm | ||||||
| concrete cylinder diameter | φ140mm | ||||||
| concrete cylinder travel distance | 600mm | ||||||
| cylinder diameter(Vat/pole) | Φ80/Φ50 | ||||||
| cylinder travel distance | 600mm | ||||||
| concrete capacity | 300L | ||||||
| feeding position height | 1200mm | ||||||
| 5 | Dozing Accelerating Chemical System | flow rate | 60~600L/h | ||||
| pressure | 12bar | ||||||
| Chemical capacity | 200L | ||||||
| 6 | electrical hydraulic system | electric conponents:siemens,Omron;hydraulic conponents:Rexroth, danfoss | |||||
Applications & Features Of SKC30 Concrete Shotcrete Spraying System:
1. For use in mines, tunnels and outdoor construction.
2. With robot telescope arm, Pumping and Spraying concrete automatically.
3. An automatic system for high precision synchronization between concrete pump and the additive dosing unit
4. All the machine functions are available via the remote control, which facillitates the operator’s work.
5. The six wheel drive increase its perfect manoeuvrability in difficult driving situations.
Robot Shotcrete Machine SKC20 Features:
1. Spraying System
Intelligent spraying control, high accuracy, wide spray area, minimum spray rejection.
2. Working range
a. long-reach spray boom allows to work at long distance and great height.
b. 3-PRS spray head gives full spherical spray area without blind spot.
c. Full hydraulic intelligent spray boom guarantees no interference when all boom sections working at the same.
3. Chassis
a. Rigid chassis, internal combustion – hydrostatic transmission, 4-wheel drive, 4-wheel steering with swiveling driver’s cab.
b.hydraulic supporting leg hold the vehicle steady at all times, absorb forces when material blending, pumping and spraying.
4. Concrete delivery system
a.Advanced undamped hydraulic system with 1200mm stroke length offers high and steady pumping pressure, also reduce power consuming and parts wearing.
b.Pumping capacity range from 0 to 60 cubic meters. It can be adjusted as per customer requirements to satisfy complicated working conditions. (Recommend capacity range is 4 to 28 cubic meters)
5. Setting Accelerator Adding system
a. Reliable frequency convert technology complied with PLC and computer control offer a setting control of adding rate depending on concrete out put.
b. Auto-adjusting frequency control offers motor speed change and auto dosing according to concrete delivery amount.
6. Complete machine
Minimum height and rotation radius, suitable for space limited work sites
FAQ:
1. Full Automatic one set concrete spraying machine for mine, your machine, is it suitable for the project?
Yes, Our concrete spraying system, It is a whole unit of pumping,spraying.
With robot telescope arm, you just contral the mahcine, it will automaticlly working for the project.
2. How much is automatic rendering machine price?
It's cheaper than other in the market. The detail price, you can contact me by email,I'll send you according your requirement.
3. I need the machine for tunnel construction spraying concrete, is it suitable for the project?
Of course, our the robot shotcrete machine, is a professional concrete pumping spraying machine for mines,tunnels,etc.
4. Please tell me your requirement of output, convey distance, or other related requirement.
I will recommend you suitable machine mdel and good price.
5. Our company have some high quality rendering machines for sale,do you want to to buy?
Contact me,I'll give a reasonable quotation.
More question, please contact me by following ways in time.
If you want to know more information of Concrete Spraying System, please contact me.
In addition, Skype: sincolasale
