Specifications
mobile cement silo storage silo1. Bulk cement storage silo
2. Easy loading,Easy fixed.
3. Weight:8ton
Model |
Tanker Diameter |
Tanker Total Height |
Matched screw conveyor |
20Ton |
2.2m |
5.7m |
LSY163 |
30Ton |
2.4m |
7m |
LSY163 |
40Ton |
2.6m |
7.6m |
LSY163 |
50Ton |
3m |
7.6m |
LSY180 |
80Ton |
3m |
11m |
LSY180 |
100Ton |
3m |
12.5m |
LSY230 |
150Ton |
3m |
16.5m |
LSY230 |
200Ton |
4.5m |
19m |
LSY230 |
300Ton |
5.5m |
21.3m |
LSY230 |

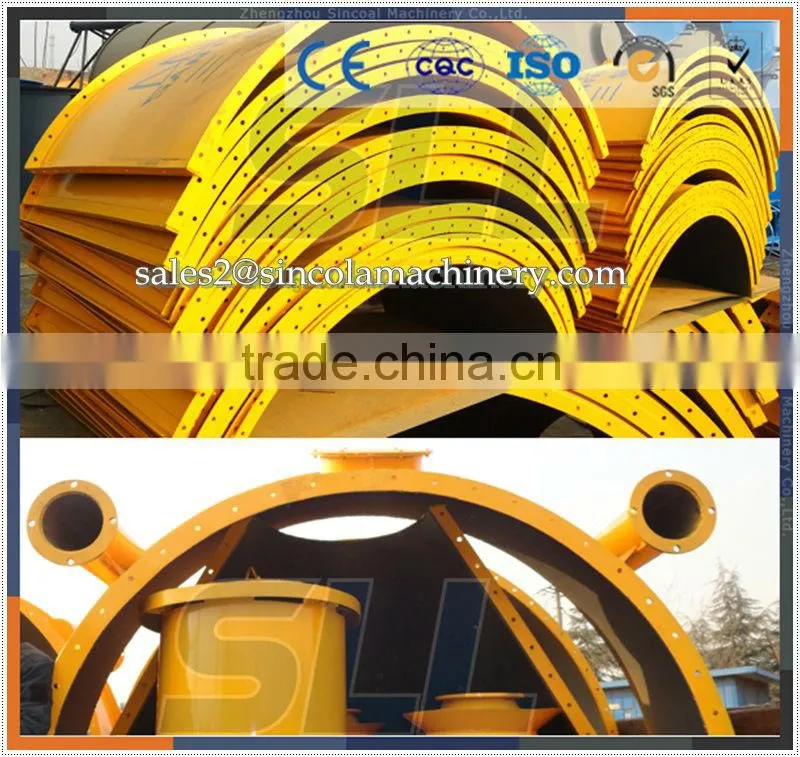

Sincola 100 ton mobile cement silo, storage silo
We Supply silo storage bulk storage silo for sand with special and advanced technology. During construction, rolling sheet with width of 495mm is rolled to required shape from coil opening machine to forming machine and then is bended and bitten to screw embossed strip with width of 30mm-40mm around outside of steel silo. Inside steel silo, the stiffener is welded with embedded plates to improve the strength of steel silo;
Space structure technology is used in design of the powder silo framework to ensure the stability of big span, the angle is 25°with good strength.Equipment positioning: According to the diameter of steel silo, fixing the position of the equipments;
Rolling silo: After fixing the position of the equipments, rolling silo to 2m high;
Install silo roof: After cutting silo roof level with plasma cutter, installing the silo roof;
Lifting silo: Lifting the rolling silo to required height;
Fixing silo: Taking out the machines, fixing the silo with embedded plate;
Installing other facility: The user design and installation of the selected form object;
Will be on the loose coil winding machine loose on paper, through the coil bending machine, and the initial processing of forming the same time, the material bent in the required curvature, and then the crimping machine to bend with the good material to bite mouth, rolling forming, spiral upward through the bearing bracket lifting into the cylinder.
la can provide cement silo accessories together with silo, such as screw conveyor, arch breaker device, butterfly valve, relief valve, Supply silo storage bulk powder storage silos level indicator, dust filter etc.
Zhengzhou Sincola Machinery Co.,Ltd is a stated- designated manufacturer and exporter of road and building construction machineries. We are the one of the big manufacturer and supplierin China .
Our products are Shotcrete machinery and Concrete Pump,Plaster Machine,Mortar Pump,Spraying Machine,Industrial Hose Pume,Grouting Pump,Automatic rendering machine. Also we are the manufactur,supplier and exporter of semi-automatic and full-automatic dry motar mixing plants.large and medium size of concrete mixing plants.
Our company engaged an international expert guidance, the study has been made a number of patents.Our technical experts from the United States, Germany, Italy and other multi-national team of experts.
Our products are well known to international market such as Russia, UzbekistanRussia,Uzbekistan,Cyprus,Algeria,Cameroon,Macedonia,Malaysia,Austrialia,Yemen,Oman etc.
Our products have widely been applying in construction, railway and super highway engineering, underground engineering, tunneling, mining operation,hydropower projects and slope stabilization.
Service:
We keep the service idea of "creat more value to customers" , treating our customers with all our hearts, and meantime lawfully running it. Our customers distribute in over 120 countries in Asia, Europe, Middle east,Oceania and America. We apply our professional knowledge and full global service capability to ensure the best results for our customer's business...
