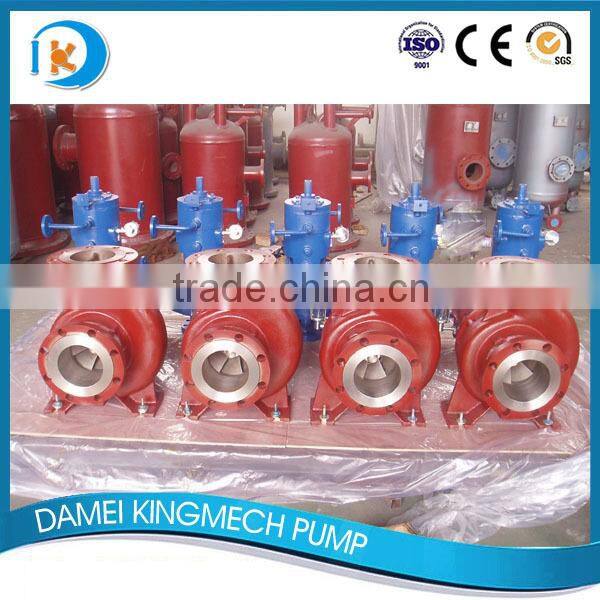

OH1/OH2 API610 Chemical Centrifugal Oil Pump With Material Titanium Alloy Factory

 Description

Horizontal, single stage, centrifugal pumps,design of back draw out, according to  API610 (7^thedition ) and ( light /Middle station ), < GB/T5656-94 centrifugal pump technology specifications (Ⅱseries ) and ISO5199 (Ⅱseries) > of VDMA 24297 requirement.

Application ranges

For pumping clean, slightly polluted, cold, hot, chemically neutral or aggressive media.

n        In refineries, petrochemical industry, coal processing and low temperature engineering.

n        In chemical industry, paper industry, pulp industry, sugar industry and general processing industries.

n        In water industry, seawater desalination plants.

n        In heating and air-conditioning.

n        Power plants.

n        In environmental protection engineering.

n        In ship and offshore industries.

Operating data

Sizes       DN      25 up to 400mm

Capacities   Q       up to 2600m³/h

Heads       H       up to 300m

Operating

Pressures   P     up to 2.5Mpa (depending on material and working temperature, refering to Chart P-T)

Operating

Temperatures  t     -80℃ up to +300℃

Ordering Instructions

1.Pump size,material,type of shaft sealing as well as motor should be determined according to service condition. And capacity, head , suction pressure, NPSHa,the name of medium,specific gravity and temperature of medium should be specified when ordering.

2.If special type motor is required, the customers should specify the explosive-proof grade,power and voltage, etc.

3.If mechanical seal is selected the type of mechanical seal and sealing flush should be specified by customers when ordering.

4.The date listed in catalog can be selected by customers among the range of the pump performance,and type of the impeller or the performance can also be specified by customers.

5.This catalog is a general presentation. It does not provide any warranty or guarantee. Please, contact us for a description of the warranties and guarantees along with our products. Directions for use and safety will be given separately. All information herein is subject to change without notice.
