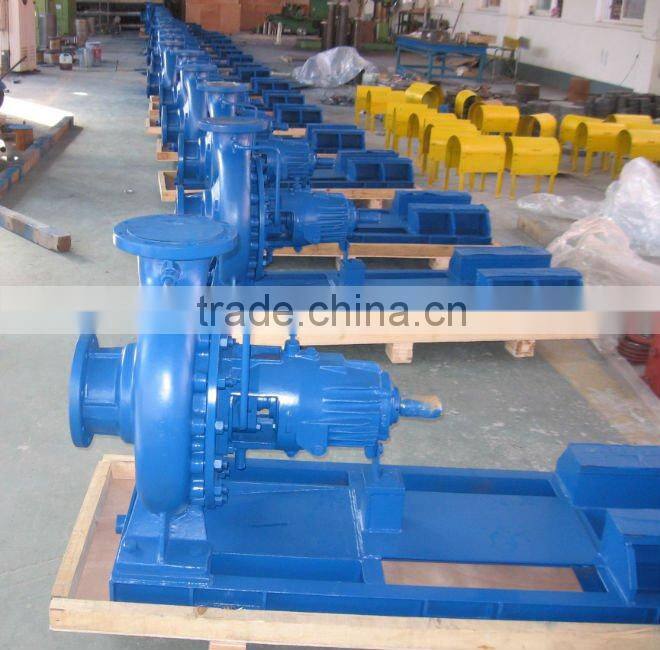

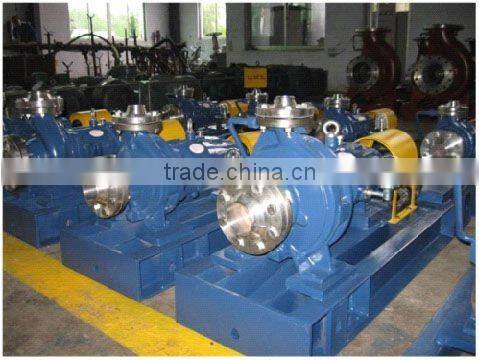

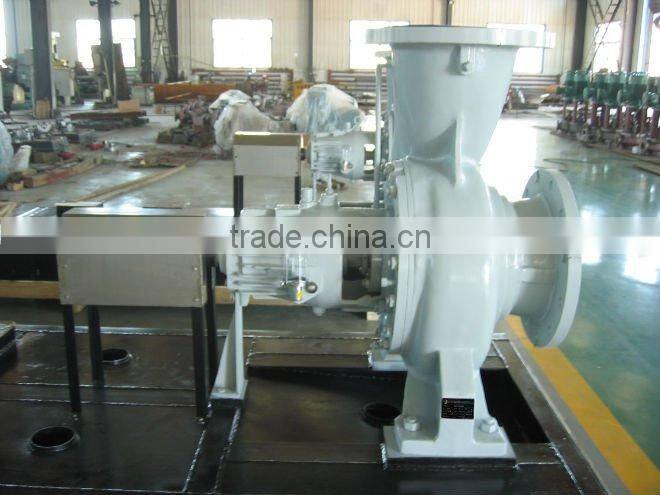

API610 OH1 Centrifugal Pumps

FOB Price

US$ 1,000 - 10,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

foot mounted, overhung single stage, end suction, designed according to API 610. with common and special materials

Product Description

Type ZAD pump are foot mounted, overhung single stage end suction pump designed according to API 610.

Size: 1-16 inches

Capacity: 0-2600 m3/h

Head: 0-240m

Temperature: -80-300 °C

Material: Cast steel, SS304, SS316, SS316Ti, SS316L, CD4MCu, Titanium, Titanium Alloy, Hastelloy Alloy

No.	Parameter		Requirements
1	FUNCTIONAL
1.1	Q	m3/hour
1.2	H	m
1.3	The pressure at the inlet / outlet (no more)	Kg s/sm2
1.4	NPSH (no more)	m
1.5	For a semi-submerged (submersible) pumps:
1.5.1	The immersion depth (distance from the surface of the liquid to the suction port)	m
2	PUMPED CONTENT
2.1	Name of fluid
2.2	Solids content:
2.2.1	volume concentration	%
2.2.2	The dimensions of the particles (abrasive / not abrasive)	mm
2.3	Operating temperature, tp	0C
2.4	Viscosity (kinematic) at tp	sSt (mm2/s)
2.5	Density at tp	kg /sm3
3	MATERIAL RESISTANT to the fluid
	-
4	SHAFT SEAL
4.1	Gland single / double (C / SD)
4.2	Mechanical Single / Double (5/55)
5	CONDITIONS OF USE (SETUP)
5.1	Climatic performance and category of accommodation during the operation in accordance with GOST 15150-69
5.2	Class of Explosion and fire zone placement of RB
5.3	The need to supply the cooling / a heating fluid
6	DRIVE
6.1	Voltage, number of phases
6.2
7

Packaging & Shipping

wooden case or clents advised, by sea or air
