Home > Products > Ungrouped Pumps > Popular DC brushless water pump for irrigation system
Popular DC brushless water pump for irrigation system
- 8000 Set / Sets per Month
- Ningbo / Shanghai China
- T/T Credit Card
- Economic price 100w 200w 300w 400watt ABS Housing Solar Cell All In One Integrated Solar Street Light
- Wall Mounted Lifepo4 51.2v 100ah 200ah Lfp battery for Solar System
- 10kwh 20kwh Home Solar Lithium 48v 200ah LiFePO4 Battery
- Residential 5kw Complete Solar Panel Kit For Home Solar Power System With Lithium Or Lead Acid Battery
- Home Hybrid Solar 10KW 40KW 50KW Whole Set Kit Solar Energy System Home Hybrid Solar Power System
- TENTEK TON-5150S stackable solid-state Lithium battery
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Soular | Model Number: | dc solar pump |
Specification: | Normal | Application: | Home | Output Voltage (V): | DC24V - DC 120V |
Load Power (W): | 80w - 30kw | Solar Power (W): | 100w - 2000W | Work Time (h): | 24 Hours |
Product Description
Popular DC brushless water pump for irrigation system
( 5 Years Warranty )
( Submersible Solar Water Pump )
Why Choose to Cooperate with us ?
DC Submersible Solar Pump :
It can be used to transfer clean water or other liquids similar to water in physical and chemical properties. It is suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
MOTOR
Submersible Solar Pump (Screw Type)
Model | Screw / Impeller | Voltage (V) | Power (W) | Max. Flow (M³/H) | Max. Head (m) | Outlet (Inch) | Diameter* Length (mm) | Weight (Kg) |
3SPS0.72/20-D12/80 | Stainless steel Rotor | 12--26 | 45-150 | 0.72 | 20 | G0.75" | 76*400 | 6.5 |
3SPS0.76/28-D12/120 | 12--26 | 120 | 0.76 | 28 | G0.75" | 6.7 | ||
3SPS0.86/38-D12/150 | 12--26 | 150 | 0.86 | 38 | G0.75" | 6.8 | ||
3SPS1.0/30-D24/80 | 16-36 | 45-150 | 1 | 30 | G0.75" | 7 | ||
3SPS1.3/50-D24/140 | 16-36 | 80-200 | 1.3 | 50 | G0.75" | 7.2 | ||
3SPS1.8/80-D24/210 | 16-36 | 100-270 | 1.8 | 80 | G0.75" | 7.5 | ||
3SPS1.8/100-D36/270 | 24-48 | 140-350 | 1.8 | 100 | G0.75" | 8 | ||
3SPS1.8/120-D36/500 | 24-48 | 320-800 | 1.8 | 120 | G0.75" | 9 | ||
3SPS2.3/140-D48/750 | 36-72 | 480-950 | 2.3 | 140 | G0.75" | 9 | ||
3SPS2.3/160-D72/1000 | 48-96 | 600-1200 | 2.3 | 160 | G0.75" | 9.5 | ||
3SPS2.3/180-D72/1300 | 72-144 | 800-1500 | 2.3 | 180 | G0.75" | 9.5 | ||
4SPS3/60-D36/500 | 24-48 | 300-700 | 3 | 60 | G1" | 100*480 | 10 | |
4SPS3.6/80-D48/750 | 36-72 | 450-1000 | 3.6 | 80 | G1" | 10.5 | ||
4SPS4/100-D72/1000 | 48-96 | 600-1300 | 4 | 100 | G1" | 100*550 | 13.5 | |
4SPS4.2/120-D72/1300 | 72-144 | 800-1550 | 4.2 | 120 | G1" | 14 |
Submersible Solar Pump (Centrifugal Type )
Model | Impeller | Voltage (V) | Power (W) | Max. Flow (M³/H) | Max. Head (m) | Outlet (Inch) | Diameter* Length (mm) | Weight (Kg) |
4SPSC5.0/28-D24/250 | Stainless steel | 18-26 | 120-360 | 5 | 28 | G1.25" | 100*540 | 12 |
4SPSC5.5/38-D36/400 | 24-48 | 200-500 | 5.5 | 38 | 100*650 | 12.5 | ||
4SPSC5.5/58-D48/750 | 36-72 | 450-900 | 5.5 | 58 | 100*680 | 13.5 | ||
4SPSC6.0/72-D72/1000 | 48-96 | 600-1200 | 6 | 72 | 100*740 | 15.5 | ||
4SPSC6.5/98-D72/1300 | 72-144 | 800-1500 | 6.5 | 98 | 100*880 | 16.5 | ||
4SPSC10/30-D48/750 | 36-72 | 450-900 | 10 | 30 | G1.5" | 100*540 | 13.5 | |
4SPSC10/44-D72/1000 | 48-96 | 600-1200 | 10 | 44 | 100*650 | 15 | ||
4SPSC10/57-D72/1300 | 72-144 | 800-1500 | 10 | 57 | 100*680 | 15.5 | ||
4SPSC15/21-D72/1000 | 48-96 | 600-1200 | 15 | 21 | G2" | 100*540 | 13.5 | |
4SPSC15/28-D72/1300 | 72-144 | 800-1500 | 15 | 28 | 100*620 | 14 |
2.Technics innovation : Adopt double plastic package for rotor and stator, motor insulation>300MW, the motor security was much improved.
3.Structure innovation : Oil filling, convenient installation and environmental protection

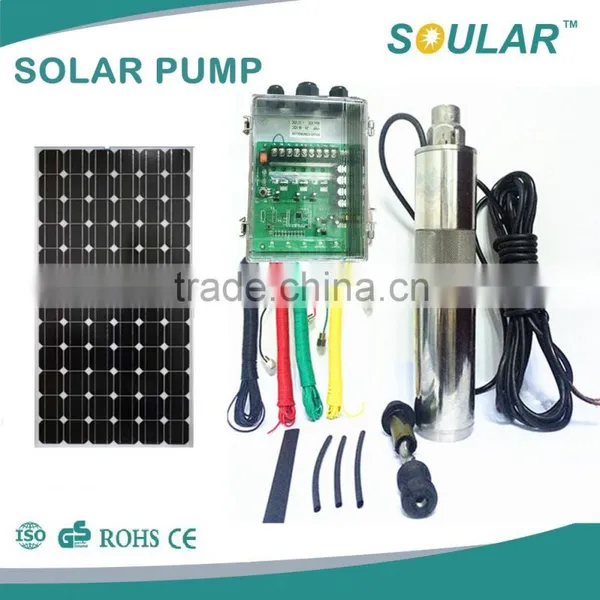

The Solar pumpsystem Including : Pump , Controller / Inverter , soalr panels, water level sensors, cabels, solar panel bracket (the customers can order bracket in your local place), and other spared parts;
u Solar Submersible Pump (Totally Automatically Operation)
u Solar Surface Pump (Totally Automatically Operation)
u Solar Swimming Pool Pump (Totally Automatically Operation )
Solar Pump + MPPT Controller + Water Level Sensors + Other spared parts
We can produce more than 8000 set solar pump system each month, and more quantity if the DC submersible pump;
We have finished hundrends of Solar pump system in more than 40 countries about the world, by cooperating with our distinguished disctributors and and local agricaltural mistration around the world.
Packages Declaration :
1. All of our goods are packed by the standards wooden cartons complied with the exportation requirement;
2. the cartons more than 50 pcs can also packed by wooden pallet;
We have desinged the top-grade quality pump and keep upgrade our product all the time by our professional Engineers Team, we also cooperate with many scientific research institutions and universities to ensure the new products researchment.
We have more than 68 distributors and more than 300 senir sales partners around the world, especiall in USA, Australia, Mexico, Thailand, Egypt, Turkey, Spaind, Clombia, Newzland, Chile etc.
1. Pump : 5 years;
2. Controller / Inverter : 3 year;
3. It is also accepable to provide the free accessories after the warranty, but clients need to pay for the transportation cost;
CERTIFICATION
Being entitled to self-import & export rights, we have obtained quality production permission. We got many of the certication as : ISO9001 quality management system certificate, ISO14001 environmental management system certificate, CCC certificate, GS certificate, CE certificate, TUV Certificationetc..
1. What is your Payment Terms?
Answer : TT, L/C, West Union, Ali-Pay.......
2. What is your M.O.Q. for sample?
Answer : 1pc or any of your required quantity, the more quantity you ;
3. How long is your warranty ?
Answer : Pump : 5 years ; Controller : 3 years;
4. How many solar panels do we need for the pump ?
Answer : We will help you design the perfect solar panel connection after your order confirmed.
5. Are you Trader or Manufacture ?
Answer : Manufacture, and welcome to visit our factory and establish business partnership with us;
In order to recommend the suitable model, please inform us neccessory hereby :
Answer : before we answer your question, please inform us : how many m3 /hr water do you need? also inform us your requirement for distance for H1 =? , H2= ?, H3= ? , H4 = ? ;
