Sulzer API610 Pumps
- Tianjin port
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | DK | |
| Model Number | ZA100/250 | Theory | Centrifugal Pump | |
| Structure | Gear Pump | Usage | Oil | |
| Power | Hydraulic | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | High Pressure | |
| Application | Maritime |
Product Description
Specifications
Application: The pumps are designed for the delivery of most fluids in petrochemical processes,applied to pumping clean of ...Shijiazhuang Damei Kingmech Pump Co.,Ltd |
Petrochemical process pumps (ZA series)-API610 OH PUMP ZA series of pumps are designed according to API610,7th edition and according to VDMA24297(light/medium/high duty)criterion as well. The pumps can be used in most pumping processing for its perfect design with various types.
|

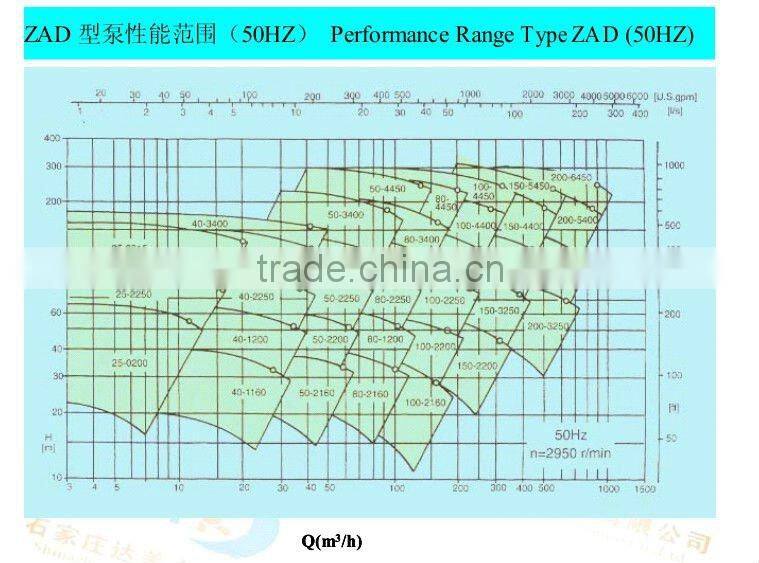

Pump size DN:25~400mm Capacity Q:~2600m3/h Head H:~300m Operating pressure P:~2.5MPa Operating temperature T: -80ºC~+180ºC
|
Application: The pumps are designed for the delivery of most fluids in petrochemical processes,applied to pumping clean of slightly polluted,cold or hot,chemically neutral or aggressive liquids. 1 in refineries,petrochemical industry 2 in paper and pulp industries ,sugar industry 3 in water industry,particularly in seawater desalination plants 4 in power plant 5 in coal processing industry 6 in heating and air-conditioning system 7 in environmental protection engineering 8 in ship and offshore installations ZA&ZE Petrochemical Process Pumps
|

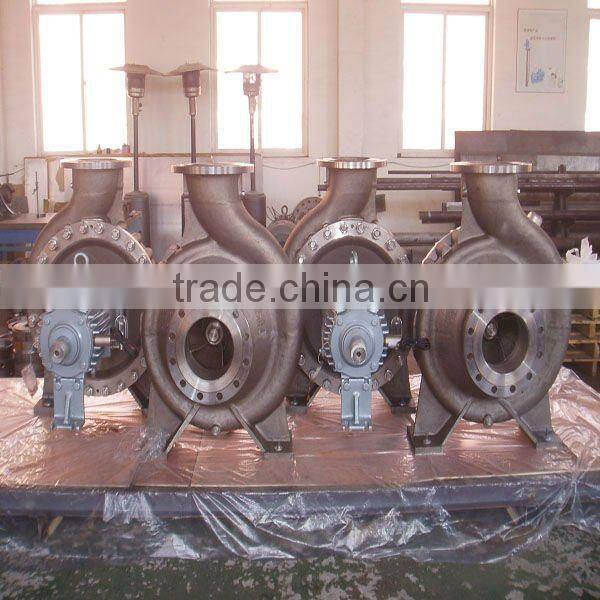

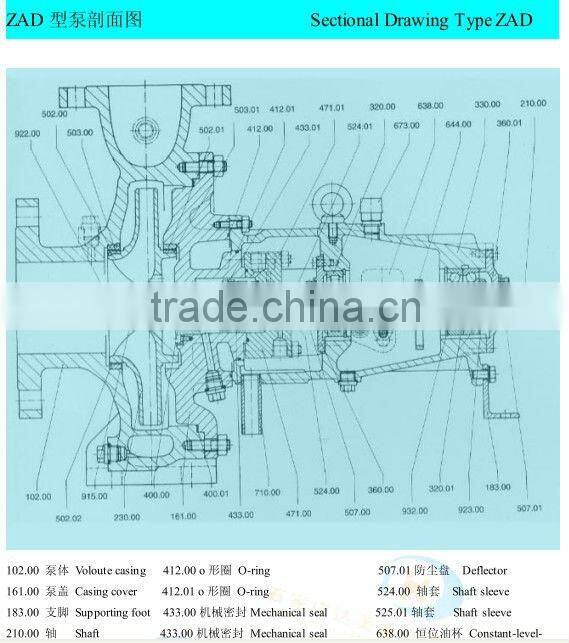

Description: Horizontal, single stage, radially split, foot mounted volute casing pumps, closed /opened single flow radial impeller. Low pressure design. The volute casing is self-venting. The standard API682 seal is available. The bearing frame with water cooling or fan cooling.
|
