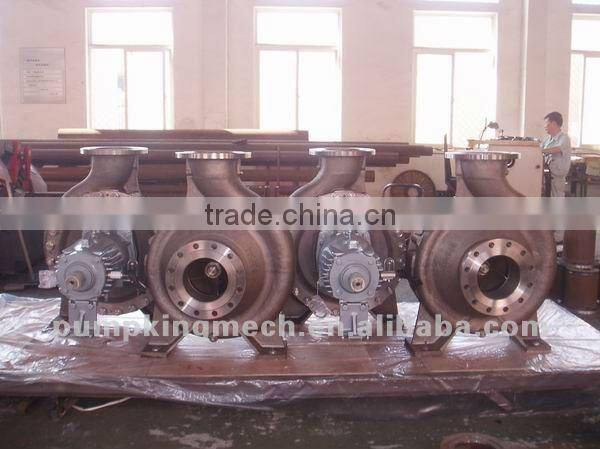

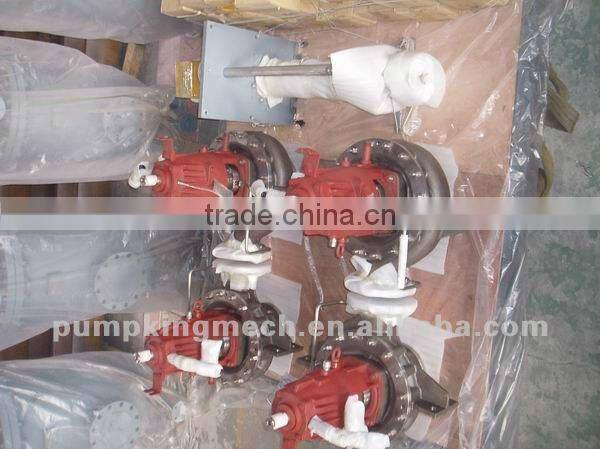

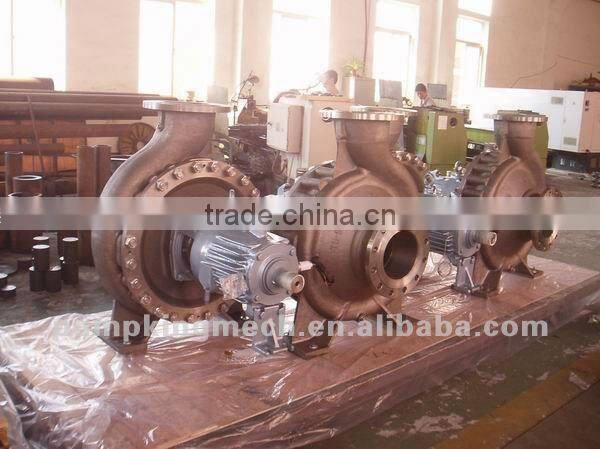

API610 OH1 Petroleum Chemical Process Pump

FOB Price

US$ 1,000 - 10,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.Size:1-16 inches
2.Capacity:0-2600 m3/h
3.Head:0-240m
4.Temperature:-80-300 C
5.Material:SS304,SS316,SS316Ti,SS316L

Type ZAD pump are foot mounted, overhung single stage end suction pump designed according to API 610.

Size: 1-16 inches

Capacity: 0-2600 m3/h

Head: 0-240m

Temperature: -80-300 °C

Material: Cast steel, SS304, SS316, SS316Ti, SS316L, CD4MCu, Titanium, Titanium Alloy, Hastelloy Alloy

No.	Parameter		Requirements
1	FUNCTIONAL
1.1	Q	m3/hour
1.2	H	m
1.3	The pressure at the inlet / outlet (no more)	Kg s/sm2
1.4	NPSH (no more)	m
1.5	For a semi-submerged (submersible) pumps:
1.5.1	The immersion depth (distance from the surface of the liquid to the suction port)	m
2	PUMPED CONTENT
2.1	Name of fluid
2.2	Solids content:
2.2.1	volume concentration	%
2.2.2	The dimensions of the particles (abrasive / not abrasive)	mm
2.3	Operating temperature, tp	0C
2.4	Viscosity (kinematic) at tp	sSt (mm2/s)
2.5	Density at tp	kg /sm3
3	MATERIAL RESISTANT to the fluid
	-
4	SHAFT SEAL
4.1	Gland single / double (C / SD)
4.2	Mechanical Single / Double (5/55)
5	CONDITIONS OF USE (SETUP)
5.1	Climatic performance and category of accommodation during the operation in accordance with GOST 15150-69
5.2	Class of Explosion and fire zone placement of RB
5.3	The need to supply the cooling / a heating fluid
6	DRIVE
6.1	Voltage, number of phases
6.2
7
