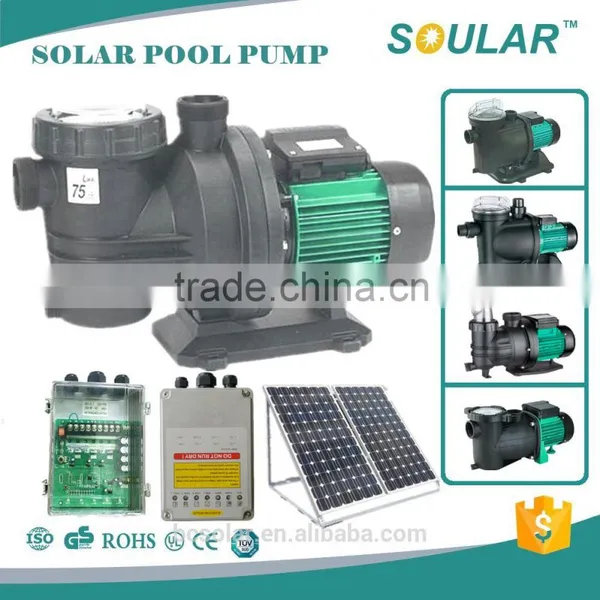

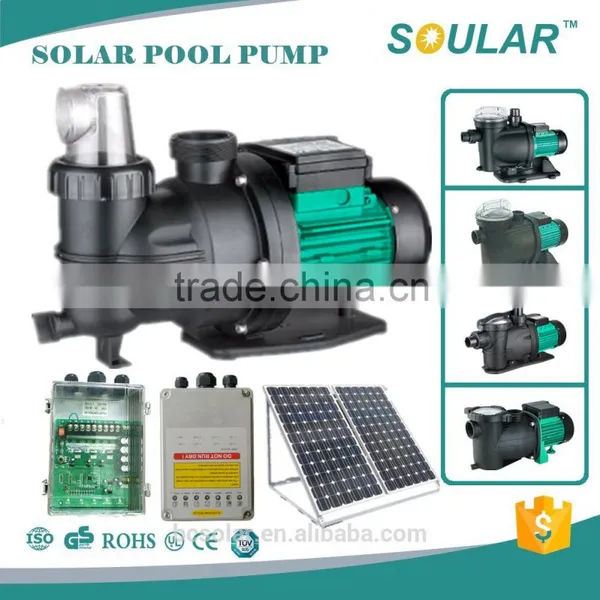

New Quiet Solar Pool Pump for Swimming Pool
( 5 Years Warranty )
(solar swimming pool pump, solar pool pump)
Why Choose to Cooperate with us ?
APPLICATION
It can be used to transfer clean water or other liquids similar to water in physical and chemical properties. It is suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
MOTOR
2.Technics innovation : Adopt double plastic package for rotor and stator, motor insulation>300MW, the motor security was much improved.
3.Structure innovation : Oil filling, convenient installation and environmental protection
Solar Swimming Pool Pump
| Model | Impeller | Voltage | Power | MAX. Flow L/Min | MAX.Head M | MAX.Suct (M) | Outer Dia.(MM) | Inlet/Outlet (IN) |
| SJP17/15-D48/500 | PLASTIC (PPO) | 42-63 | 210-700 | 280 | 15 | 7 | 52*28*38 | 2" |
| SJP21/19-D72/750 | 42-72 | 270-1000 | 350 | 19 | 52*28*38 | 2" | ||
| SJP31/19-D72/1000 | 42-72 | 600-1200 | 510 | 19 | 65*35*45 | 2.5" |
Submersible Solar Water Pump (Screw Type)
| Model | Screw / Impeller | Voltage (V) | Power (W) | Max. Flow (M³/H) | Max. Head (m) | Outlet (Inch) | Diameter* Length (mm) | Weight (Kg) |
| 3SPS0.72/20-D12/80 | Stainless steel Rotor | 12--26 | 45-150 | 0.72 | 20 | G0.75" | 76*400 | 6.5 |
| 3SPS0.76/28-D12/120 | 12--26 | 120 | 0.76 | 28 | G0.75" | 6.7 | ||
| 3SPS0.86/38-D12/150 | 12--26 | 150 | 0.86 | 38 | G0.75" | 6.8 | ||
| 3SPS1.0/30-D24/80 | 16-36 | 45-150 | 1 | 30 | G0.75" | 7 | ||
| 3SPS1.3/50-D24/140 | 16-36 | 80-200 | 1.3 | 50 | G0.75" | 7.2 | ||
| 3SPS1.8/80-D24/210 | 16-36 | 100-270 | 1.8 | 80 | G0.75" | 7.5 | ||
| 3SPS1.8/100-D36/270 | 24-48 | 140-350 | 1.8 | 100 | G0.75" | 8 | ||
| 3SPS1.8/120-D36/500 | 24-48 | 320-800 | 1.8 | 120 | G0.75" | 9 | ||
| 3SPS2.3/140-D48/750 | 36-72 | 480-950 | 2.3 | 140 | G0.75" | 9 | ||
| 3SPS2.3/160-D72/1000 | 48-96 | 600-1200 | 2.3 | 160 | G0.75" | 9.5 | ||
| 3SPS2.3/180-D72/1300 | 72-144 | 800-1500 | 2.3 | 180 | G0.75" | 9.5 | ||
| 4SPS3/60-D36/500 | 24-48 | 300-700 | 3 | 60 | G1" | 100*480 | 10 | |
| 4SPS3.6/80-D48/750 | 36-72 | 450-1000 | 3.6 | 80 | G1" | 10.5 | ||
| 4SPS4/100-D72/1000 | 48-96 | 600-1300 | 4 | 100 | G1" | 100*550 | 13.5 | |
| 4SPS4.2/120-D72/1300 | 72-144 | 800-1550 | 4.2 | 120 | G1" | 14 |
Submersible Solar Water Pump (Centrifugal Type )
| Model | Impeller | Voltage (V) | Power (W) | Max. Flow (M³/H) | Max. Head (m) | Outlet (Inch) | Diameter* Length (mm) | Weight (Kg) |
| 4SPSC5.0/28-D24/250 | Stainless steel | 18-26 | 120-360 | 5 | 28 | G1.25" | 100*540 | 12 |
| 4SPSC5.5/38-D36/400 | 24-48 | 200-500 | 5.5 | 38 | 100*650 | 12.5 | ||
| 4SPSC5.5/58-D48/750 | 36-72 | 450-900 | 5.5 | 58 | 100*680 | 13.5 | ||
| 4SPSC6.0/72-D72/1000 | 48-96 | 600-1200 | 6 | 72 | 100*740 | 15.5 | ||
| 4SPSC6.5/98-D72/1300 | 72-144 | 800-1500 | 6.5 | 98 | 100*880 | 16.5 | ||
| 4SPSC10/30-D48/750 | 36-72 | 450-900 | 10 | 30 | G1.5" | 100*540 | 13.5 | |
| 4SPSC10/44-D72/1000 | 48-96 | 600-1200 | 10 | 44 | 100*650 | 15 | ||
| 4SPSC10/57-D72/1300 | 72-144 | 800-1500 | 10 | 57 | 100*680 | 15.5 | ||
| 4SPSC15/21-D72/1000 | 48-96 | 600-1200 | 15 | 21 | G2" | 100*540 | 13.5 | |
| 4SPSC15/28-D72/1300 | 72-144 | 800-1500 | 15 | 28 | 100*620 | 14 |
The Solar pumpsystem Including : Pump , Controller / Inverter , soalr panels, water level sensors, cabels, solar panel bracket (the customers can order bracket in your local place), and other spared parts;
u Solar Submersible Pump (Totally Automatically Operation)
u Solar Surface Pump (Totally Automatically Operation)
u Solar Swimming Pool Pump (Totally Automatically Operation )

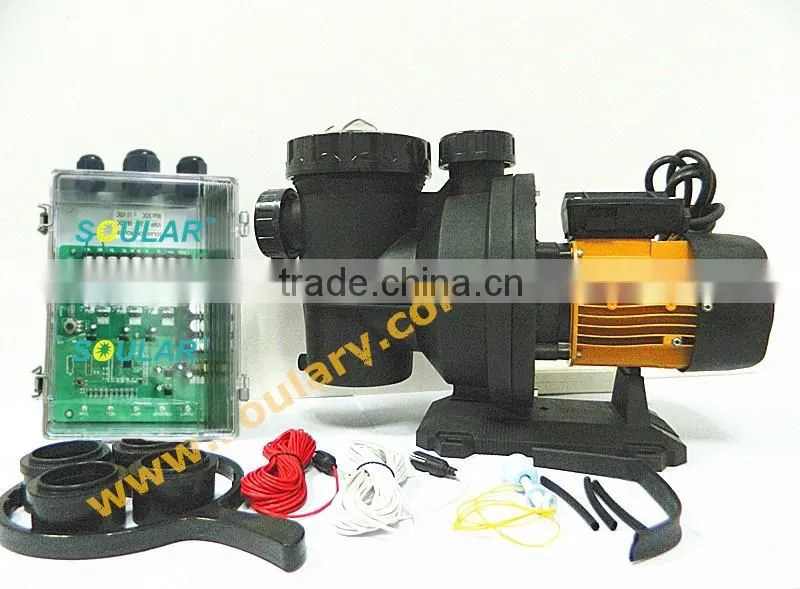

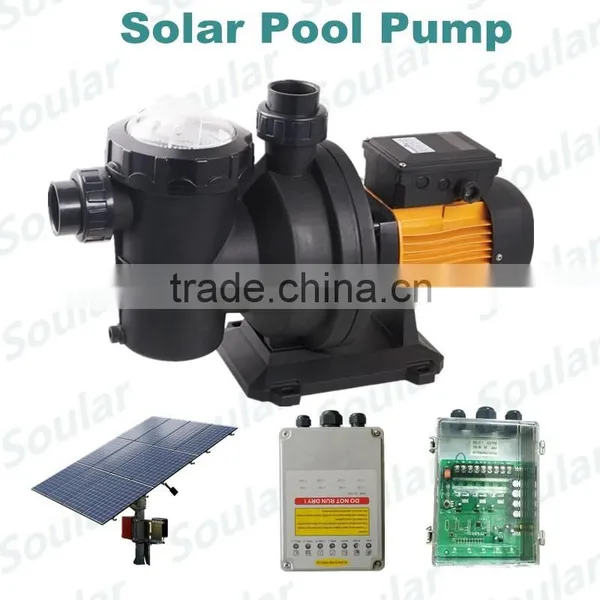

Solar Pump + MPPT Controller + Water Level Sensors + Other spared parts

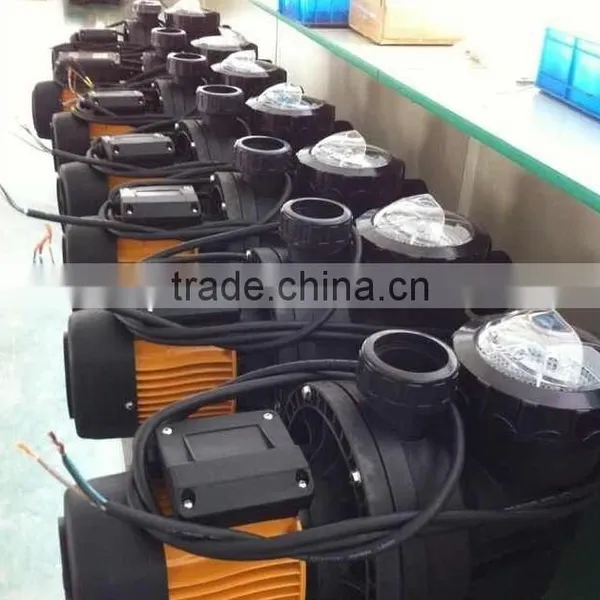

We can produce more than 8000 set solar pump system each month, and more quantity if the DC submersible pump;
We have finished hundrends of Solar pump system in more than 40 countries about the world, by cooperating with our distinguished disctributors and and local agricaltural mistration around the world.
Packages Declaration :
1. All of our goods are packed by the standards wooden cartons complied with the exportation requirement;
2. the cartons more than 50 pcs can also packed by wooden pallet;
We have desinged the top-grade quality pump and keep upgrade our product all the time by our professional Engineers Team, we also cooperate with many scientific research institutions and universities to ensure the new products researchment.
We have more than 68 distributors and more than 300 senir sales partners around the world, especiall in USA, Australia, Mexico, Thailand, Egypt, Turkey, Spaind, Clombia, Newzland, Chile etc.
1. Pump : 5 years;
2. Controller / Inverter : 3 year;
3. It is also accepable to provide the free accessories after the warranty, but clients need to pay for the transportation cost;
CERTIFICATION
Being entitled to self-import & export rights, we have obtained quality production permission. We got many of the certication as : ISO9001 quality management system certificate, ISO14001 environmental management system certificate, CCC certificate, GS certificate, CE certificate, TUV Certificationetc..
1. What is your Payment Terms?
Answer : TT, L/C, West Union, Ali-Pay.......
2. What is your M.O.Q. for sample?
Answer : 1pc or any of your required quantity, the more quantity you ;
3. We need your pricelist for all the models ?
Answer : we dont have "pricelist" for new buyers, And we only make quotation according to your requirement ;
4. How many solar panels do we need for the pump ?
Answer : We will help you design the perfect solar panel connection after your order confirmed.
5. Are you Trader or Manufacture ?
Answer : Manufacture, and welcome to visit our factory and establish business partnership with us;
In order to recommend the suitable model, please inform us neccessory hereby :
Answer : before we answer your question, please inform us : how many m3 /hr water do you need? also inform us your requirement for distance for H1 =? , H2= ?, H3= ? , H4 = ? ;
