Home > Products > Domestic Pump > VF-S Sewage Submersible Pump
VF-S Sewage Submersible Pump
- 8000 Set / Sets per Month
- Ningbo or Shanghai China
- T/T
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Soular | Model Number: | VF-S |
Theory: | Centrifugal Pump | Structure: | Multistage Pump | Usage: | Water |
Power: | Other, Electric, 0.55 KW ~ 2.2KW | Standard or Nonstandard: | Standard | Fuel: | Other, Electricity |
Pressure: | High Pressure | Application: | Sewage |
Product Description
Specifications
1. Warranty : 5 years;2. Shaft: Shaft: Stainless steel welded shaft /45# steel
be electroplated
3. Flow : 10~36m

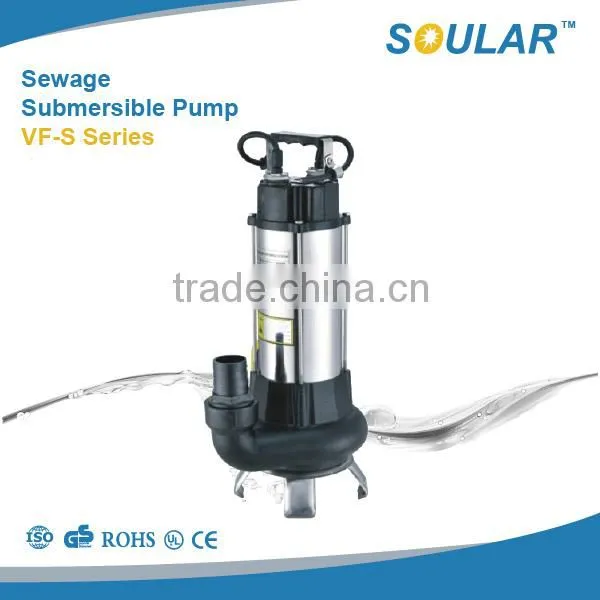

VF-S Sewage Submersible Pump
Drainage system in municipal sewage treatment plants
Drainage station in residential quarters
Municipal projects
Methane pools and field irrigation in countryside
Built-in thermal protector
Shaft: Stainless steel welded shaft /45# steel
be electroplated
Insulation class: B or F
Protection class: IPX8
Max. liquid temperature: +40℃
Liquid pH value: 4 - 10
Liquid kinematic viscosity: 7x10-7- 23x10-6m2/s
Max. liquid density: 1.2x103kg/m3

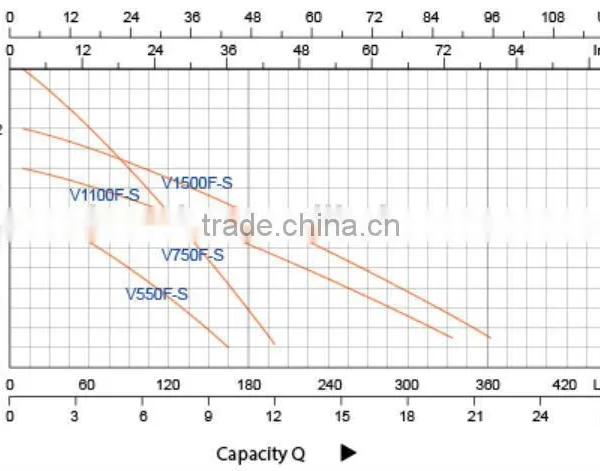

Below is the Pump Head & Flow Performance chart for the VF-S Sewage Submersible Pump ;
You can also contact us for other series pump performance if you need;
Pump Struction and Material Instruction :
1. warranty : 5 years;
2. It is also accepable tp provide the free accessories after the warranty, but clients need to pay for the transportation cost;
Packages Declaration :
1. All of our goods are packed by the standards wooden cartons complied with the exportation requirement;
2. cartons more than 100 pcs can also packed by wooden pallet;
SOULAR®' brand is hold by Hangzhou Soular Industry Group Co.,Ltd (the sales department registered as Hangzhou Beichen Soular Imp.& Exp. Co., Ltd. ), which specializes in manufacturing and exporting water pumps for industrial, residential and agricultural application. Our range includes DC Solar Pump, Deep Well Submersible Pump, Conventional Submersible Pump, Circulating Pump, Peripheral Pump, Centrifugal Pump, Self-priming JET Pump, Multi-stage Pump, Gardening Pump, etc.
PRODUCTION :
We have 30 years of pump manufacturing experience, obtained production permit, ISO9001 quality management system certificate and ISO14001 environmental management system certificate, CCC certificate, GS certificate, TUV Certification, UL certificaiton, CEC Certification, Rohs Certification, CE certificate etc. Our products have been sold to more than 50 countries, which located in Southeast Asia, Middle East, Europe, North Africa, Australia and Latin America. Due to excellent quality and reasonable price, our products are more and more popular in these Markets.
MARKET :
During the development, our company focuses on the introduction and cultivation of talents. With the dedicated research and development center, we also cooperate with many scientific research institutions and colleges and universities to insure the input of the research and development of new products. The solar submersible pump series of independent research and development have exported to many countries like the USA, Australia, etc., receiving wide acclaim.
Welcome OEM & ODM !
1. We need your solar pump catalogue ?
Answer : before we answer your question, please inform us :
how many m3 /hr water do you need?
what is vertical height height needs to be lift for the water ?
what is the horizon distance for transmitting the water ?
2. We need your pricelist for all the models ?
Answer : we dont present "pricelist" for a new customers, Because different pump material , different order quantity has different pricelist; right now, we can produce as metal , stainless steel 201, stainless steel 304, stainless steel 316 material for different market requirement around the world.
Attn. : You can just inform us your "target price" and detailed requirement , we will evaluate if we can produce for you.
3. We need to order some samples in first trial order ?
Answer : It is acceptable to sell you the samples, but the samples are chargable. We can also make refund the sample cost to you during the next formal order;
NOTE : Please reply us for all the above question when you plan to give us inquiry , otherwise your iqnuiry will be ingnoured or not focused on.
