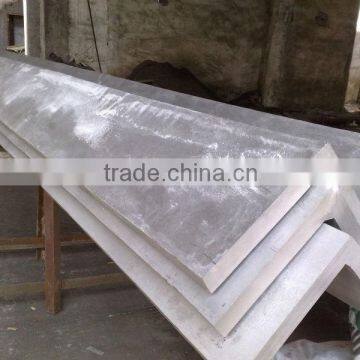

Home > Metallurgy, Mineral & Energy > Steel & Products > Steel Angle > Quick Sale 321 Stainless Steel Angle Bar
US$ 500 - 1,000
MOQ: 50 Tons
Key Specifications
Get Latest Price
Standard:
AISI, ASTM, BS, DIN, GB, JIS
Dimensions:
20*20*3mm-200*200*24mm
Grade:
ST Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality AISI 317L Stainless Steel Angle BarUS$ 500 - 1,000MOQ: 50 Tons -
Cheap Price Top Quality Stainless Steel Angle Bar/price Angle BarUS$ 500 - 1,000MOQ: 50 Tons
-
Supply a Large Number Stainless Steel Angle BarUS$ 500 - 1,000MOQ: 50 Tons
-
High Quality 304 Stainless Steel Angle BarUS$ 500 - 1,000MOQ: 50 Tons
-
Factory Supplier of 304L Stainless Steel Angle BarUS$ 500 - 1,000MOQ: 50 Tons
Standard
AISI, ASTM, BS, DIN, GB, JIS
Dimensions
20*20*3mm-200*200*24mm
Grade
ST Series
Place of Origin
Tianjin, China
Brand Name
ernuo
Model Number
A36,Q235,SS400,201,304,316,904L
Type
Equal
Application
construction
Specifications
angle steel barHigh mechanical strength
Standard: GB, JIS, DIN
Having competitive prices and good quality
SGS,TUV,BV
Steel Angle Bar
1.Material grade:Q195-235,Q235B,Q345 Equal to A36 SS400
2.Standard:GB/ASTM/JIS/BS
3.Specification:20*20-300*300
4.Delivery time:7-14days (according to the volume of your order)
5.Package :To be packed in bundles wrapped with steel strip(or as customers requirements)
6.Application: curtain wall, machinery, construction
6.Certification:ISO9001,BV,TUV,SGS
| Equal angle bar | |||||||
| Size | Width (mm | Thicknessmm) | Density (kg/m) | Size | Width (mm | Thicknessmm) | Density (kg/m) |
| 20 | 20 | 3 | 0.889 | 80 | 80 | 7 | 8.525 |
| 20 | 20 | 4 | 1.145 | 80 | 8 | 8 | 9.658 |
| 25 | 25 | 3 | 1.124 | 80 | 80 | 10 | 11.874 |
| 25 | 25 | 4 | 1.459 | 90 | 90 | 6 | 8.35 |
| 30 | 30 | 3 | 1.373 | 90 | 90 | 7 | 9.656 |
| 30 | 30 | 4 | 1.786 | 90 | 90 | 8 | 10.946 |
| 35 | 35 | 3 | 1.578 | 90 | 90 | 10 | 13.476 |
| 35 | 35 | 4 | 2.072 | 90 | 90 | 12 | 15.94 |
| 35 | 35 | 5 | 2.551 | 100 | 100 | 6 | 9.366 |
| 40 | 40 | 3 | 1.852 | 100 | 100 | 7 | 10.83 |
| 40 | 40 | 4 | 2.422 | 100 | 100 | 8 | 10.276 |
| 40 | 40 | 5 | 1.976 | 100 | 100 | 10 | 15.12 |
| 44 | 44 | 3 | 2.002 | 100 | 100 | 12 | 17.898 |
| 44 | 44 | 4 | 2.638 | 100 | 100 | 14 | 20.611 |
| 38 | 38 | 3 | 1.719 | 100 | 100 | 16 | 23.257 |
| 38 | 38 | 4 | 2.261 | 110 | 110 | 7 | 11.928 |
| 48 | 48 | 3 | 2.19 | 110 | 110 | 8 | 13.532 |
| 48 | 48 | 4 | 2.889 | 110 | 110 | 10 | 16.69 |
| 48 | 48 | 5 | 3.572 | 110 | 110 | 12 | 19.782 |
| 50 | 50 | 3 | 2.332 | 110 | 110 | 14 | 22.809 |
| 50 | 50 | 4 | 3.059 | 125 | 125 | 8 | 15.504 |
| 50 | 50 | 5 | 3.77 | 125 | 125 | 10 | 19.133 |
| 50 | 50 | 6 | 4.465 | 125 | 125 | 12 | 22.692 |
| 56 | 56 | 3 | 2.624 | 125 | 125 | 14 | 26.193 |
| 56 | 56 | 4 | 3.446 | 140 | 140 | 10 | 21.488 |
| 56 | 56 | 5 | 4.251 | 140 | 140 | 12 | 25.522 |
| 56 | 56 | 6 | 6.568 | 140 | 140 | 14 | 29.49 |
| 63 | 63 | 4 | 3.907 | 140 | 140 | 16 | 33.393 |
| 63 | 63 | 5 | 4.822 | 160 | 160 | 10 | 24.724 |
| 63 | 63 | 6 | 5.721 | 160 | 160 | 12 | 29.391 |
| 63 | 63 | 8 | 7.469 | 160 | 160 | 14 | 33.987 |
| 63 | 63 | 10 | 9.151 | 160 | 160 | 16 | 38.518 |
| 70 | 70 | 4 | 4.372 | 180 | 180 | 12 | 33.159 |
| 70 | 70 | 5 | 5.397 | 180 | 180 | 14 | 35.383 |
| 70 | 70 | 6 | 6.406 | 180 | 180 | 16 | 43.452 |
| 70 | 70 | 7 | 7.398 | 180 | 180 | 18 | 48.634 |
| 70 | 70 | 8 | 8.373 | 200 | 200 | 14 | 42.894 |
| 75 | 75 | 5 | 5.818 | 200 | 200 | 16 | 48.56 |
| 75 | 75 | 6 | 6.905 | 200 | 200 | 18 | 54.501 |
| 75 | 75 | 7 | 7.976 | 200 | 200 | 20 | 60.056 |
| 75 | 75 | 8 | 9.03 | 200 | 200 | 22 | 71.168 |
| 75 | 75 | 10 | 11.089 | Length=6-12meters SS400 or Q235 | |||
| 80 | 80 | 5 | 6.211 | ||||
| 80 | 80 | 6 | 7.376 | ||||
about us
Product Advantages
1) We can supply the angle steel as customers' requirements;
2) High menchanical strength;
3) Having competitive prices and high quality;
4) Short delivery time
