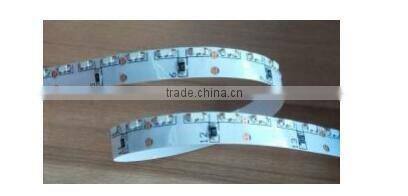

SMD335 led strip light 120leds/m 24V IP67

SMD335 led strip light 120leds/m 24V IP67

Description:

l Material technology:The bright SMD335 lamp as the light emitting element

l Viewing Angle:120 degree

l Product length: 5M/Roll

l Power rating:48W/5M

l Rated current:2A

l Operating Temperature:-20℃~+45℃

l Storage temperature:-20℃~+60℃

l Environment humidity:40-70% RH

l Installation: With 3M double-sided adhesive on the back, ultra-thin design

l Working Lifetime(Hour):50000

Diagram:

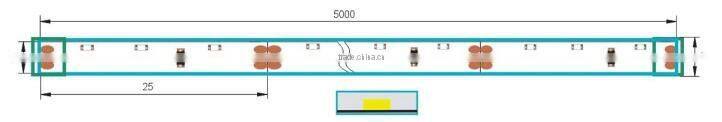

Dimension(mm):

Parameter:

Note:Plus or minus 10% of Luminous flux fluctuation is allowed

Photometric standards are based on CIE eye sensitivity curve diagram test

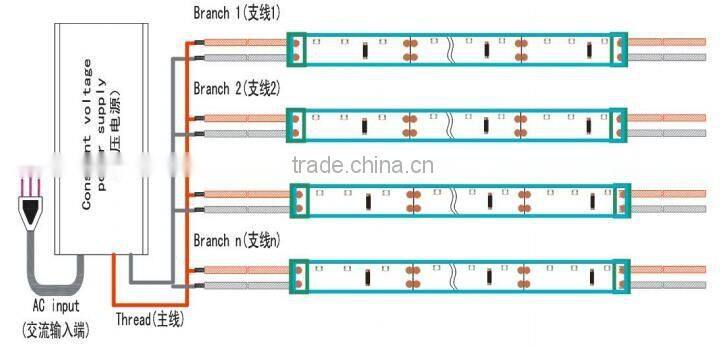

Schematic diagram:

Note:To achieve better luminous effect, it’s suggested that the power supply cable of each 5 meters long lamp should be connected to the power line.

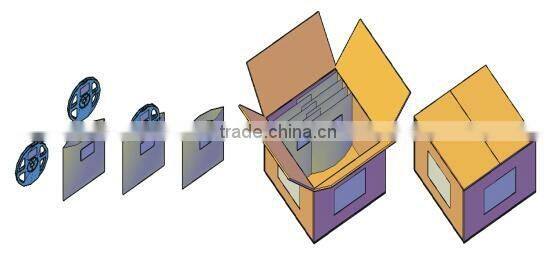

Packaging:

Note & warning:

l To achieve a better luminous effect of products, each 5 meters long lamp with a power connected

l To ensure the service life of lamp and protect the LED lamp, do not pull the power line and no collision

l To ensure the lifespan and stability of lamp, do not bend the strip with the radian less than 60mm diameter; Do not fold in case of breaking the LED lamp

l You’d better install the strip in an appropriate environment

l Be careful, pls do not touch the AC power when power on
