Shenzhen Thinker Lighting Electronic Co., Ltd.: Shenzhen, Guangdong, China; Main products: LED Strip light, LED Panel light, LED Controller, LED Tube, LED Downlight

Home > Products > SMD335 Led strip Lighting > 335 Led Strip Light Side Emitting 12V 300leds per Roll

335 Led Strip Light Side Emitting 12V 300leds per Roll

FOB Price

US$ 0.1 - 1 / Roll

1 Roll(Min. Order)

Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	Epistar	Type	Flex LED Strips
Input Voltage(V)	DC12V/24V	Lamp Power	4.8W/M
Lamp Luminous Flux(lm)	22-25lm/led	Color Temperature(CCT)	3000K-6500K
Working Temperature(℃)	-20, 40	Working Lifetime(Hour)	50000
Lamp Body Material	Copper	Certification	CCC, CE, EMC, Energy Star, LVD, SAA, UL
Emitting Color	White	Place of Origin	Guangdong, China
Brand Name	Thinker-Lighting	Model Number	TL-SMD33512V60W-IP20

Product Description

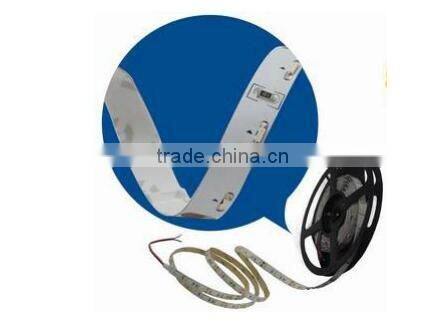

335 led strip light side emitting 12V 300leds per roll

feature:

1,Material technology:The bright SMD335 lamp as the light emitting element,together with the high temperature resistant flexible FPC made

2,Viewing Angle:120 degree

3,Product length: 5M/Roll

4,Power rating:24W/5M

5,Rated current:2A

6,Operating Temperature:-20℃~+45℃

7,Storage temperature:-20℃~+60℃

8, Environment humidity:40-70% RH

9,Installation: With 3M double-sided adhesive on the back, ultra-thin design;

10,LED Life time: Mean time between failure(MTBF):50-100K hours

Applications:

1,Hotels

2,Conference/Meeting rooms

3, Commercial Purposes

4,Schools

5,Anywhere needs energy saving, auxiliary and decorative lighting

Diagram:

Dimension:Unit(mm)

Product performance and parameter:

Notes:

1.Plus or minus 10% of Luminous flux fluctuation is allowed;

2.Photometric standards are based on CIE eye sensitivity curve diagram test;

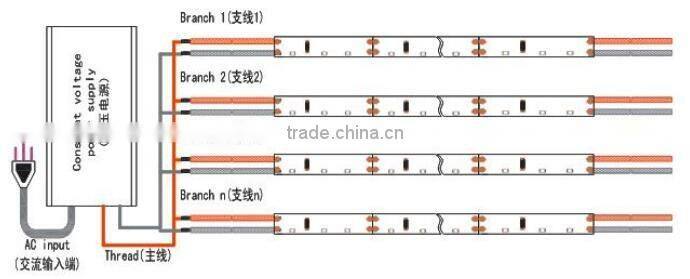

Wiring installation diagram:

Notes:

To achieve better luminous effect, it’s suggested that the power supply cable (regional) of each 5 meters long lamp should be connected to the power line.

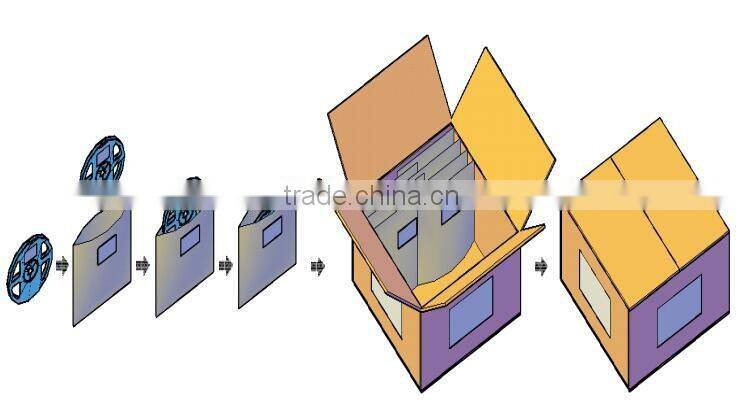

Product packaging:

Note & warning:

1,To achieve a better luminous effect of products, each 5 meters long lamp with a power connected.

2,To ensure the service life of lamp and protect the LED lamp, do not pull the power line and no collision.

3, To ensure the lifespan and stability of lamp, do not bend the strip with the radian less than 60mm diameter; Do not fold in case of breaking the LED lamp.

4,You’d better install the strip in an appropriate environment.

5,Be careful, pls do not touch the AC power when power on.
