Product Description
Galvanized steel coil Profile
It is the equipment that applies zinc plating by dipping a sheet of hot-rolled steel into a molten zinc pot so as to be coated with zinc deposits.
2.Thickness:0.18-3.0mm
3.Width :1000mm,1200mm,1250mm (The special width 914mm,1219mm,1220mm will be available )
4.Surface Finish: Regular Spangle, Minimized Spangle
5.Coating Thickness; Min. Single Side coating Thickness: 50 gm
Max. Single Side coating Thickness: 275 gm
6.Surface Treatment: Chromating Treatment, Oiled
7.inside diameters :508 mm
8.Outside diameter : according to the weight of coil
9.weight/coil :3-8 ton
10.Packing condition :seaworthy
Packing weight(without pallet):25 kgs
Packing weight(with pallet ):55 kgs
11.Productivity:300,000 tons/year
12.Delivery time :30 days (less than 500 ton )

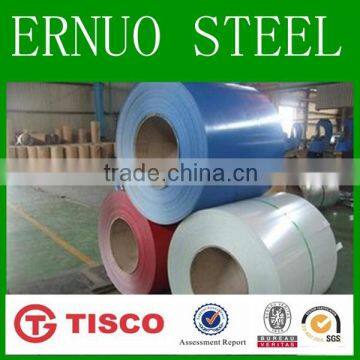

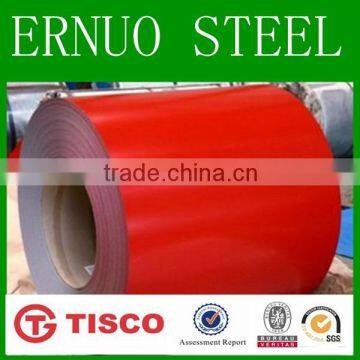

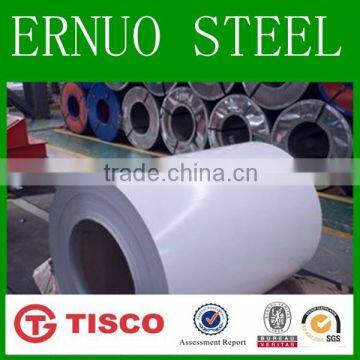

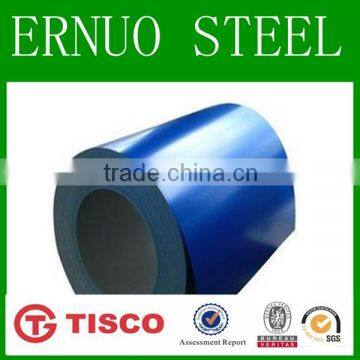

Product show
Painting
Category of Painting |
Item |
Code |
|
Polyester |
PE |
||
High-durability polyester |
HDP |
||
Silicon modified polyesters |
SMP |
||
Polyvinylidene fluoride |
PVDF |
||
Easy-Cleaning |
— |
||
Painting Thickness |
Top side: 20-25um; |
||
Bottom side: 7~12microns. | |||
Color System |
Produce according to RAL Color System,RR Color or as per buyer’s color sample. |
||
Painting structure |
Top surface |
Bottom surface |
|
Primer coating |
No coating |
1/0 |
|
Primer coating |
Primer coating |
1/1 |
|
Primer coating + Finish coating |
No coating |
2/0 |
|
Primer coating + Finish coating |
Primer coating or single back coating |
2/1 |
|
Primer coating + Finish coating |
Primer coating + Finish back coating |
||
Chemical Composition
Chemical Composition | ||||||
GRADE |
C |
Si |
Mn |
P |
S |
Ti |
SGCC/DX51D+Z |
≤0.10 |
≤0.50 |
≤0.60 |
≤0.10 |
≤0.030 |
≤0.020 |
DX52D+Z |
≤0.10 |
≤0.50 |
≤0.60 |
≤0.10 |
≤0.030 |
≤0.020 |
SGCD/DX53D+Z |
≤0.10 |
≤0.30 |
≤0.50 |
≤0.05 |
≤0.030 |
≤0.020 |
SGCE/DX54D+Z |
≤0.10 |
≤0.30 |
≤0.30 |
≤0.03 |
≤0.020 |
≤0.020 |
DX56D+Z |
≤0.10 |
≤0.30 |
≤0.30 |
≤0.03 |
≤0.020 |
≤0.020 |
Structural |
≤0.20 |
≤0.60 |
≤1.70 |
≤0.10 |
≤0.045 |
|
Application
Application |
Building exterior application |
Building interior application | |
Furniture | |
Household appliances | |
Steel windows | |
Others |
