Home > Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Chemical Drying Equipment > High Efficient Rotary Kiln Manufacturer for Sale

High Efficient Rotary Kiln Manufacturer for Sale

Name: High Efficient Rotary Kiln Manufacturer for Sale
Brand: long Teng Series
SKU: 114427029
Availability: InStock

High Efficient Rotary Kiln Manufacturer for Sale thumbnail-1

High Efficient Rotary Kiln Manufacturer for Sale photo-1

US$ 800,000 - 6,000,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Rotary Drying Equipment

Place of Origin:

Shandong, China

Contact Supplier Request Quote Chat Now

Zhangqiu Long Teng Cement Machinery Making Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Rotary Drying Equipment

Place of Origin Shandong, China

Brand Name long Teng Series

Model Number Long Teng Series

Voltage 380V

Power(W) 30/10kw

Dimension(L*W*H) 45*1.8m

Weight 80 tons

Certification ISO9001/CE/SGS

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.rotary furnace
2.Best after-sale
3.Long service time
4.High Efficiency
5.ISO9001 certified

High Efficient Rotary Kiln Manufacturer for Sale

Product Description

1.What is Rotary Kiln?

Rotary kiln is the key equipment in cement industry for calcinating clinker. It is also used in varies industries, such as metallurgy, Chemical, building, rehractory material, environmental production, etc. The kiln is composed of the cylindrical shell, roller supporting device with thrust roller, driving gear unit movable kiln hood, sealing device at kiln inlet, coal dust pipe device etc.

With a certain slope to the level, the whole kiln body is supporting rollers and fitted with thrust rollers to contral up and down movement of the kiln body. Besides main driving unit for driving system, if is also fitted with auxiliary driving unit so as to ensure the kiln could be kiln head sealing adopts housing type sealing and kiln rear uses axial contact sealing unit so that reliability of sealing be ebsures.

2.Rotary Kiln Features

1.Through technological innovation, our rotary kiln is designed with international leading wheel catch device, high precision plunger metering pump, high accuracy speed control valve and contact graphite block sealing device, etc.

2. In order to improve machinery automation, an industrial computer is used for showing the calcining condition, and

a fluorescent screen is adopted for showing the simulated process flows. An infrared scanner is utilized for transmitting the calcining condition to the computer.

These new technologies provide our rotary kiln with strong visual sense, convenient operation and reliable performance. They help stabilize thermal regulation and improve operation efficiency.

3.Working Principle of Rotary Kiln

1) With a certain slope to the level, the whole kiln body is supported by rollers and fitted with thrust rollers to control up and down movement of the kiln body.

2) Besides main driving unit for driving system, it is also fitted with the auxiliary driving unit so as to ensure the kiln body still can rotating when the main motor is powered off and prevent it from deforming.

3) The kiln head adopts housing type sealing and kiln rear uses axial contact sealing unit so that reliability of sealing could be ensured.

4.Types

Rotary kiln belongs to building material equipment, and it can be divided into cement kiln, metallurgy chemical kiln and

active lime kiln, porcelain kiln according, building material kiln, calcined petroleum coke rotary kiln to different materials.

5.Parameters

Technical paramenters of ratary kiln
Specifications	Technical parameters			main reducer		main motor			Catch wheel form	The number of support	Weight(t)
Specifications	Roller speed (r/min)	slope(%)	production(t/h)	model no	Speed ratio	model no	power (kw)	speed (r/min)	Catch wheel form	The number of support	Weight(t)
Φ1.9/1.6* 36m	0.53-1.59	4	2.5-3	JZQ750-1	48.58	JZT-72-4	30	1200/400	Mechanical	3	53
Φ2.1/1.8* 36m	0.5-1.51	4	4	UT2-110	163.36	JZS-81	30/10	1410/470	Mechanical	3	75
Φ1.2*25m	0.5-1.6	3		PM650	40.17	JZTY71-4	22	1200/120	Mechanical	3	34
Φ1.6*32m	0.158-0.258	3		PM750	48.57	JZJY61-4	15	1200/120	Mechanical	3	46.82
Φ1.8*45m	0.66-1.98	4	3.5	UT2-110	163.36	JZS-81	30/10	1410/470	Mechanical	3	80
Φ2.2*50m	0.125-1.25	3.5	4	ZS145-11	157	YCT280-4A	30	1320/132	Mechanical	3	130.71
Φ2.5*50m	0.516-1.549	3.5	5.5	ZS165-7	99.96	YCT355-4A	55	1320/440	Mechanical	3	167.5
Φ3*48m	0.3309-3.309	3.5	35	ZL130-14	32.11	ZSN4-250-21B	90	1000/100	Mechanical	3	237
Φ3.2*50m	0.398-3.975	3.5	50	ZL130-16	40.85	ZSN4-280-11B	190	1500/150	Mechanical	3	263
Φ3.3*52m	0.391-3.91	3.5	50	ZSY500-28	27.707	ZSN4-315-082	190	1000/100	Mechanical	3	280.8
Φ4*60m	0.396-3.96	3.5	104	ZSY630-35.5	34.601	ZSN4-355-092	315	1000/100	Mechanical	3	487.5
Φ4.2*60m	0.4165-4.165	3.5	116	ZSY710-35.5	35.526	ZSN4-355-12	420	1000/100	Mechanical	3	576.1
Φ4.3*62m	0.398-3.98	3.5	125	ZSY710-35.5	35.714	ZSN4-355-12	420	1000/100	Mechanical	3	5985
Φ4.8*74m	0.35-4	4	208	JH710C-SW305-40	42.226	ZSN4-400-092	630	1500/130	Mechanical	3	841

Packaging & Shipping

Our Services

Personalized Reception: Offer the full and personalized service in the whole jorney after you come to China.

Lifetime Technical Support: Offer one year of free equipment warranty and lifetime technical support

Monitor Production Progress: You can monitor production progress personally anytime after confirming the order.

Product Delivery: We have developed a long and good relationship with many shipping agents, such as APL, MSK, CSCL, MSC, etc.

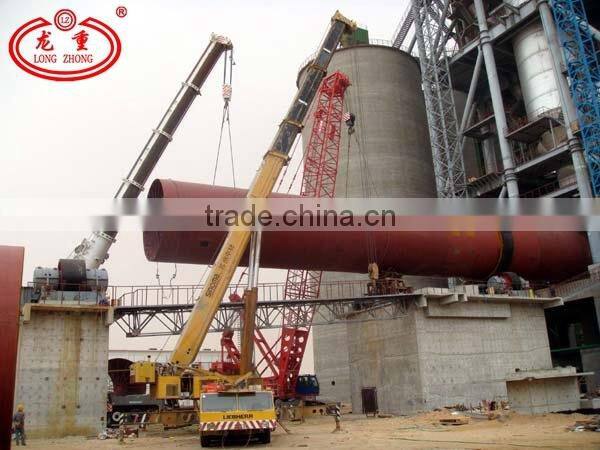

Installation and Training: Send technicians to the client site for guiding the installation and adjustment, and training operators to complete the inspection and acceptance together with you.
