Copper/CCA Core EPR Insulated Welding Cable 50mm2

Name: Copper/CCA Core EPR Insulated Welding Cable 50mm2
Brand: Jinshui
SKU: 114423845
Availability: InStock

US$ 0.5 - 40.6 MOQ: 500 Meters

Key Specifications

Place of Origin:

Henan, China

Brand Name:

Jinshui

Model Number:

YH H07RN-F

Henan Jinshui Cable Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name Jinshui

Model Number YH H07RN-F

Insulation Material Other, EPR(Ethylene-Propylene Rubber)

Type Low Voltage

Application Other, Welding machine

Conductor Material Other, Copper or CCA(copper clad aluminum)

Jacket Other, CPE(Chlorinated Polythylene)

Specifications

Welding cable 50mm2
Cu/CCA core,EPR/CPE insulated
Professional mnaufacturer
High quality,lowest price
Strong capacity.

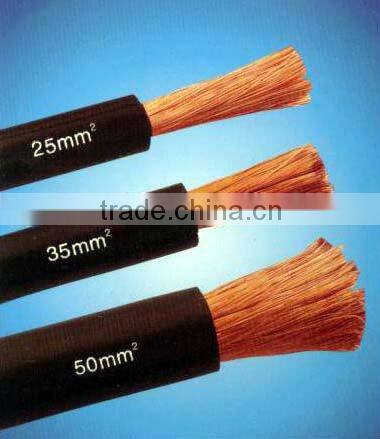

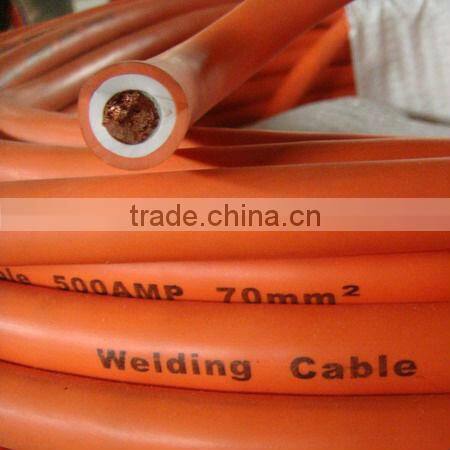

Copper/CCA core EPR insulated welding cable 50mm2

Specific property for using

1. The cable can be used in the connectors of electric weld and pliers of the electrical welding

whose toward earth voltage of the low voltage is not more than AC 200V and the pulsating DC peak value is 400V.

2. The long term permissible working temperature of cables is not more than 65°C.

Type

1. Natural rubber sheath for welding cable.

2. Horoprene rubber or other synthetic sheath welding cable.

Standard

IEC60245

The general technical data of the cable IEC60245

Nominal cross-section mm2	No./Dia of stranding mm	Nominal sheath thickness mm	Average of the max. outer diameter mm	conductor resistance at 20°C ≤Ω/km	Weight kg/km
10	322/0.20	1.8	9.7	1.91	151.6
16	513/0.20	2.0	11.5	1.61	224.0
25	798/0.20	2.0	13.0	0.758	326.0
35	1121/0.20	2.0	14.5	0.536	430.0
50	1596/0.20	2.2	17.0	0.379	600.0
70	2214/0.20	2.4	19.5	0.268	818.1
95	2997/0.20	2.6	22.0	0.198	1082.7
