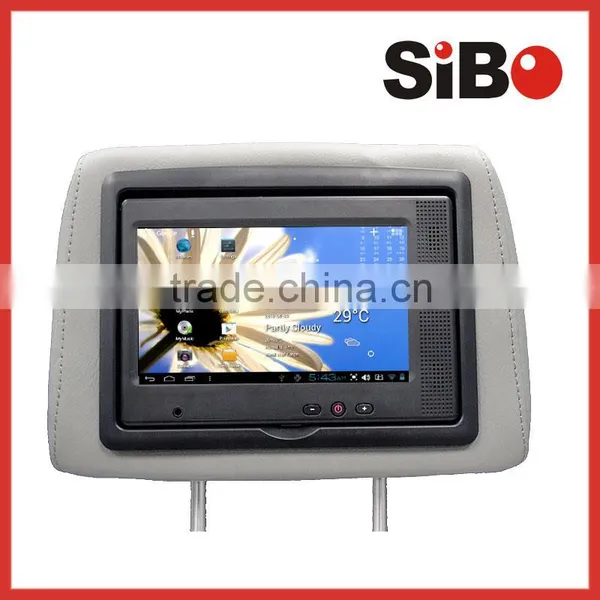

7" Taxi Advertising Player With 3G GPS
7" Taxi Advertising Player with 3G GPS
SPECIFICATIONS | |
Model Number |
Q8 |
Screen Size |
7 inch |
Screen Type |
High sensitivity TFT LCD capacitive touch screen (five points multi touch), 800 × 480, 16 : 9 |
Opearating System |
Android 4.0.3 / 4.1.3 |
Language |
Support multilanguage (44 countries) |
Processor |
VIA WM8850, 1.2Ghz, Cortex-A9 |
GPU |
Mali-400 |
RAM |
DDR3 512MB |
Nand Flash |
8GB |
Supported Voltage |
9V - 27V |
Network (optional) |
Cabled network |
Wi-Fi (150M, IEEE 802.11 b/g/n) | |
3G (external 3G dongle) | |
Power Supply (optional) |
Power adaptor(110V-220V AC IN, 12V DC OUT) |
Battery | |
Other (optional) |
Headrest |
RS232 / RS485 board (only one serial port available) | |
GPS module (can just show longitude and altitude) | |
Trade Information |
Trade Term: EXW |
MOQ: 100 units (Paid sample available) | |
Lead Time: 7 working days after receiving full payment for sample , 25 working days after receiving 30% deposit for bulk order for bulk order. | |
Package (include Headrest): 59*34*34 CM, 4 units/carton | |

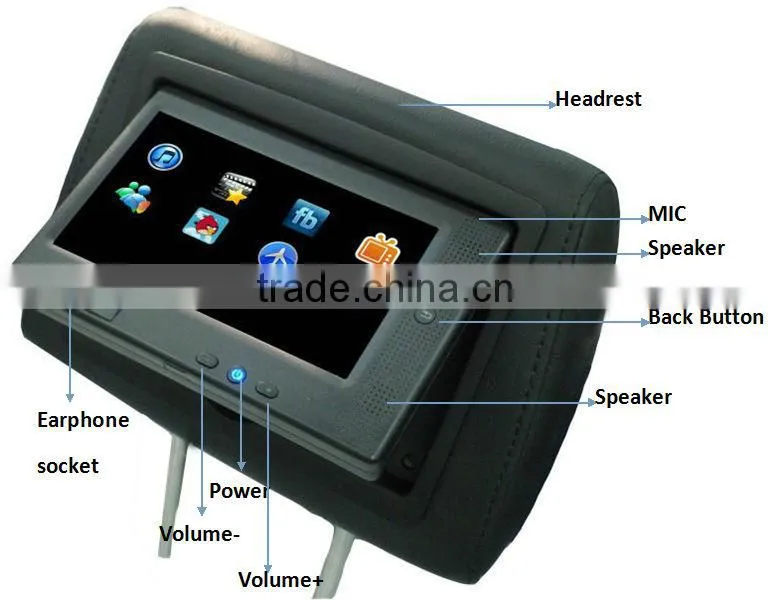

PRODUCT APPEARANCE |
Front Side |
2 speakers (2W) |
Microphone | |
4 buttons: volume+, volume-, power button, back button | |
1 earphone jack (3.5mm) | |
Right Side |
TF card (up to 32GB) |
Back Side(between tablet and headrest) |
USB port (USB 2.0, host) |
DC power plug | |
Battery plug | |
Ethernet port (RJ-45, 100Mps) | |
UART TTL |

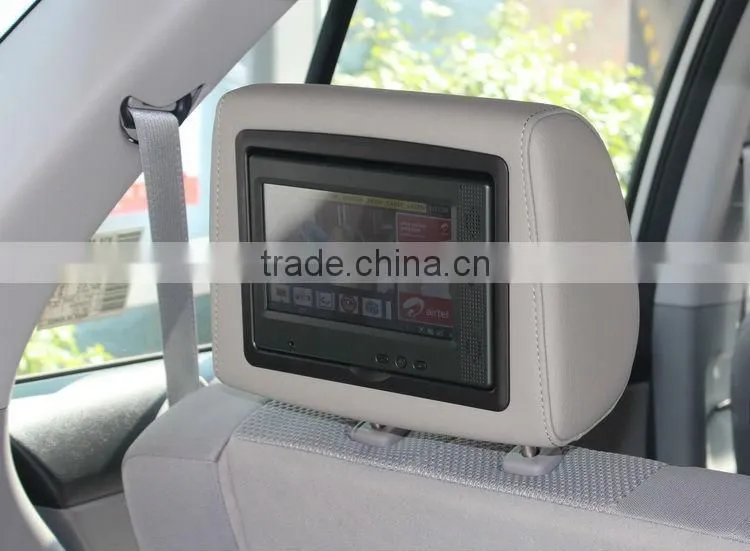

USED IN TAXI |
ADVERTISING SOFTWARE:

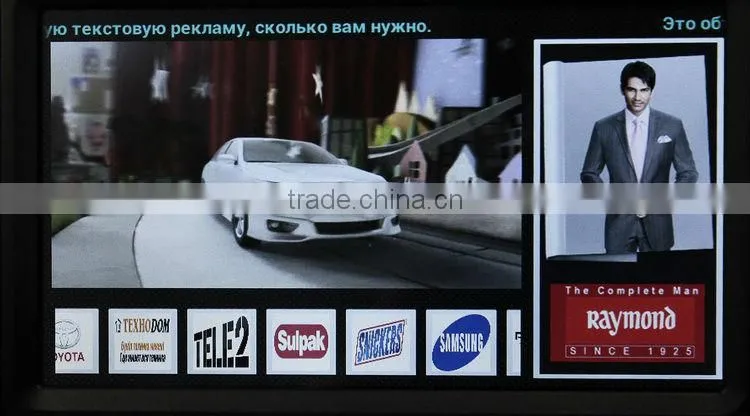

Version 1: Headrest monitor plays the ads stored in TF card

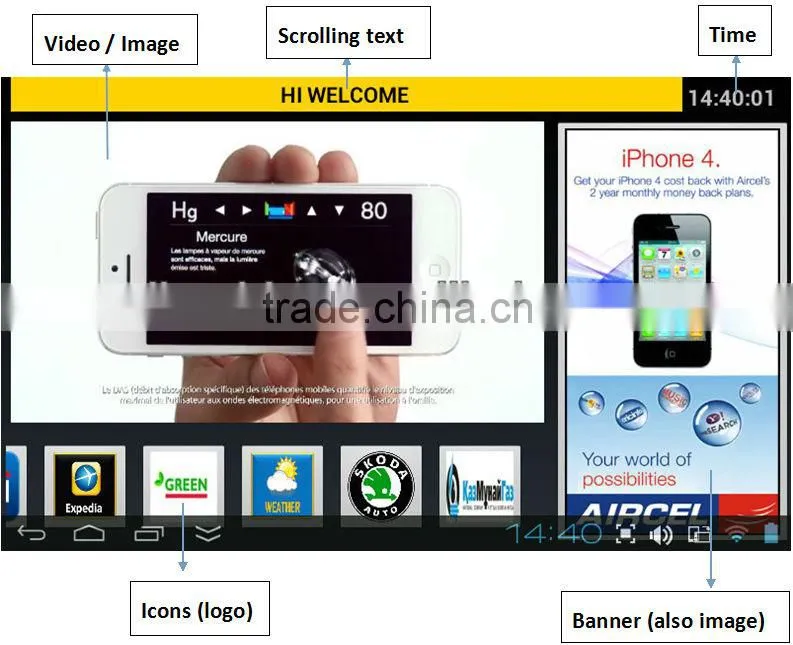

Version 2: Headrest monitor plays the ads stored in web server
A Video showing how the software work: /watch?v=cNJQfmKhXmU

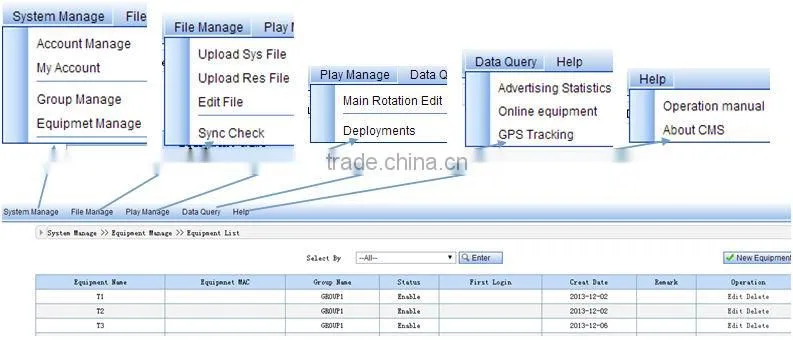

Server:

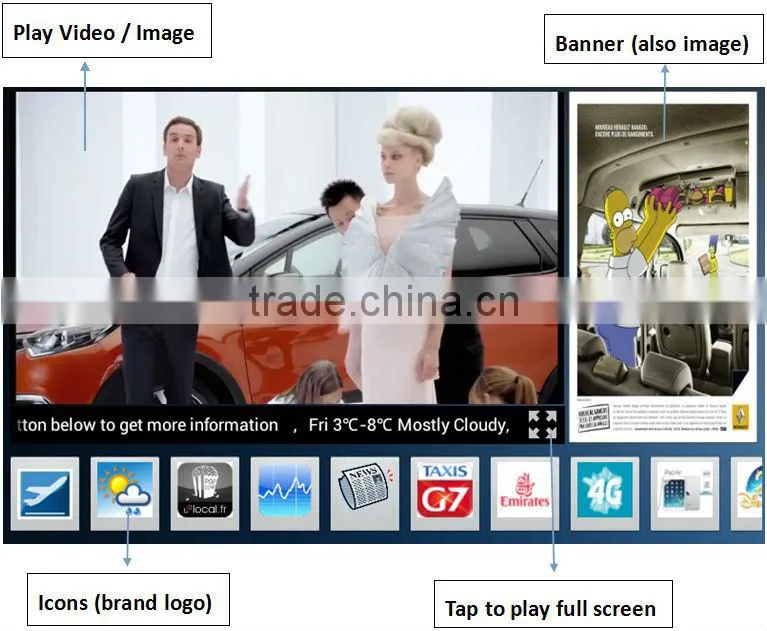

Version 3: Headrest monitor plays the ads stored in web server

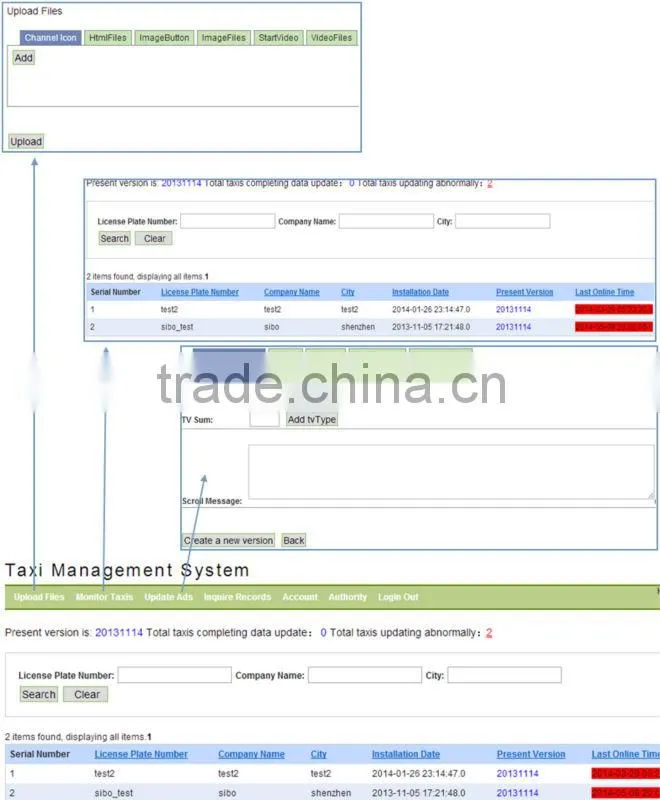

Server:

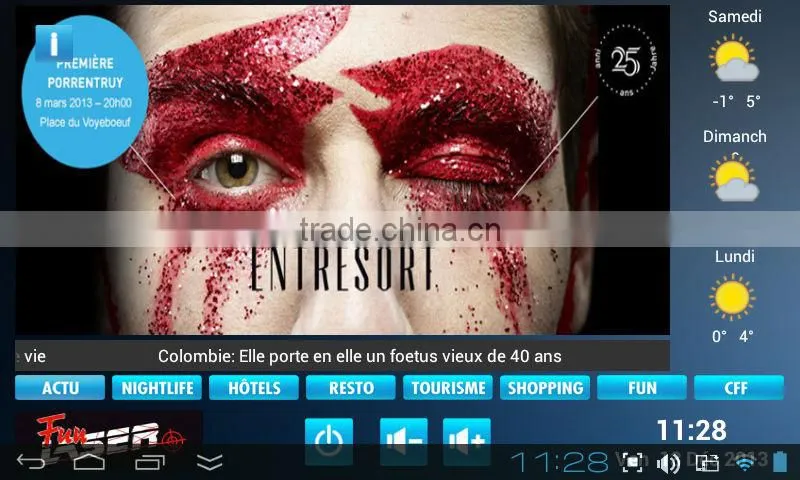

Version 4: Headrest monitor plays the ads stored in web server
Server:
CUSTOMIZED FUNCTION:
Headrest monitor automatically boots up after power is connected (without pressing power button) |
|
Headrest monitor sleeps when car power is disconnected (at the same time battery is connected), wake up when car power is reconnected. |
Set the power button to switch the screen on and off |
Set the power button to menu button |
Print your logo on the surface |
HOW TO ORDER A SAMPLE? |
Steps:
- Tell us what screen size and what optional items you choose.
- After receiving your email, we send PI to you.
- You fullfill the payment listed on PI.
- We ship the sample in 7 working days after receiving payment.
