Specifications
1:high accuracy2:CE certification
3: this machine have 24 years produce experience
Application:
This machine is suitable for printing roll plastic film, non-woven cloth, thin leather, paper, aluminum foil, cloth and various soft packages with excellent performance and it is a kind of ideal printing equipment for wine box, shoe bag, milk film and vest bag.
Technical Data:

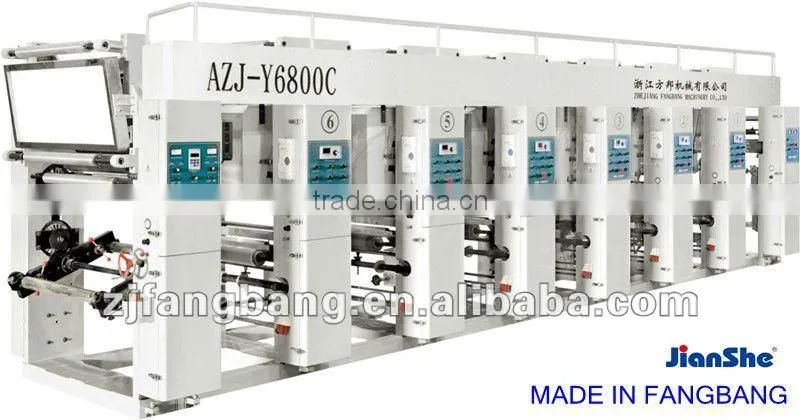

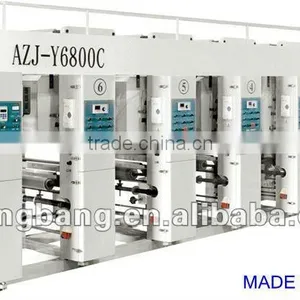

| Type | AZJ-Y6600C | AZJ-Y6800C | AZJ-Y61000C |
| Effective Printing Width | 600mm | 800mm | 1000mm |
| Max.Width of Web | 620mm | 820mm | 1020mm |
| Max.Printing Speed | 80m/min | 80m/min | 80m/min |
| Max.Mechanical Speed | 100m/min | 100m/min | 100m/min |
| Max.Diameter of Unwind/Rewind | 600mm | 600mm | 600mm |
| Inside Diameter of Roll Core | 76mm | 76mm | 76mm |
| Diameter of Printing Cylinder | 70∼270mm | 70∼270mm | 70∼270mm |
| Accuracy of Registration | ±0.2mm | ±0.2mm | ±0.2mm |
| Tension Control Range | 3∼25kg/Full Width | 3∼25kg/Full Width | 3∼25kg/Full Width |
| Heating Power of Oven | 28.8Kw | 36Kw | 43.2Kw |
| Total Power | 38.6Kw | 47.5Kw | 56.6Kw |
| Weight of Machine | 8500kg | 9500kg | 10500kg |
| Overall Dimension | 9300*2300*2300MM | 9300*2500*2300MM | 9300*2700*2300MM |
Fangbang is continuously seeking for development of their products. For this reason.we reserves the right to supply the improved product without advance notice.
Performance and Features
1. The latest improved gear box,360°non-stopping registration device.
2:Pneumatic doctor blade,transverse reciprocating motion.
3:Closed type oven,automatic constant temperature system
4)side and up double drying oven system
5)Unwinding and in feeding equipped with auto tension controller and magnetic powder brake.
6)Rewinding and out feeding adopt magnetic powder clutch to control the tension.
7)Turret type unwinding and rewinding machanism, receiving and replacing material without stopping the machine
8)inflatable air shaft for unwinding/ rewinding material loading
9)Printing linear speed and meter indication
10)Pneumatic printing impress roller and traction impress roller.
11) Pneumatic nip roller for in feeding and out feeding
12)Main motor: electromagnetic speed regulation motor

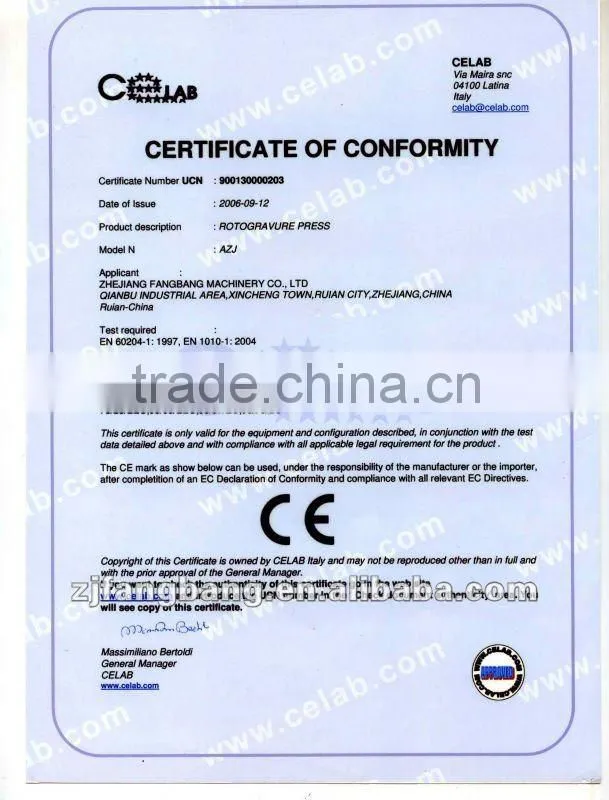

CE CERTIFICATION:
