Low Price 1.8 Ton Small Grapple Log Loader for Sale
1. Our ZL18F wheel loader has fully hydraulic steering system, power shift transmission, easier operation and easier maintenance
2. Our machine has Euro iii engine (Chinese famous brand engine, EPA engine and Japanese imported engine is optional)
3. Comfortable operation environment, air conditioner, back camera is optional
4. Higher dumping and longer arm of wheel loader could be customized
5. We could customize the painting of wheel loader as per request of clients
6.Multifunctional Wheel Loader, the machinery is of high quality and competitive price
| Item | Specifications | |||||
| Total weight | kg | 4370 | ||||
| Rated Load | ton | 1.8 | ||||
| Rated Bucket Capacity | m3 | 0.7 | ||||
| Max.Gradeability | ° | 30 | ||||
| Dumping Height | mm | 3200 | ||||
| Overall Dimemsions | mm | 5750x2020x2700 | ||||
| Min.Turning Radius | mm | 4600 | ||||
| Engine Model | weifang huafeng 4102 | |||||
| Type | In-line,Water-colled,Four-stroke,Direct injection, four- cylinder | |||||
| Rated Power | kw | 47 | ||||
| Rated Speed | rpm | 2400 | ||||
| Gear box | countershaft powershift gearbox | |||||
| Torque converter | YJ265 | |||||
| Gear Shift | 2F2R | |||||
| Max.Speed | km/h | 25 | ||||
| Model of Axle | Hub Reduction Axle | |||||
| Wheel Base | mm | 2300 | ||||
| Type | 20.5-16 | |||||
| Hydraulic System Pressure | mpa | 16 | ||||
| Rising time | s | ≤ 5 | ||||
| Total Cycle Time | s | ≤ 9 | ||||
| Function Of Leveling Automatically | Yes | |||||
| Service Brake | Hydraulic,Disk Brake on 4 wheels | |||||
| Parking Brake | manual Flexible Shaft Control Disc Brake | |||||
| Front Tyre Pressure | Mpa | 0.3 | ||||
| Rear Tyre Pressure | Mpa | 0.28 | ||||

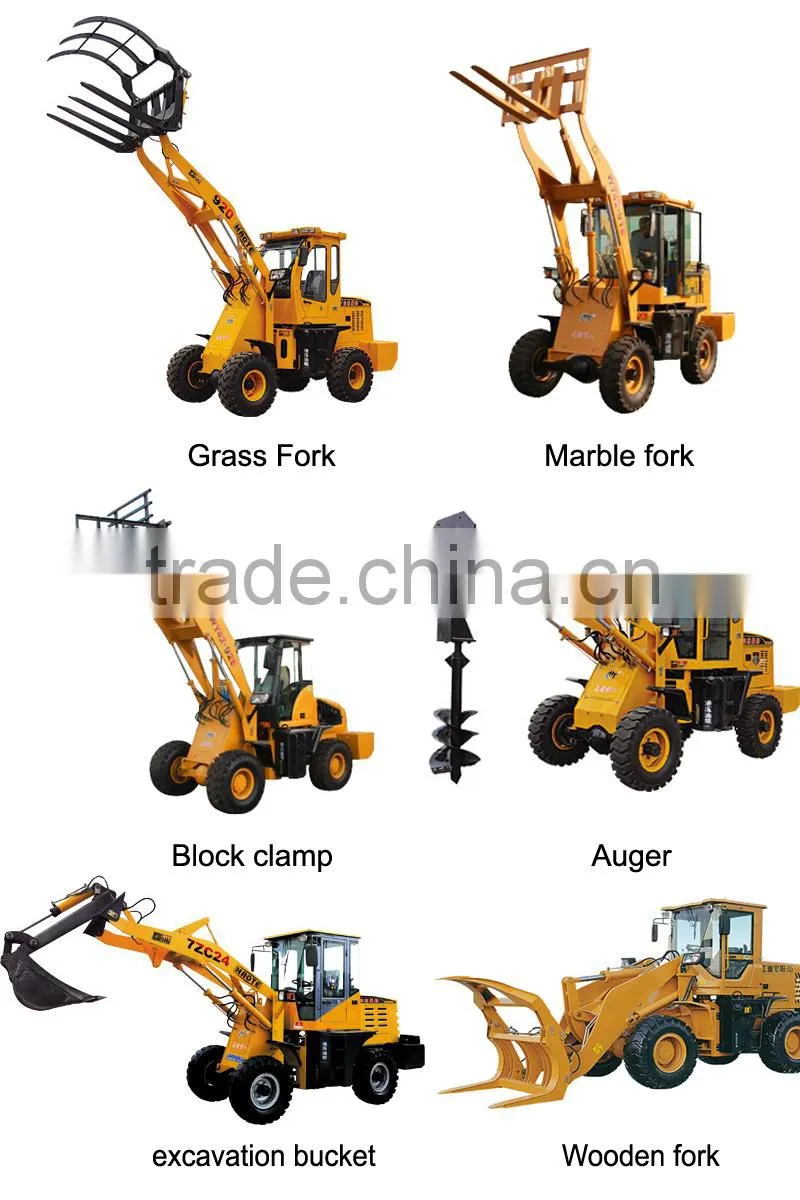

Our mini wheel loader is multifunctional; we offer many optional attachments which could be used in different fields.
Auger, Drum folder, Grapple forks, Barrel/block clamp, Grapple bucket, 4 in 1 Bucket, Snow Blade and so on.
Qingdao Brilliant Industry & Trade Co., Ltd.
With 20 years experience in the field of engineering industry also under the support by XCMG which is the No. 1 Chinese construction machinery manufacturer, our products has been well recognized by the customers all around the world as the symbol of reliable performance, competitive price, advanced technology and sincere services.

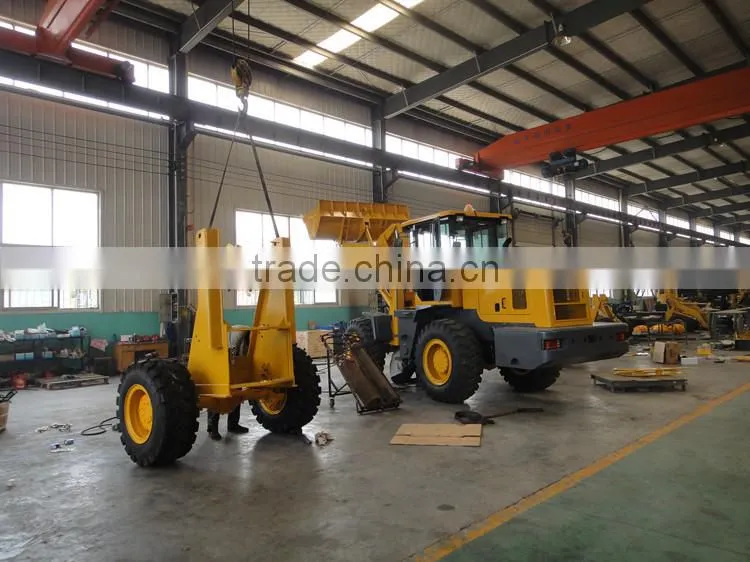

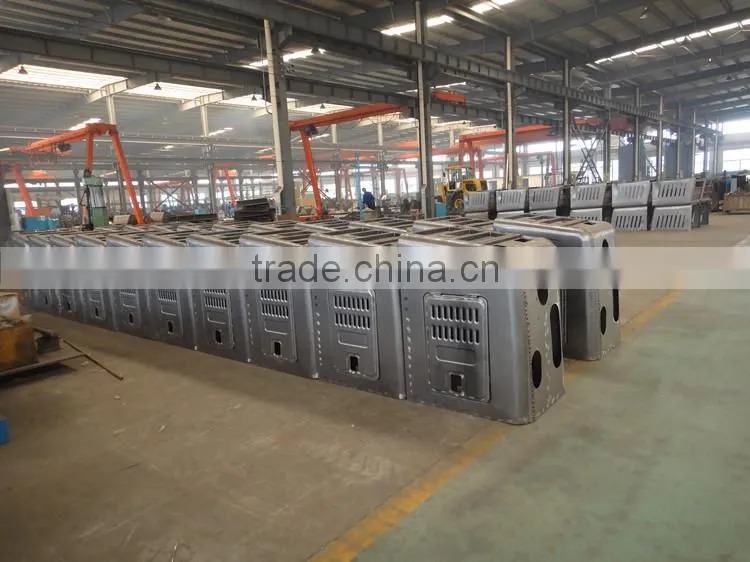

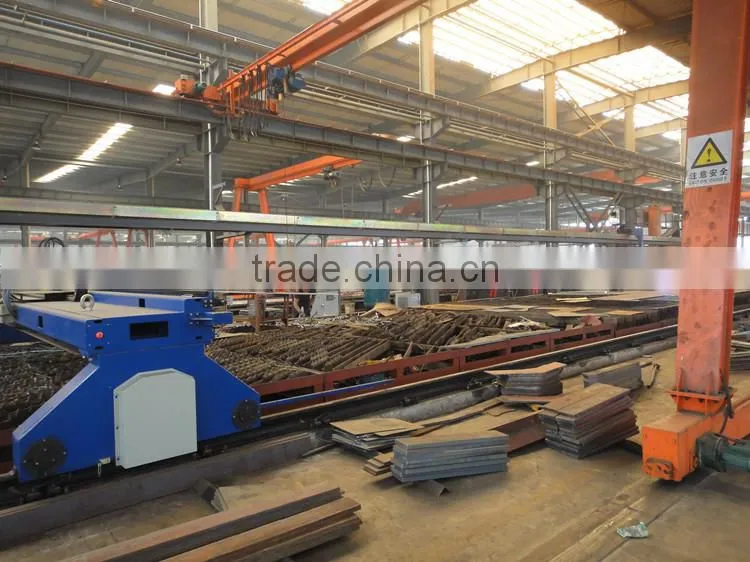

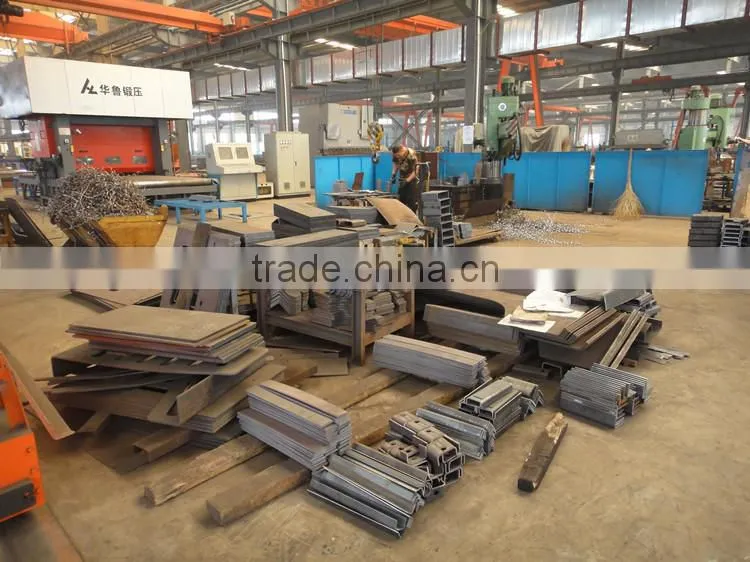

Our Well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfactions, we could also offer OEM services.
SGS Serial NO. |
QIP-ASI145346 |
Audit Date |
2-Jul-14 |
Company Name |
Qingdao Brilliant Industry & Trade Co., Ltd. |
Business Type |
Manufacturer |
Year of Establishment |
Mar 14,2014 |
Registered Capital |
83468.27 USD |
Products |
Excavator, Wheel Loader, Bulldozer, Forklift and so on |
Number of Employees |
5~10 |
Main Markets |
Africa, Asia,Europe,South America |
