Professional Design Kawasaki 70 Front End Loader Parts
>>Products Features
1. Our ZL16F wheel loader has fully hydraulic steering system, power shift transmission, easier operation and easier maintenance
2. Our machine has Euro iii engine (Chinese famous brand engine, EPA engine and Japanese imported engine is optional)
3. Comfortable operation environment, air conditioner, back camera is optional
4. Higher dumping and longer arm of wheel loader could be customized
5. We could customize the painting of wheel loader as per request of clients
6.Multifunctional Wheel Loader, the machinery is of high quality and competitive price
| Specification | ||||||
| Model No. | ZL16F | |||||
| Rated Load | ton | 1.6 | ||||
| Total weight | kg | 3230 | ||||
| Rated Bucket Capacity | m3 | 0.6 | ||||
| Max.Gradeability | 30° | |||||
| Dumping Height | mm | 3200 | ||||
| Overall Dimemsions | mm | 5600x1900x2650 | ||||
| Min.Turning Radius | mm | 4300 | ||||
| Operating Weight | kg | 2700 | ||||
| Engine | ||||||
| Model | wuxi sida 490 | |||||
| Type | In-line,Water-colled,Four-stroke,Direct injection, four- cylinder | |||||
| Rated Power | kw | 39 | ||||
| Rated Speed | rpm | 2400 | ||||
| Transmission | ||||||
| Gear box | countershaft powershift gearbox | |||||
| Torque converter | YJ265 | |||||
| Gear Shift | 2F2R | |||||
| Max.Speed | km/h | 25 | ||||
| Model of Axle | Isuzu Axle | |||||
| Wheel Base | mm | 2200 | ||||
| Hydraulic System | ||||||
| Hydraulic System Pressure | Mpa | 16 | ||||
| Raising Time | s | ≤ 5.0 | ||||
| Total Cycle Time | s | ≤ 9.0 | ||||
| function of leveling automatically | Yes | |||||
| Brake system | ||||||
| Service Brake | Hydraulic,Expansion-shoe Brake on 4 wheels | |||||
| Parking Brake | Drum-Type Shoe Brake | |||||
| Type | ||||||
| Type Specification | 14/90-16 | |||||
| Front Tyre Pressure | Mpa | 0.3 | ||||
| Rear Tyre Pressure | Mpa | 0.28 | ||||
Our mini wheel loader is multifunctional; we offer many optional attachments which could be used in different fields.
Auger, Drum folder, Grapple forks, Barrel/block clamp, Grapple bucket, 4 in 1 Bucket, Snow Blade and so on.
ZL16F wheel loader adopts famouse brand engine which can gurantee the good performance and high quality.Utilizing baking finish craft, which can improve the surface finish and avoid the problem of peeling off, crack,bubble of paint.We own professional design team so that we can accept customized order as per your request. We can provide cheap factory price.

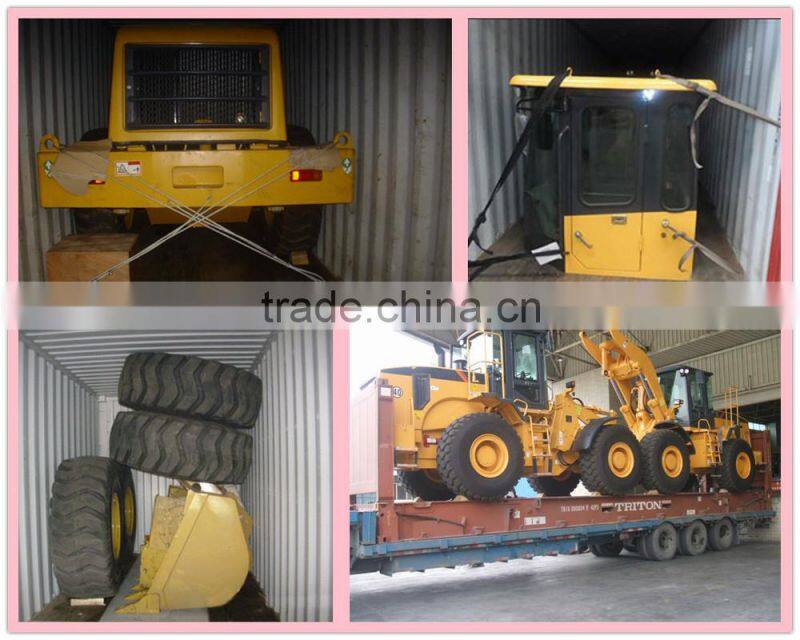

Our packaging and shipping are professional and dependable!
What is ZL16F's warranty?
- The warranty period of the main machinary is one year; enough free easily damaged parts will be given to you along with the machinery!
What is ZL16F's MOQ?
- 1 set.
- It is optional, any color and any pattern!
We have many kinds of mini wheel loaders for you to choose from!
| Items | ZL10F | ZL15F | ZL16F | ZL18F |
| Rated Load(ton) | 1 | 1.5 | 1.6 | 1.8 |
| Total weight(kg) | 2700 | 3300 | 3600 | 4800 |
| Rated BucketCapacity(m3) | 0.4 | 0.6 | 0.8 | 1 |
| Max.Gradeability | 30° | 30° | 30° | 30° |
| Dumping Height(mm) | 2700 | 2700 | 3200 | 3200 |
| Overall Dimemsions(mm) | 4800*1600*2470 | 5000*1610*2710 | 5300*1770*2750 | 5700*2020*2800 |
| Min.Turning Radius(mm) | 3900 | 4300 | 4300 | 4600 |
| Items | ZL20F | ZL28F | ZL30F | ZL36F |
| Rated Load(ton) | 2 | 2.5 | 2.8 | 3 |
| Total weight(kg) | 5200 | 5500 | 6800 | 9700 |
| Rated BucketCapacity(m3) | 1.1 | 1.2 | 1.5 | 1.8 |
| Max.Gradeability | 30° | 30° | 30° | 30° |
| Dumping Height(mm) | 3200 | 3200 | 3500 | 3200 |
| Overall Dimemsions(mm) | 5800*2170*2880 | 5800*2170*2880 | 6400*2180*2900 | 7500*2430*3120 |
| Min.Turning Radius(mm) | 4600 | 4600 | 4800 | 5800 |
Welcome to visit our factory,which is located in Qingzhou City, Shandong Province!
Qingdao Brilliant Industry & Trade Co., Ltd.
With 20 years experience in the field of engineering industry also under the support by XCMG which is the No. 1 Chinese construction machinery manufacturer, our products has been well recognized by the customers all around the world as the symbol of reliable performance, competitive price, advanced technology and sincere services.
Our Well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfactions, we could also offer OEM services
SGS Serial NO. |
QIP-ASI145346 |
Audit Date |
2-Jul-14 |
Company Name |
Qingdao Brilliant Industry & Trade Co., Ltd. |
Business Type |
Manufacturer |
Year of Establishment |
Mar 14,2014 |
Registered Capital |
83468.27 USD |
Products |
Excavator, Wheel Loader, Bulldozer, Forklift and so on |
Number of Employees |
5~10 |
Main Markets |
Africa, Asia,Europe,South America |
Contact:
Sales personnel:Grace
Tel: 0086-532-80907506
Fax:0086-532-82801885
Skype:brilliantmachinerygrace
Any comment&question,please contact with us freely!
We will try our best to meet your request!
Thanks for your valuable time!
