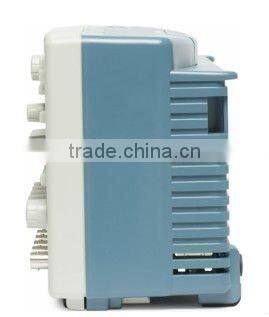

Tektronix TDS2002C 70MHz Digital Storage Oscilloscopes

Name: Tektronix TDS2002C 70MHz Digital Storage Oscilloscopes
Brand: Tektronix
SKU: 114374841
Availability: InStock

US$ 1,080 - 1,130 MOQ: 1 Set

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

Tektronix

Model Number:

TDS2002C

Shenzhen Meiruike Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name Tektronix

Model Number TDS2002C

TDS2000C Series Digital Storage Oscilloscopes

	TDS2001C	TDS2002C	TDS2004C	TDS2012C	TDS2014C	TDS2022C	TDS2024C
Display (QVGA LCD)	TFT	TFT	TFT	TFT	TFT	TFT	TFT
Bandwidth*³	50 MHz	70 MHz	70 MHz	100 MHz	100 MHz	200 MHz	200 MHz
Channels	2	2	4	2	4	2	4
External Trigger Input	Included on all models
Sample Rate on Each Channel	500 MS/s	1.0 GS/s	1.0 GS/s	2.0 GS/s	2.0 GS/s	2.0 GS/s	2.0 GS/s
Record Length	2.5k points at all time bases on all models
Vertical Resolution	8 bits
Vertical Sensitivity	2 mV to 5 V/div on all models with calibrated fine adjustment
DC Vertical Accuracy	±3% on all models
Vertical Zoom	Vertically expand or compress a live or stopped waveform
Maximum Input Voltage	300 V_RMS CAT II; derated at 20 dB/decade above 100 kHz to 13 V_p-p AC at 3 MHz
Position Range	2 mV to 200 mV/div +2 V >200 mV to 5 V/div +50 V
Bandwidth Limit	20 MHz for all models
Input Coupling	AC, DC, GND on all models
Input Impedance	1 Mohm in parallel with 20 pF
Time Base Range	5 ns to 50 s/div	5 ns to 50 s/div	5 ns to 50 s/div	2.5 ns to 50 s/div	2.5 ns to 50 s/div	2.5 ns to 50 s/div	2.5 ns to 50 s/div
Time Base Accuracy	50 ppm
Horizontal Zoom	Horizontally expand or compress a live or stopped waveform
