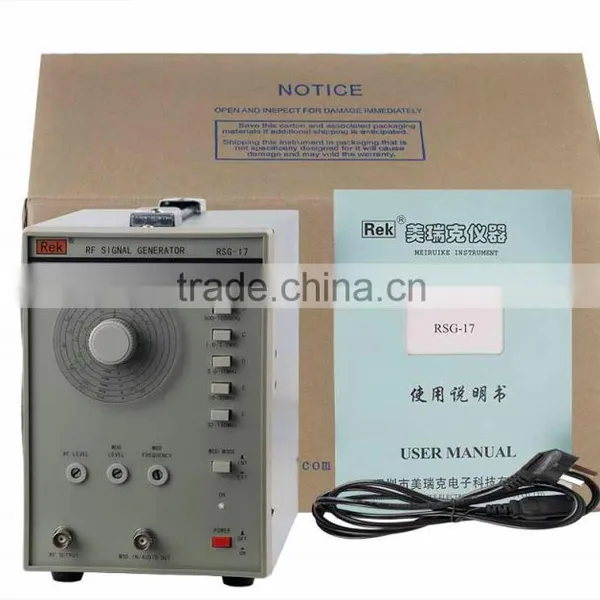

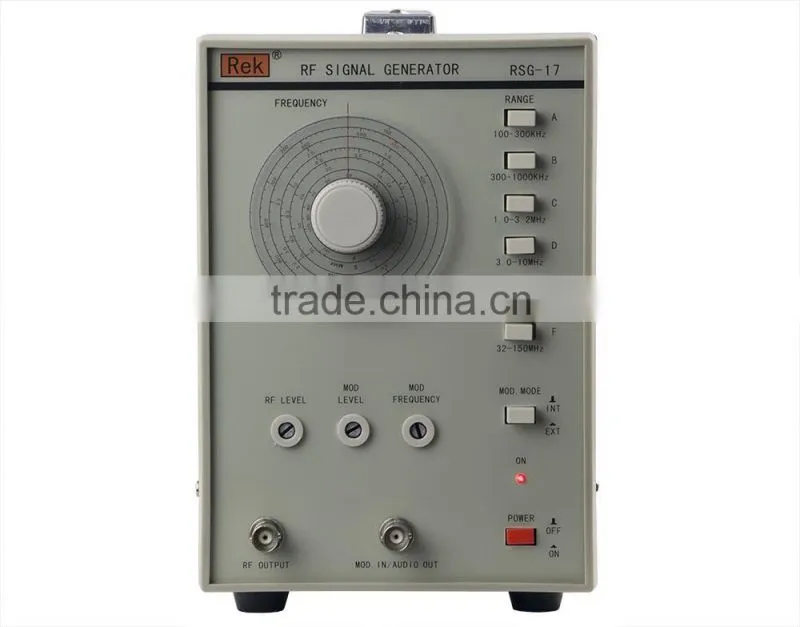

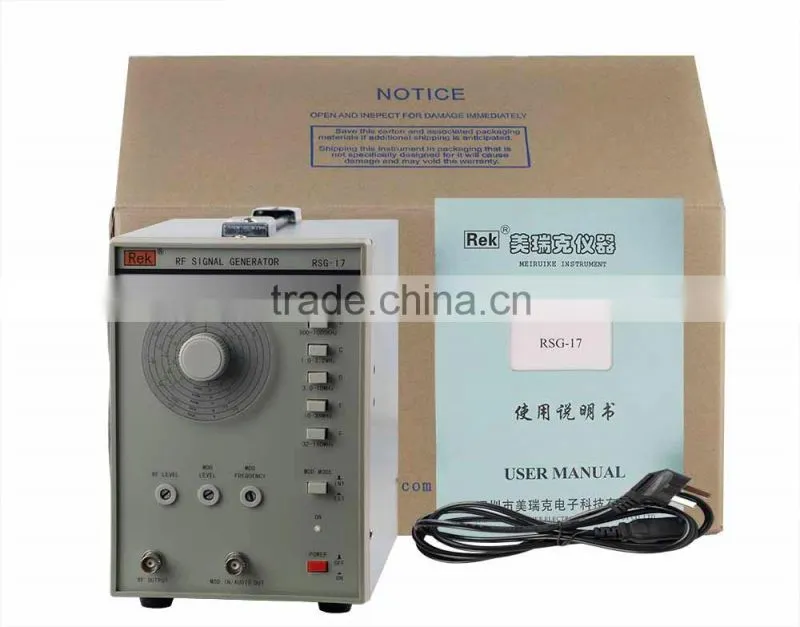

RSG-17 High-frequency Signal Generator
US$ 290 - 292
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Rek
Model Number:
RSG-17
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RSG-17 TYPE HIGH FREQUENCY SIGAL GENERATORUS$ 290 - 292MOQ: 1 Set -
RAG-101 TYPE LOW FREQUENCY SIGNAL GENETRAOTRNegotiableMOQ: 1 Set
-
RAG-101 Low-frequency Signal GeneratorUS$ 275 - 280MOQ: 1 Set
-
Signal Generator RSG-17 100khz-150mhzUS$ 290 - 292MOQ: 1 Set
-
RF Siganl Generator RSG-17 Hi-frequencyUS$ 290 - 292MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
Rek
Model Number
RSG-17
RF signal generator RSG-17 High-frequency Signal Generator
Frequency Channel |
A:100kHz to 300kHz |
B:300kHz to 1MHz | |
C:1MHz to 3.2MHz | |
D:3MHz to 10MHz | |
E:10MHz to 35MHz | |
F: 35MHz to 150MHz | |
Frequency Range |
100kHz to 150MHz(3 times harmonic wave up to 450MHz) |
Frequency Accuracy |
±5% |
Output Impedance |
1000Ω |
Radio Frequency Output |
Over 100 mvrms(when frequency ≤35MHz) |
Level Control |
1m V-100 m V |
Internal Modulation |
150hz to 1.5khz |
External Modulation |
50Hz to 20k Hz for any setting |
Nominal Operation Temperature /Humidity |
10°C to 35°C,85%RH |
Power Supply |
220V/110V±10%,50/60Hz |
Power Dissipation |
8w |
Dimensions |
315mm×200mm×270mm |
Weight |
3.5kg |
