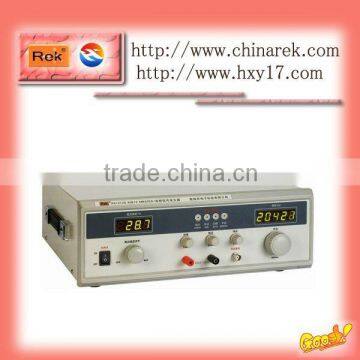

Wholesale RK1212F Rek 80VA 80W Audio Sweep Signal Generator
- 500 Piece / Pieces per Month
- Shenzhen
- Credit Card PayPal
You May Like
-
Factory RK1212E Rek 60 W Audio Sweep Signal Generator
-
Factory RK1212BL+ 20W Audio Sweep Generator /sweep generator/Sweemar Scope/Audio sweeper
-
RK200A Barrery Inner Resistance Tester
-
RK200A Battery internal resistance tester Internal resistance of battery meter Internal Resistance of Battery Meter
-
LCR Meter(10kHz) RK2811C Bridge
-
LCR Meter RK2811C(10kHz) Digital Bridge
Product Details
Place of Origin | Guangdong, China | Brand Name | Rek | |
Model Number | RK1212F |
Product Description
Specifications
1)Sweep range :20 Hz~20 kHz2)Output Voltage (AC,8 Ohm ):0~25.5 Vrms
3)Sweep Time :1~20 S,Continuing adjust
4)Factory Product
*Frequency display,outpiut amplitude digital display,readout more accuragely,less error.
*Beginning and starting point can be..
RK 1212F Audio Sweep Generator
*Prpduct Details
*Audio Sweep Generator Base on novel RC oscillated technique,tiny sine distortion ,especially suitable for speaker
*Features:Audio Sweep Generator
*Base on novel RC oscillated technically suitable for speaker and MIC testing.
*Frequency display,outpiut amplitude digital display,readout more accuragely,less error.
*Beginning and starting point can be arbitrated adjusted.
*Large power supply,max to 100VA
Specifications:
*Frequency Range:20Hz-20kHz
*Sine wave distortion:0.8%
*Work mode:auto and manual sweep digit
*Sweep time:1 s to 20 s
*Sweep width: 1:1000
*Sine wave output amplitude:
0 to 12.8Vrms 8Ω load (RK1212BL/RK1212BL+) 20VA
0 to 18Vrms 8Ω load (RK1212D) 40VA
0 to 22Vrms 8Ω load (RK1212E)60VA
0 to 25.5Vrms 8Ω load (RK1212F) 80VA
0 to 28.3Vrms 8Ω load (RK1212G) 100VA
*Power supply: AC220V/110V±10%,50/60Hz
*Dimensions:370mm×355mm×140mm
*Weight:9.5kg to 13kg
Main technical specifications | |
Sweeping Range | 20Hz to 20KHz |
Output voltage(AC) | 0-25.5Vrms.8Ωload |
Output voltage accuracy | ±10% |
Frequency response | ±0.4dB(to1KHz-based) |
Distortion rate | ≤0.5%(100Hz20kHz) ≤0.8%(20Hz100kHz) |
Output power | 80VA |
Sweeping time | 1 to 20S |
Sweeping ratio | ≥1:1000 |
