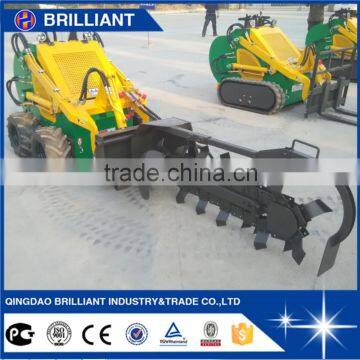

Mini Skid Steer Loader With Trencher Attachment/Angle Broom Attachment

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Qingdao/Shenzhen/Shanghai/Tianjin
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	Brilliant
Model Number	BI400	Place of Origin	Shandong, China
Type	Mini Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	224210601220mm	Rated Load	380kg
Certification	CE,ISO	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Mini Skid Steer Loader with Trencher Attachment/Angle Broom Attachment

Product Description

The BI400 is a mini skid steer loader designed for compact construction work.

It has a quick attach mount plate which makes it easy for an operator to connect different attachments.

The loader is designed for operation in temperatures typically experienced in earth moving

and construction work environments.Provisions may be required to operate in extreme temperatures

The BI400 should be operated, serviced, and repaired only by persons familiar with

its particular characteristics and acquainted with the relevant safety procedures.

Main Parameters

Performance parameters
Rated Load	kg	380-400
Bucket Capacity	m3	0.15
The most heavily lift	kg	395
Engine displacement	ml	627
Bucket breakout force	kg	550
Tipping load	kg	325
Max.Travel Speed	km/h	0-5.5
Operating Weight
Solid tyres bodywork	kg	860
Ordinary tire body	kg	860
Widened tire body	kg	850
Caterpillar vehicle	kg	900
Engine
Model		B&S
Rated Power	hp	23
Rotating speed	rpm	3600
noise	DB	95
Hydraulic system
System Pressure	Mpa	17
Working time
lift	s	4.22
tipping bucket	s	1.32
landing	s	3.28

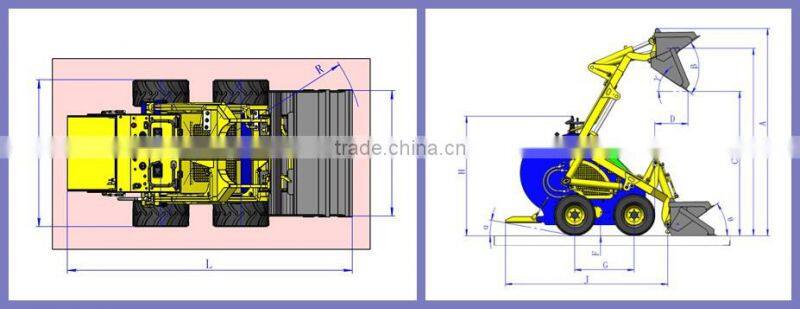

	Caterpillar vehicles	Solid tyres	Wide platform	Herringbone engineering births
AThe ing highly	2184mm	2115 mm	2155 mm	2194mm
BMax. pin shaft height	1975mm	1856 mm	1896 mm	1985 mm
CBiggest unloading heigh	1520 mm	1600 mm	1500 mm	1600 mm
DHigh unloading distance	405mm	388 mm	348 mm	350mm
βBucket angular	68°	55°	55°	68°
γBucket unloading Angle	33°	30°	30°	33°
αAngle of departure	10°	8°	12°	11°
δAccept dou Angle	35°	25°	25°	35°
HTotal height	1220 mm	1205 mm	1245 mm	1265 mm
FFrom ground height	105 mm	90 mm	130 mm	118 mm
Gwheelbase	630 mm	636 mm	636 mm	630mm
JNo bucket length	1722 mm	1752 mm	1752 mm	1752 mm
WTotal wide	1060 mm	1033 mm	1160mm	1150 mm
Kbucket width	980 mm	980 mm	980 mm	980 mm
LOverall length with bucket	2242 mm	2206 mm	2206 mm	2242 mm
RFront turning radius	1292 mm	1307 mm	1307 mm	1292 mm

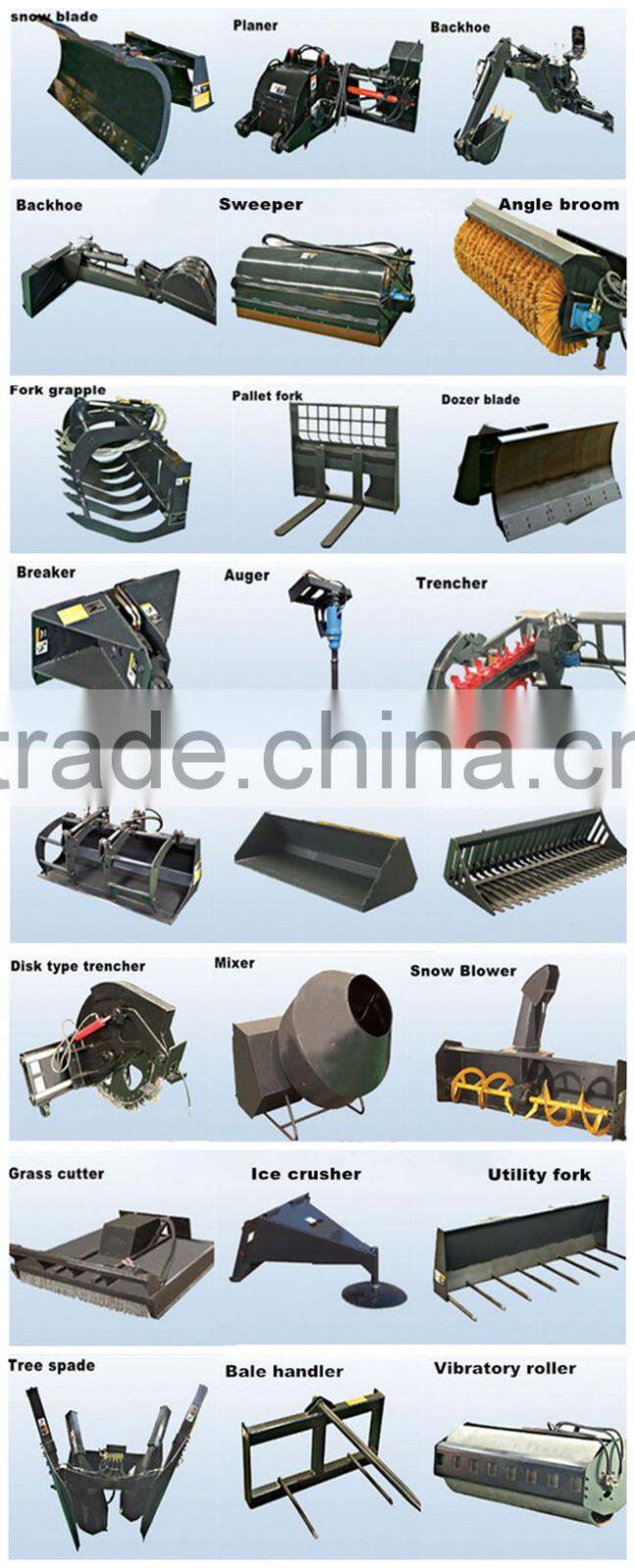

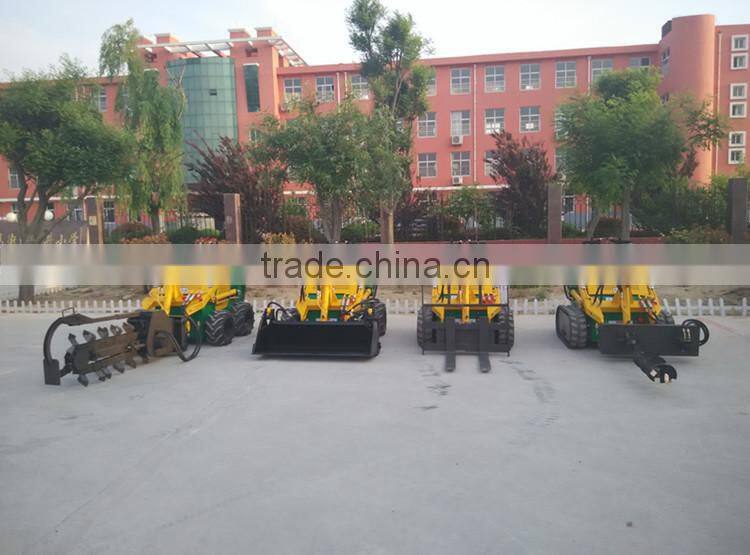

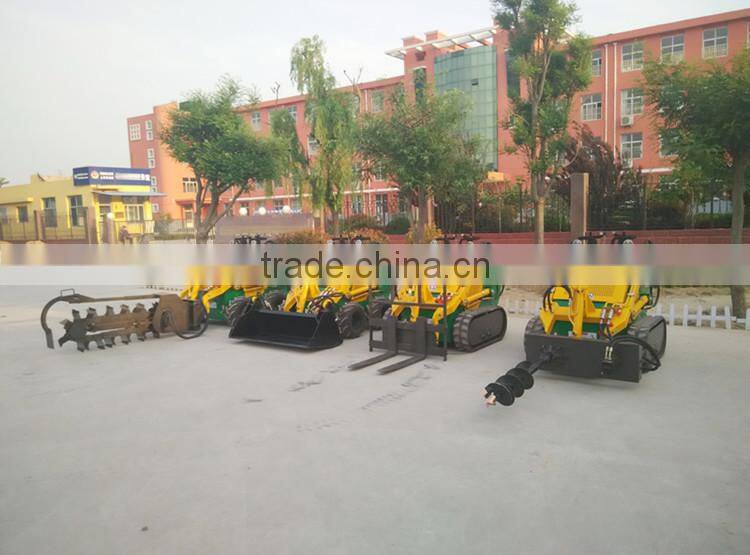

Optional Attachments

Our skid steer loader is multifunctional; we offer many optional attachments which could be used in different fields.

Attachments like 4 in 1 bucket,Auger,Fork shovel,Trencher,Level,Ripper,Digger,Hydraulic breaker,Rotary plow and so on.

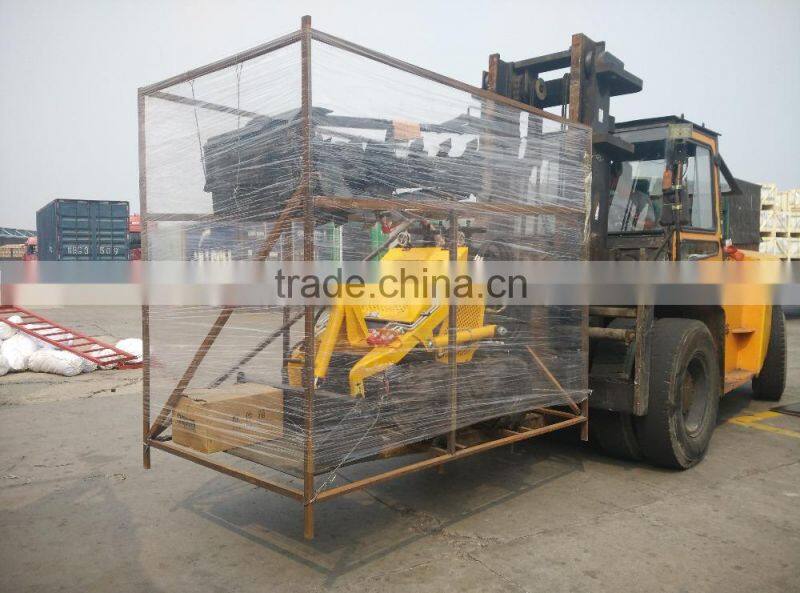

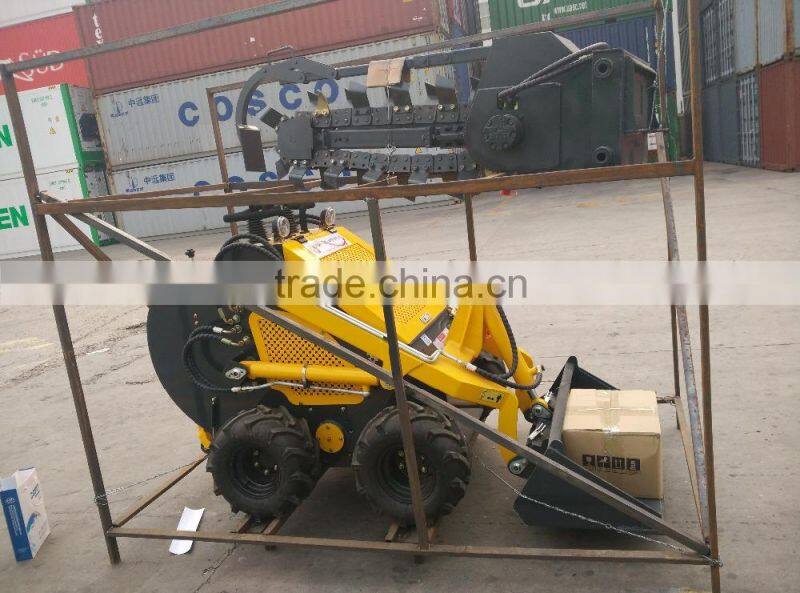

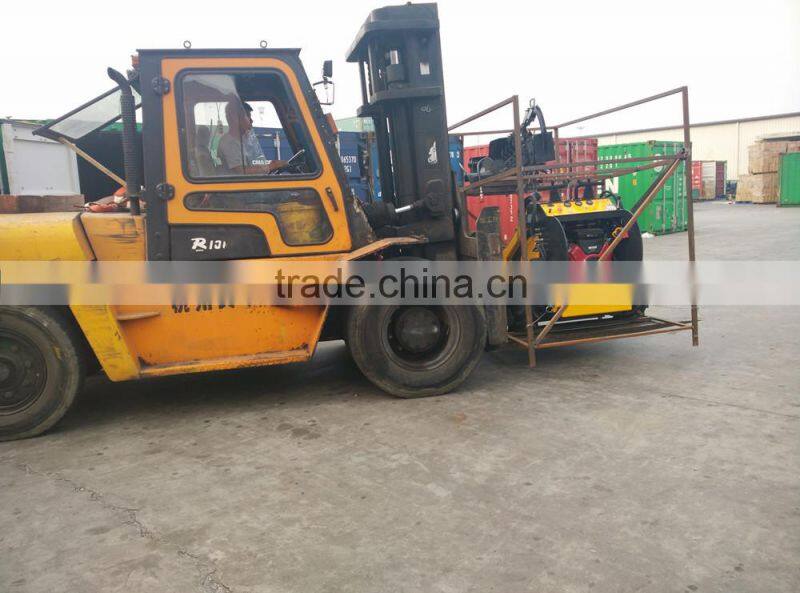

Packaging & Shipping

8 units in 20' container; 20 units in 40' container;

Our packaging and shipping are professional and trustworty!

Warranty

The warranty period of the whole machinary is one year;

The warrant period for its engine(brand:B&S) is three years;

enough wearing parts will be given to you freely along with the machinery!

each skid loader will be matched with a box of wearing parts.

Photos with Clients

FAQ

Who is BI400's designer?

The skid steer loader is designed by ourselves.

What is BI400’s Engine?

The engine brand is B&S (American engine),its power is 23hp.
Kohler engine or Chinese diesel engine is optional.

What’s BI400’s moving type?

Wheel loader or crawler loader.
Wheel can be engineering tire,rubber track,solid tire or turf tire.

Is BI400 easy to rust?

Sandblasting and electrophoresis technology are used to keep MJ400 away from rusting.

How thick is the steel plate?

10mm

Company Information

Qingdao Brilliant Industry & Trade Co., Ltd.

Qingdao Brilliant Industry and Trade Co., Ltd is a ISO9001, CE and BV certified professional manufacturer and authorized exporter specialized in construction machinery and industrial vehicle like excavator, forklift, wheel loader, bulldozer and so on...

With 20 years experience in the field of engineering industry also under the support by XCMG which is the No. 1 Chinese construction machinery manufacturer, our products has been well recognized by the customers all around the world as the symbol of reliable performance, competitive price, advanced technology and sincere services.

Our Well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfactions, we could also offer OEM services.

SGS Serial NO.	QIP-ASI145346
Audit Date	2-Jul-14
Company Name	Qingdao Brilliant Industry & Trade Co., Ltd.
Business Type	Manufacturer
Year of Establishment	Mar 14,2014
Registered Capital	83468.27 USD
Products	Excavator, Wheel Loader, Bulldozer, Forklift and so on
Number of Employees	5~10
Main Markets	Africa, Asia,Europe,South America

Contact:

Sales Personnel: Grace

Tel: 0086-532-80907506
Fax:0086-532-82801885
Skype:brilliantmachinerygrace

Any comment&question,please contact with us freely!
We will try our best to meet your request!
Thanks for your valuable time!
