China Supplier Combined Tin Bath Cover Brick Roof Fire Brick

China Supplier Combined Tin Bath Cover Brick Roof Fire Brick photo-1
China Supplier Combined Tin Bath Cover Brick Roof Fire Brick photo-2
China Supplier Combined Tin Bath Cover Brick Roof Fire Brick photo-3
Negotiable MOQ: 10 Tons (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Shenzi
Shape:
Block
Al2O3 Content (%):
≥58%
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Shenzi
Shape Block
Al2O3 Content (%) ≥58%







Product Description

china supplier combined tin bath cover brick roof fire brick



china supplier combined tin bath cover brick roof fire brick

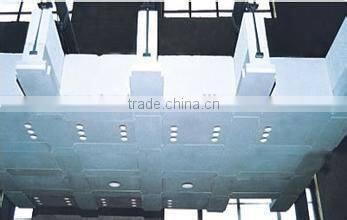

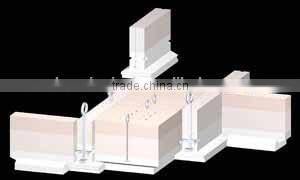

Combined Roof Brick of Tin Bath adopts the composite structure completely, it is composed by knock brick module, supported brick module and plug brick module for four sides supporting structure, so as to improve the reliability of the structure.

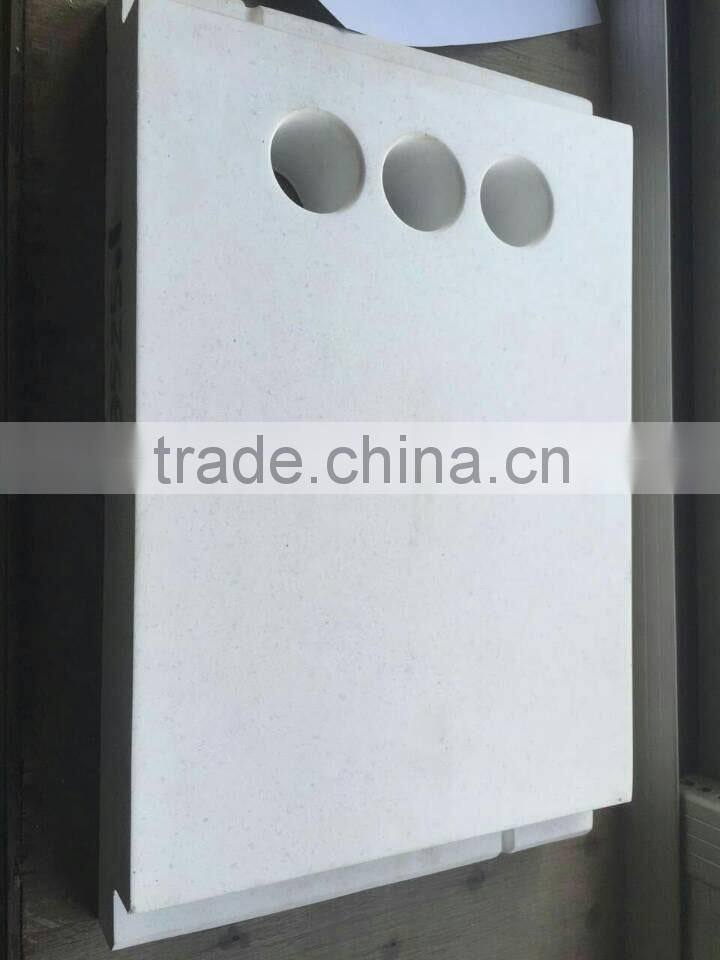

The hot surface material of the brick is made from sintered sillimanite brick, cold surface is made from two layers of lightweight insulation bricks, hanger adopts high temperature heat-resistant alloy steel, breast wall brick is made from lightweight mullite brick, its advantage is no vertical seam through up and down the whole roof brick, so punctate defect is difficult to appear on glass pane. This product is mainly used in float roof of tin bath and furnace roof system under 1300 operating temperature.

Specification

Specification



Item

Indicator

Al2O3 %

≥58

Fe2O3 %

≤1

R2O %

≤0.5

Refractoriness

≥1790

Bulk Density g/cm³

≥2.3

Apparent Porosity %

≤20

Cold Rupture Strength MPa

≥12

High Temperature Rupture Strength MPa(1100℃×0.5h)

≥10

Cold Crushing Strength MPa

≥50

Variation of Re-Burning Line 1200×2h

±0.1

Thermal Stability( 1000, water cooling)

≥25











Packaging & Shipping
china supplier combined tin bath cover brick roof fire brick
china supplier combined tin bath cover brick roof fire brick

The products are packed by wooden pallets with water-proof cover, then tightened with plastic or steel bandages,or do it as your requirment.

Production Process

Production Process

china supplier combined tin bath cover brick roof fire brick





Production Equipment

Production Equipment

china supplier combined tin bath cover brick roof fire brick





Company Information

Company Information

china supplier combined tin bath cover brick roof fire brickchina supplier combined tin bath cover brick roof fire brickchina supplier combined tin bath cover brick roof fire brickchina supplier combined tin bath cover brick roof fire brick



Formed in June 1998,Shandong Zibo Shenzi Refractory Materials CO.,Ltd mainly produces bottom refractory bricks in the tin bath for glass kilns and castable materials,big clay bricks,sintered AZS bricks,zircon mullite sintered bricks,low porosity bricks,high alumina bricks,various light weight bricks,fire clay bricks,sillimanite bricks,mullite bricks,ramming materials,casting materials,silicon carbide plate and support for ceramics kilns,sillimanite plate and support for ceramics kilns,and so on.

china supplier combined tin bath cover brick roof fire brickchina supplier combined tin bath cover brick roof fire brick

We has supplied float glass kilns users at home and abroad with complete sets of tin bath bottom bricks,big clay bricks and their matching products for over 300 lines,and exported to Indonesia,Iran,Saudi Arabia,Russia,Japan,Korea,Vietnam,Ukraine,Germany etc.

  Our company,on the spirit of existing by quality,developing by variety,taking innovation of  science and technology as the guide and wining the customers by good faith,will provide users all the convenience with excellence service,high quality products and favorable price!

FAQ

 china supplier combined tin bath cover brick roof fire brick

 About Reply:

We will reply to you immediately.

About Products:

According to your index and drawings.

About payment:

T/T, others could be discussed.

About  Delivery:

It depends on the quantity of your order.

About Samples:

Samples are available.

About Quality:

The products will be strictly inspected before shipment, so it could be guaranteed

About OEM:

We can do it.



Our Services

Our Services

china supplier combined tin bath cover brick roof fire brick



Dear Customer,

Our company main supply refractory materials of glass kiln,Cement Kiln,Lime Kiln,Coking Furnace Steel.If you need any product above,please provide us with the quantity,specifications and drawings,we will offer you timely.We are willing to cooperate and develop a better future with you!
