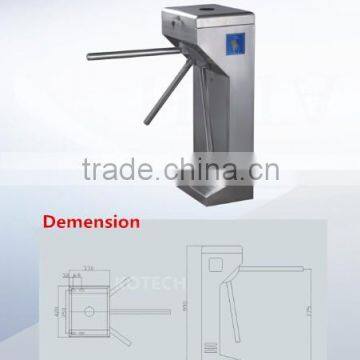

KO-KW301 Vertical type tripod turnstile
Functions and features:
1. Unique incomplete wheel transmission is adopted to make turnstiles held or unheld in zero position more accurate and reliable.
2. Running stable,little noise and no mechanical impact
3. Self-checking-power-on function,if power on,turnstile will auto get to be held.
4. Various working means can be set in the control panel menu,namely bi-direction card reading passing,or one direction card reading passing and another passing limits,or one direction card reading and another free passing etc.
5. If power off,arm will fall automatically while power on later,arm should be lift by hand.first press the arm with a little force and then lift it manually.
6. It is with RS485 connection for far control arm up and down to safisfy the special needs or fire control requirements.
7. It is with standard electrical interface to connect various kinds of readers and writers for easy integration and also computer far control and management can be realized by computer.
8. It will count the persons who have been passed thorugh automatically and will show the number by LED directly (LED is optional)
9. Passing direction will be shown by LED and passengers will know which direction is allowed to pass.
10. Card reading memory or card reading without memory function can be set in the control panel menu according to your request.
11. If working with software,the total-in-population can be set to satisfy special request.
12. Re-position function.After card reading,if passenger not throuth within the specific time,time and the limit passing time length can be set.
13. Card mouting is avaliable
14. Uncompleted wheel turning system is adopted for locking the turnstile in zero,and unlocking will be more reliable and accurate
15. Optional:1)counter and counter display;
16. Access controller or card reader
17. Key by-pass
parameters
1. Power Supply:AC220V±10V,50Hz/AC110±10V,60Hz
2. Temperature:-15 to 60 degrees
3. Humidity:<95%,without concretion
4. passage width:600MM
5. passing speed:40 persons/min(IC card)
6. power consumption:100W
7. Input interface:+12V electrical signal or impulse signal with width more than 100ms,drive current>10Ma
8. Communication interface RS485(Distance<=1200m)
9. Material:Housing-304 stainless steel arm -stainless steel
10. Dimension:420*330*990mm.Arm dimension:Ø35*500mm
11. Working Environment indoors or outdoors with shed
