KO-1601 Elevator Parts Type Elevator control board Users Manual
- Product Description
-

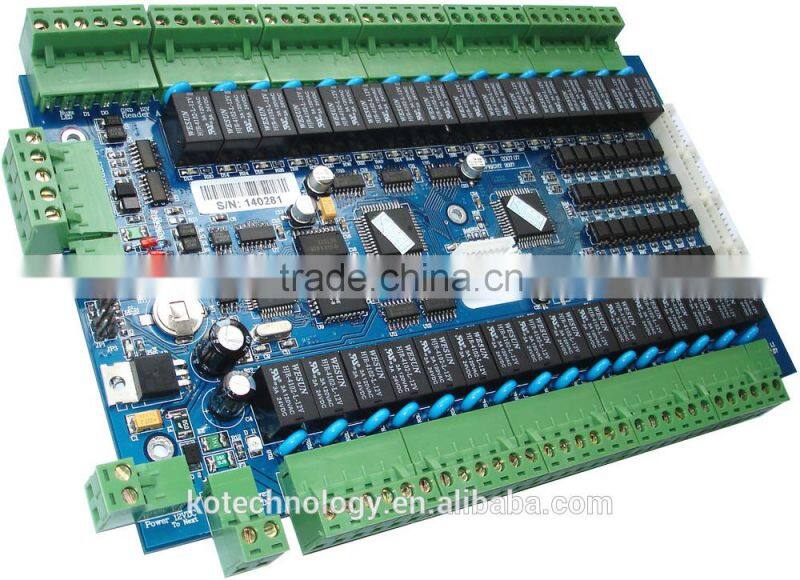

KO-1601 Elevator Controller Board
rd Size: 218mm × 136mm × 32mm
Motherboard Color: dark blue (standard board)
Motherboard Weight: about 450 grams
Case Size: 285mm × 240mm × 82mm
Chassis Color: Black
Chassis Weight: Approximately 1,400 g (large box 2400 g)
Working temperature: <60 °C
Humidity: 10% ~ 95% R.H
Working voltage: DC 12V
Operating Current: <100mA
Rated Power: ≤ 5W
Power protection: 10 years
Interface Configuration
Card Reader: 2 (WG WG reader Motorola and other means of communication signal input devices)
Fire Inputs: 1
Floor buttons: 16
Limit Inputs: 1
Control output: 16 (dry contact output, no voltage)
Performance Parameters
Card Capacity: 20,000
Record stock: 60,000
Alarm Capacity: 60,000
Communication: 485
Communication distance: 1200 m (actual project application control in the 800 meters or less is appropriate)
Reader Communication: wiegand (Wiegand) mode
Communication distance: 100 meters
Open the door: Card, password, card + password, dual card, the first card to open the door, software, fire alarm, button, timer
