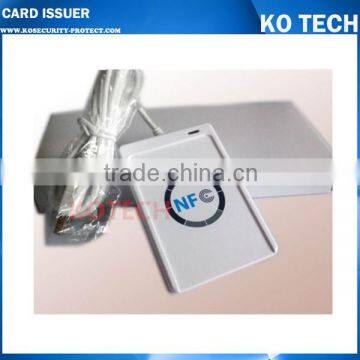

Android NFC Card Reader 13.56MHZ Support ISO14443 Type A & B

Shenzhen KO Technology Co., Limited

US$ 10 - 70 MOQ: 10 Units

Key Specifications

Brand Name:

Model Number:

NFC

Type:

CF Card

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Brand Name KO

Model Number NFC

Type CF Card

Interface USB

Card Slots All in 1 / Multi in 1

Installation External

Place of Origin Hong Kong, China

android NFC Card Reader 13.56MHZ support ISO14443 Type A & B

Features

USB 2.0 Full Speed Interface

CCID Compliance

Smart Card Reader:

Read/write speed up to 424 kbps

Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)

Supports ISO 14443 Type A and B cards, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags

Built-in anti-collision feature (only 1 tag is accessed at any time)

Application Programming Interface:

Supports PC/SC

Supports CT-API (through wrapper on top of PC/SC)

Peripherals:

User-controllable bi-color LED

User-controllable buzzer

Universal Serial Bus Interface
Power source	From USB
Speed	12 Mbps(Full Speed)
Supply voltage	Regulated 5V DC
Supply Current	200mA (maximum) 50Ma (standby),100Ma (normal)
Contactless smart card interface
Standard	ISO/IEC 18092,ISO14443A and B, FeliCa
Protocol	Felica protocol, T=CL protocol
Operation Frequency	13.56MHz
Smart card read/write speed	106kbps, 212 kbps, 424 kbps
Casing
Dimensions	98mm(L)X65mm(W)X12.8mm(H)
Weight	70 grams
Material	Polycartionate (PC)
Color	Pearl White
Antenna size	50X40mm
Operating distance	Up to 50mm
Built-in Peripherals
BI-Color LED	Bi-color LED, red and green
Buzzer	Monotone (optional)
Operating Conditions
Temperature	0~50 C
Humidity	10%~80%
Cable connector
Length	1m(USB)
Certifications/Compliance
PC/SC ,CCID,CE,FCC,VCCL,ROHS compliant
Microsoft WHOL 2000,XP,Vista 7
Device driver operating system support
Windows 2000, Server 2003,XP, Vista, Server 2008,7 Windows CE 5.0 Linux, Mac OS X
