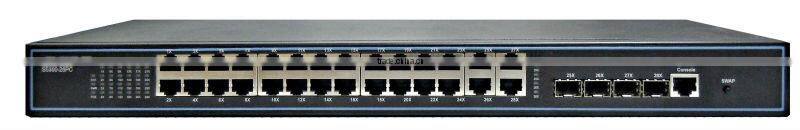

GCOM 24 ports POE Switch Network hub Price S5300 Series POE Switch
Network hub Price Specifications:
1. 1000 units Sells per Month
2. 1 pcs MOQ
3. 15 days delivery after received money
4. 1 year warranty
Network hub Price Overview:
S5300 series POE Switch are designed for class-carrier GE access and aggregation all L2+ full-Gigabit switches, they cover to all kinds of enterprise customer. It provides 24/28*10/100/1000Base-T or 1000Base-X SFP for the demand of cost-effective Gigabit access / aggregation.S5300 adopts high performance processor to provide full speed forwarding and line-dormant capacity to coordinate with NGGN unified software. It supports strong ACL and IP+MAC+ports binding etc .
Network hub Price Specifications:
Item |
S5300-28TC |
S5300-28PC |
S5300-52TM |
S5300-52SM |
Backplane capacity |
100Gbps |
100Gbps |
100Gbps |
100Gbps |
Interface switching capacity |
48Gbps |
56Gbps |
96Gbps |
96Gbps |
Forwarding capacity |
35.7Mpps |
41.7Mpps |
78Mpps |
78Mpps |
Memory and flash |
128MB SDRAM memory and 4MB flash |
|||
Power |
AC:Input 90~260V,50~60Hz; |
|||
Power consumption |
Full-loaded≤30W Idle≤16W |
Full-loaded≤37W Idle≤16W |
Full-loaded≤40W Idle≤16W |
Full-loaded≤45W Idle≤20W |
Dimensions (width x depth x height)) |
440mm×44mm×360mm |
440mm×44mm×360mm |
440mm×44mm×360mm |
440mm×44mm×360mm |
Weight (Full-loaded) |
≤5kg |
≤5kg |
≤5kg |
≤5kg |
Environmental requirements |
Working temperature:-15°C~55°C Storage temperature:-40°C~70°C Relative humidity:10%~90%,non-condensing |
|||
Network hub Price Business Features:
Item |
S5300-28PC |
|
L2 features |
MAC |
16K MAC address MAC Black Hole Port MAC Limit |
VLAN |
4K VLAN entries Port based QinQ PVLAN to realize port isolation and saving public-vlan resources GVRP |
|
Spanning tree |
STP/RSTP/MSTP Remote-loop-detect |
|
Port |
Bidirectional bandwidth control, configure entry/exit and the smallest 64K control particle Static and LACP Port- mirroring of 1:1 or N:1 |
|
Security features |
User’s security |
ARP anti-Flooding, configure ARP traffic safety threshold and inhibition ARP packet ARP anti-Spoofing, configure ARP inner and outer MAC check and static ARP checklist and drop / flood action IP+MAC+port+VLAN binding manually Port Isolation, configure hardware isolation of each port Bind MAC address to port and MAC address filtration on port IEEE 802.1x and AAA/Radius authentication |
Device security |
Anti-DOS attack SSHv2 Secure Shell SNMP v3 encryption Telnet based on Security IP Prevent unauthorized user |
|
Network security |
One button binding based on dynamic ARP table Manual binding parameter of IP ,VLAN ID,MAC and port etc. L2-L7 ACL flow filtration Auto-shutdown port in storm Update user’s location through DHCP Option82 and PPP |
|
Service features |
ACL |
Activate standard and extended ACL Time Range ACL strategy Flow classification based on SMAC,DMAC,VLAN,SIP,DIP,IP IP(IPv4/IPv6) ,TCP/UDP port num, protocol type etc. Packet filtration of L2~L7 IP header with 80bytes |
QoS |
Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow Packet mirror and redirection of interface and self-defined flow Supports Priority remark to port or self-defined flow and provide 802.1P, DSCP priority and Remark Super queue scheduler based on port and self-defined flow. Each port/ flow supports 8 priority queues and scheduler of SP, WRR and SP+WRR |
|
Multicast |
IGMPv1/v2/v3 Snooping IGMP Filter MVR multicast VLAN register and cross VLAN multicast replication IGMP Fast leave IGMP Proxy |
|
Reliability |
Loop protection |
EAPS and GERP Loopback-detection |
Link protection |
FlexLink RSTP/MSTP LACP |
|
Device protection |
Backup of host program and configuration files |
|
Maintenance |
Network maintenance |
Port real-time, utilization and transmit/receive statistic based on CLI Port real-time, utilization and transmit/receive statistic based on CLI 802.3ah Ethernet OAM Syslog and RFC 3164 BSD syslog Protocol Ping and Traceroute |
Device management |
CLI, Console port, Telnet and WEB SNMPv1/v2/v3 RMON (Remote Monitoring)1,2,3,9 group MIB NTP GN.LinkⅡ Server NGBNView network management |
|
Network hub Price Purchase Information:
Product name |
Product description |
S5300-28TC |
24*10/100/1000BaseT(can be AC220 or DC-48V) |

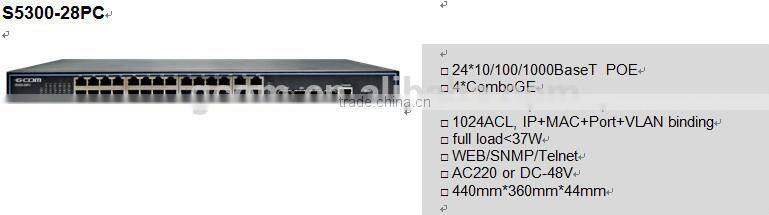

S5300-28PC |
24*10/100/1000BaseT, 4*ComboGE(1000Base-X SFP or 10/100/1000Base-T)(can be AC220 or DC-48V) |
S5300-52TM |
44*10/100/1000BaseT, 4*1000BaseX SFP, 4*10GE SFP+ Slots(can be AC220 or DC-48V) |
S5300-52SM |
44*1000BaseX SFP, 4*10/100/1000Base,4*10GE SFP+ Slots(can be AC220 or DC-48V) |
