PRO3000 Honeywell Access Control With Embedded Web Server Function
US$ 100 - 600
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
honeywell
Model Number:
PRO3000
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PRO3000 Real Time Clock Honeywell Access ControlUS$ 100 - 600MOQ: 10 Pieces -
PRO3000 Honeywell TCP/IP-based Access ControlUS$ 100 - 600MOQ: 10 Pieces
-
Elevator ControllerNegotiableMOQ: 10 Pieces
-
Lift Controller for 16 Floors AccessNegotiableMOQ: 10 Pieces
-
KO-3201 Lift Access ControllerNegotiableMOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
honeywell
Model Number
PRO3000
Specifications
PRO3000 Honeywell Access ControlTwo door controller
Cardholder capacity: 55,000
Transaction storage: 45,000
PRO3000 Honeywell Access Control with Embedded web server Function
PRO3000

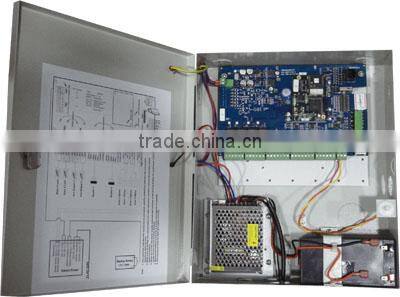

The PRO3000 IP-enabled controller is an advanced access control panel capable of providing solutions for medium to large applications. The PRO3000 provides power and flexibility with its 32-bit CPU architecture, TCP/IP protocol support, flash memory for firmware and large local card holder database.
The PRO3000 is designed to operate off-line, making access control decisions independently from a PC or other controlling device. It can also be connected to a host computer for system configuration, alarm monitoring and direct control. Connectivity to the host computer is accomplished via TCP/IP network connection.
The PRO3000 combines intelligent controller and reader interface into one complete unit. It connects for two readers via Wiegand controlling two doors. The controller can support up to 62 doors via RS485 multi-drop communication where 30 downstream controllers are connected to the gateway controller. This architecture can reduce the usage on LANs by using only one TCP/IP address to 62 doors.
The PRO3000 accommodates a card database of 55,000 cards, and a transaction buffer of 45,000 transactions.
The PRO3000 is designed to operate off-line, making access control decisions independently from a PC or other controlling device. It can also be connected to a host computer for system configuration, alarm monitoring and direct control. Connectivity to the host computer is accomplished via TCP/IP network connection.
The PRO3000 combines intelligent controller and reader interface into one complete unit. It connects for two readers via Wiegand controlling two doors. The controller can support up to 62 doors via RS485 multi-drop communication where 30 downstream controllers are connected to the gateway controller. This architecture can reduce the usage on LANs by using only one TCP/IP address to 62 doors.
The PRO3000 accommodates a card database of 55,000 cards, and a transaction buffer of 45,000 transactions.
PRO3000 Features
Features Benefits • True 32-bit microprocessor provides fast transaction processing for the most demanding network applications
• TCP/IP-based distributed hardware architecture allows for economic system installation
• Flash memory allows new versions of firmware to be downloaded from the host computer to the controller(s) through the central network
• Large, local controller database allows access control decisions to be made by controller in real time without the need to communi cate to the server
• Scalable architecture ensures optimal performance with a seamless upgrade path to accommodate future growth beyond initial installation
PRO3000 Specifications
| Model | PRO3000 |
| Database | |
| Cardholder capacity: 55,000 | |
| Transaction storage: 45,000 | |
| Flash programming for firmware revision updates | |
| Access level: 128 | |
| Holidays: 255 | |
| Time zone: 127 | |
| Card reader formats: 128 Wiegand format support | |
| Credential facility codes: 8 | |
| Dedicated tamper alarm | |
| Dedicated power fail alarm | |
| Real time clock: | |
| - Geographic time zone support | |
| - Leap year support | |
| Embedded web server to configure network attributes; | |
| Environment | |
| Temperature: 0 to 50°C operational; -55 to 85°C storage | |
| Humidity: 0 to 85% RHNC | |
Communication | |
| Ethernet port connected to TCP/IP network as master panel | |
| RS485 multi-drop connection for downstream panels | |
| Onboard I/O | |
| 2 Readers, expandable to 62 readers per gateway controller | |
| 8 Supervised inputs | |
| 4 Relay outputs | |
| Operational Functionality | |
| Operational modes: | |
| -Card only | |
| -Card and PIN | |
| Maximum site codes: 8 digit | |
| Anti-Passback Support: | |
| -Local | |
| -Global | |
| -Forgiveness | |
| Interlocks:256 | |
| Dimensions | |
| 152mm W x 229mm H | |
| Approvals | |
| CE/FCC/C-TICK | |
| Recommended Readers | |
| Smartcard Reeaders | |
| JT-MCR CSN Readers | |
| HON-MSR Sector Readers | |
| OmniClass Readers | |
| iClass Readers | |
| Proximity Readers | |
| OmniProx Readers | |
| Proximity | |
| Biometrics Readers | |
| HON-FIN3000 Fingerprint | |
| Bioscript | |
