Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > GCOM 24 Port Ethernet Switch Network Switch in Shenzhen

GCOM 24 Port Ethernet Switch Network Switch in Shenzhen

Name: GCOM 24 Port Ethernet Switch Network Switch in Shenzhen
Brand: GCOM
SKU: 114306391
Availability: InStock

GCOM 24 Port Ethernet Switch Network Switch in Shenzhen thumbnail-1

GCOM 24 Port Ethernet Switch Network Switch in Shenzhen photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

GCOM

Model Number:

S2024BF

Contact Supplier Request Quote Chat Now

GCOM Technologies Co., LTD(Shenzhen)

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name GCOM

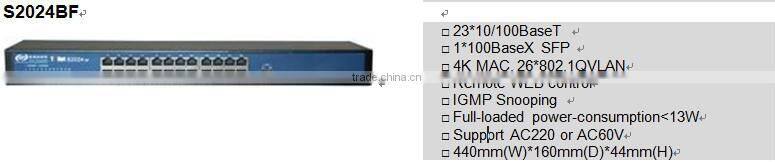

Model Number S2024BF

GCOM 24 port Ethernet Switch Network Switch in Shenzhen

Network Switch Specifications:

1. 1000 units Sells per Month

2. 1 pcs MOQ

3. 15 days delivery after received money

4. 1 year warranty

Network Switch Product Overview:

S2000B series switches are the new generation Web L2 accessing switches for carrier-class and enterprise network. It has full wire-speed switching capacity compatible with NGBN unified software operation system to provide rich features by web management. It supports 802.1Q VLAN and port based VLAN, port bi-directional bandwidth limiting and port mirroring, IGMP Snooping v1/v2 multicast and port based/802.1p/ToS queue scheduling, loop detection and TCP / UDP packet filtering. All ports has the protection of over 4KV lightning, the power supports over 2KV surge protection to satisfy the class-carrier network security accessing requirements.

Network Switch Product Specification:

Item	S2008B+	S2008BF	S2016B	S2016BF	S2024B	S2024BF	S2024BG
Backplane capacity	8.8Gbps	8.8Gbps	8.8Gbps	8.8Gbps	19.2Gbps	19.2Gbps	19.2Gbps
Switching capacity	3.2Gbps	3.2Gbps	3.2Gbps	3.2Gbps	9.6Gbps	9.6Gbps	9.6Gbps
Packet forwarding speed	1.19Mpps	2.38Mpps	2.38Mpps	2.38Mpps	6.55Mpps	6.55Mpps	6.55Mpps
Memory and flash	32K SDRAM memory and 512K flash				32K SDRAM memory and 512K flash
Voltage	AC:Input 176~265V,50~60Hz				AC:Input 176~265V,50~60Hz;DC:Input-36V~-72V;
Max power dissipation	Full-loaded≤7W Idle≤5W	Full-loaded≤8W Idle≤5W	Full-loaded≤10W Idle≤5W	Full-loaded≤11W Idle≤5W	Full-loaded≤12W Idle≤6W	Full-loaded≤13W Idle≤6W	Full-loaded≤16W Idle≤6W
Outline dimensions(mm) (WxDxH)	220mmx 44mm×160mm	220mmx44mm ×160mm	220mmx44mm ×160mm	220mmx44mm ×160mm	440mmx 44mm×160mm	440mmx 44mm×160mm	440mmx 44mm×160mm
Weight (in maximum configuration)	≤2kg	≤2kg	≤2kg	≤2kg	≤3kg	≤3kg	≤3kg
Environmental requirements	Working temperature:-15C~55C:0°C~40°C Storage temperature:-40°C~70°C Relative humidity:10%~90%,no condensing				Working temperature:-15°C~55°C Storage temperature:-40°C~70°C Relative humidity:10%~90%,no condensing

Network Switch Business Features:

Item		S2008B/BF/S2016B/BF		S2024B/BF/BG
L2 feature	MAC	4K MAC address
	VLAN	16 VLAN entry 802.1Q VLAN based on port Port isolation in VLAN		26 VLAN entry 802.1Q VLAN based on port Port isolation in VLAN
	Spanning tree protocol	Loop detection
	Port	Bidirectional bandwidth control Port mirror
Security	User’s security	MAC address binds to port and port MAC address filtration
	Device security	Anti-DOS attack(such as ARP,Synflood, Smurf, ICMP attack), ARP detection, worm and Msblaster worm attack
	Network security	Port broadcast/multicast suppression Self-defined packet filtration based on TCP/UDP port
Security features	QoS	Port-based super queue scheduler and self-defined flow. Each port/ flow supports 4 priority queues and scheduler of FIFS (First In First Serve), SP (Strict Priority) and WRR (Weighted Round Robin)
	Multicast	IGMPv1/v2 Snooping
Reliability	Link protection	Static link aggregation
	Device protection	4Kv+ lightning protection for port 2Kv+surge protection for power
Maintenance	Network maintenance	WEB-based transmit/receiving statistics for port
	Device management	WEB management Input/output configuration files Hardware Load Default button to revert the default value
		Modify device configuration by NMS to upgrade by batch	Not support
