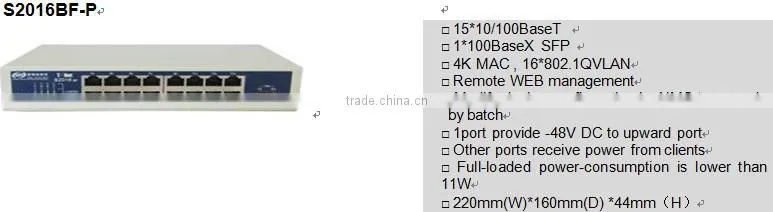

Latest Technology GCOM Fiber Optic Ethernet Switch Modems Products

Item

S2008B-P

S2008BF-P

S2016B-P

S2016BF-P

Backplane capacity

8.8Gbps

8.8Gbps

8.8Gbps

8.8Gbps

Interface switching capacity

3.2Gbps

3.2Gbps

3.2Gbps

3.2Gbps

Forwarding capacity

1.19Mpps

1.34Mpps

2.38Mpps

2.38Mpps

Memory and flash

32K SDRAM memory and 512K flash

Power

AC:Input 176~265V,50~60Hz

Power consumption

Full-loaded≤7W

Idle≤5W

Full-loaded≤8W

Idle≤5W

Full-loaded≤10W

Idle≤5W

Full-loaded≤11W

Idle≤5W

Dimensions (width x depth x height)

220mm×44mm×160mm

220mm×44mm×160mm

220mm×44mm×160mm

220mm×44mm×160mm

Weight (Full-loaded)

≤2kg

≤2kg

≤2kg

≤2kg

Environmental requirements

Working temperature:0°C~40°C

Storage temperature:-40°C~70°C

Relative humidity:10%~90%,non-condensing

Item

S2008B-P/ S2008BF-P /S2016B-P/ S2016BF-P  Ethernet Switch Modems

L2 features

MAC

4K MAC address

VLAN

16 VLAN entries

Port-based VLAN

Port isolation in a VLAN

Spanning tree

Loop detection

Port

Bidirectional bandwidth control

Port- mirroring

Security features

User’s security

Bind MAC address to port and MAC address filtration on port

Device security

Anti-DOS attack

Network security

Port broadcast/multicast suppression

Self-defined packet filtration based on TCP/UDP port

QoS

Port-based super queue scheduler and self-defined flow. Each port/ flow supports 4 priority queues and scheduler of FIFS (First In First Serve), SP (Strict Priority) and WRR (Weighted Round Robin)

Multicast

IGMPv1/v2 Snooping

Cross VLAN multicast

Reliability

Link protection

Static link aggregation

Device management

4Kv+ lightning protection for port

2Kv+surge protection for power

Maintenance

Network maintenance

WEB-based transmit/receiving statistics for port

Device management

WEB management

Input/output configuration files

Modify device configuration by NMS to upgrade by batch

Hardware Load Default button to revert the default value
