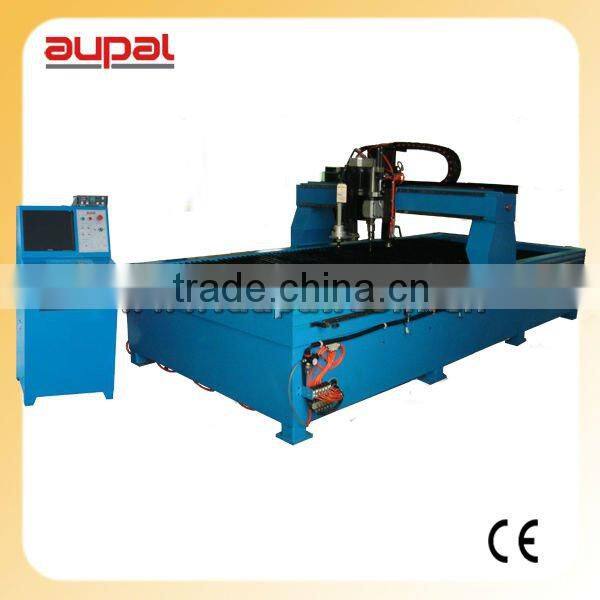

AUPAL6000 Precision Table Style Flame and Drilling Cutting Machine

Machine specification

2000mm

Track length

4000mm

Capacitance height-regulating device

1set

CNC Plasma torch

1set

Drive mode

Double drive

Driving system*dynamo

Japan Panasonic servo

CNC system

American Hypertherm

Gear box

Germany

Automatic Programming, Nesting software

FastCAM Nesting Software

Plasma Power (American)

/

Precision cutting table

1set

Water table

1set

Programming software (FastCAM professional made in Australia)

1set

Motorized plasma torch height capacitor sensor (China)

1set

Max effective cutting width

1500mm

Max effective cutting length

3000mm

Rapid speed

0-9000mm/min

Max plasma cutting thickness (edge cutting)

/

Max plasma perforation thickness

/

Plasma cutting speed

50-5500mm/min

Torch lifting distance

150mm

Straight line positioning precision

±0.2mm/10m

Straight line repeat precision

±0.2mm/10m

Complete machine synthesis precision(the synthesis photo as standard )length of side(4 sides)1000X1000 live wire speed 500-800mm/min

Length of a side (4 sides)

±0.5mm

Diagonal  discrepancy/AD-BC

±0.5mm

Node discrepancy

±0.5mm

Back to the origin of deviation

±0.2mm

The deviation of along and reverse line

±0.2mm

Cutting surface roughness

Rz(um)=70+1.2a

roughness for sight measure: 12.5

Verticality and gradient tolerance

μ(mm)=0.4+0.015a

Running non-straightness

Vertical line≤±0.2mm/effective length

Horizontal line≤±0.2mm/effective length

Arcing time factor

80%

Lineation precision

≤0.5mm

Torch angle error

≤±0.5°

Environmental temperature

0-50°C

Humidity

<90%, no condensation

Surroundings

Ventilation, no big shake

Power voltage

3×380V±10% / 50HZ

Power frequency

220V±10% / 50HZ

Input power

3KW
