QT10-15/industry Machines /concrete Block /brick Making Business

Full Automatic Paver Brick Machinery

Model QT10-15 Automatic Concrete Block Making Machine

Production of video:

  https://youtu.be/mAToMpAUh0A

QT Series Multi-functional Fully Automatic Block Making Machine

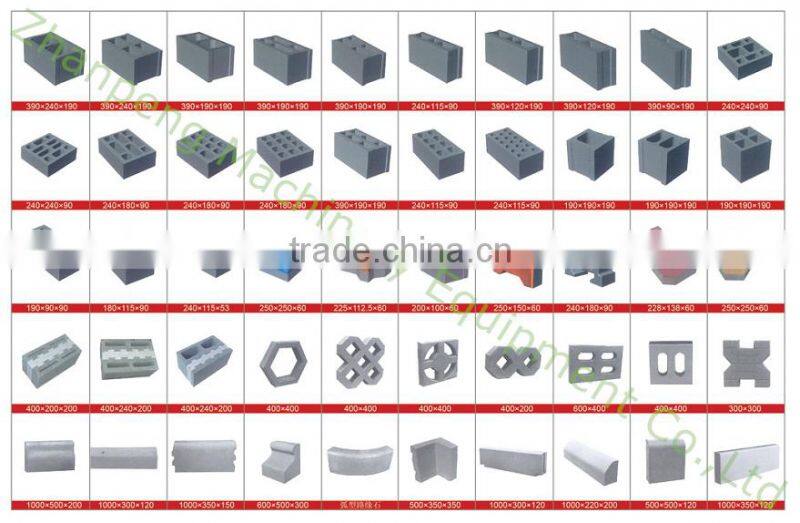

As a “National Inspection-free Product”, Zhanpeng block making machine is well supported with complete functions, easy operation and stable quality. It has reached the leading level of its kind at home. It is applied in producing high-strength and fine-quality ordinary concrete blocks, fly ash blocks, waste residue blocks, etc. The blocks produced are featured with high consistency, good capabilities in frost-resistance,  permeability-resistance, sound insulation, thermal insulation, heat-preservation property and reliable performance.

Technical Features:

It adopts Germany frequency conversion technology and is controlled by variable frequency of the main machine. All the main electric and hydraulic components are world well-known brands. The block production line is realized fully automatic operation, which saves the operation intervals, improve production efficiency. It is versatile that can be made up as a simple production line with stacker. It is economic and practical for medium-sized enterprises to set up a simple production line with excellent production outputs.

A.It reduces the starting current of the motor with a function of soft starting.

B.It realizes the synchronized operation of vibration assembly.

C.Braking unit and braking resistor are used to consume the energy to solve the problem of inertia of the motor upon braking.

D.The energy saving effect is remarkable. It saves 20-30% of power.

E.High-effective parts of hydraulic proportion system are imported (more effective and more energy consecutive).

F.Imported intelligent PLC touch screen and authentic electric components (high automation level and easier operation).

G.Arch-breaking rapid-feeding device (has a great advantage for feeding for porous bricks. It makes feeding much evener.)

H.Variable-frequency motor and multi-source synchronous vibration system are used.

I.Vibration and forming

J.Special process of high-temperature thermal treatment (the moulds are more durable and rigid)

K.Guiding pole.It is made of ultra high strength steel and the surface is coated with hard chrome for a better torsional and abrasive performance.

QT10-15 Main Technical Specifications

Note:The output listed above is based on theoretical calculation.The moulding cycle and output are subject to raw materials and products types.

PVC Pallet for Unburned Bricks

Mould

Advantages Of QT10-15 Automatic Block Making Machines:

Our machines, with harmonic cooperation between mechanical, electrical and hydraulic machines functions, guarantee a reliable and high output production of concrete products.

Use Frequency Conversional Control Technology, which controls the block making:

 A. Frequency Conversion Control: guarantees the precise and parallel movement between tamper  head and mould,    protects the products from transfiguration; increases the production rate by improving the vibrating efficiency;

 B. Controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by constant working;

 C. Power saving: 30%;

Use Germany Siemens PLC control system and Siemens Touch Screen, use Schneider and Omron relays and contactors:

 A. Siemens PLC, with great adaptability, guarantees the stability and reliability of the machine.

 B. Visualization touch screen, with easy operation;

 C. High-quality electrical components from Schneider and Omron;

After-sales service:

1. Provide one-year free warranty and life-long service;

2. Assist users to formulate production formula;

3. Set up completed users’ data and provide a better follow-up service;

4. Supply spare parts and moulds;

5. Update the latest industrial information and relevant data of the company.
