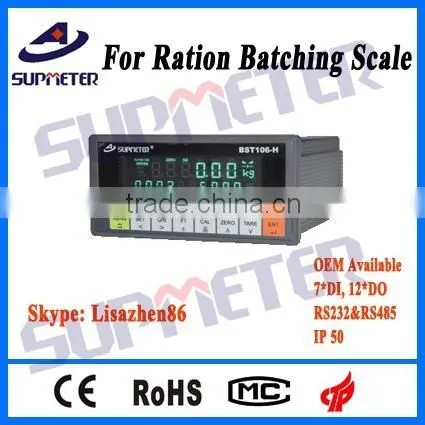

Weighing Indicator for Batching Scale
US$ 200 - 300
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
SUPMETER
Model Number:
BST106-H18[F]
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Weighing Controller BST106-B68 for Ration Batching ScaleNegotiableMOQ: 10 Pieces -
Weighing Indicator for Simple WeighingNegotiableMOQ: 10 Pieces
-
Batching Weighing Indicator ScaleNegotiableMOQ: 1 Set
-
Weighing Indicator for Conveyor ScaleUS$ 1 - 500MOQ: 1 Piece
-
Weighing Apparatus With LED DisplayNegotiableMOQ: 1 Piece
Place of Origin
Hunan, China
Brand Name
SUPMETER
Model Number
BST106-H18[F]
Suitable for Hopper Ration Batching Scale with 5-material, Single-speed or Double-speed Feeding.
| Power Supply | AC220V±15% |
| Display | 16-bit green VFD digit display screen with English character display |
| Kaypad | 8 keys for Menu&Shortcut mode operation with key tone |
| Excitation Voltage Output | DC10V |
| Max. Connect number of Loadcell | 8 Loadcells (350Ω) |
| A/D Convert | 24-bit |
| Sampling Frequency | 800Hz |
| Zero Drift | ±0.1μV/°C RTI (Relative to Input) |
| Gain Drift | ±5ppm/°C |
| Non-linearity | ±0.01%FS |
| AO | 1 AO (4~20mA) for additional option |
| DI | 7 Normally Open Switch Inputs |
| DO | 12 Normally Open Transistor Switch Outputs |
| Communication Port | COM1: RS232; COM2: RS232/RS485/RS422/Profibus-DP/CANBUS/Ethernet modules for additional option |
| Connectable | IPC/PLC, Remote Display&Operation Terminal, Serial Printer and Wireless Module |
| Outline Dimension | 164× 82 × 188 mm (W×H×D) |
| Weight | Approx. 1.5kg |
| Service Temperature | -20°C to +40°C |
| Storage Temperature: | -30°C to +60°C |
| IP Grade | IP50 |

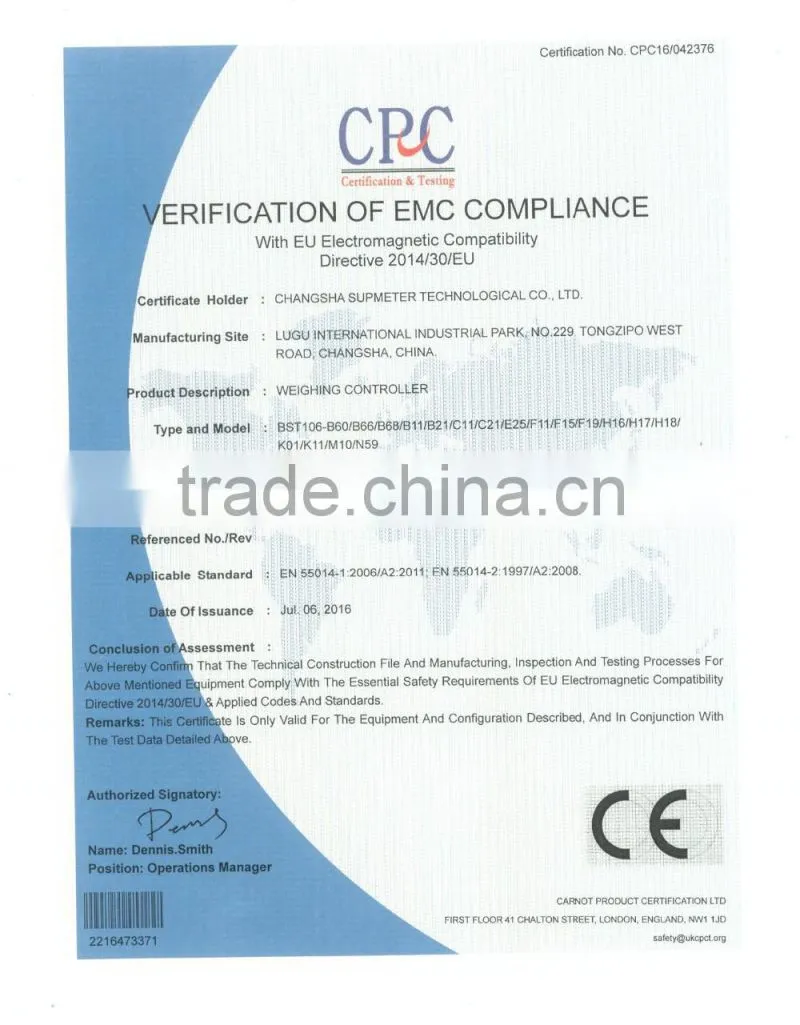

Certification:
