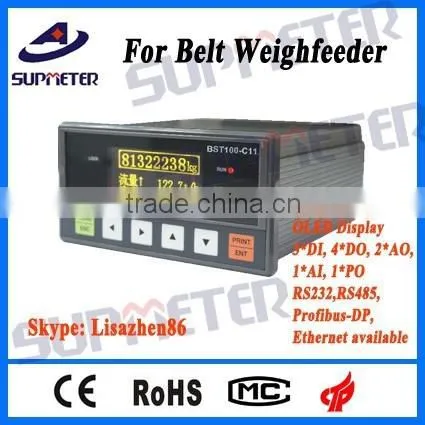

Weighing Indicator for Belt Conveyor

Name: Weighing Indicator for Belt Conveyor
Brand: SUPMETER
SKU: 114295131
Availability: InStock

US$ 1 - 500 MOQ: 1 Piece

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

SUPMETER

Model Number:

BST100-C11

Changsha Supmeter Technological Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

CHANGSHA

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name SUPMETER

Model Number BST100-C11

Type Conveyor Scale

Power Supply AC220V/DC24V

Display Type OLED display

Rated Load 9999999.9kg

Power Supply	AC220V±15% or DC24V±20%
Display	OLED display screen
Keypad	6 keys for Menu&Shortcut mode operation with key tone
Excitation Voltage Output	DC10V
Max. Connect No. of Loadcell	8 Loadcells (350Ω)
A/D Convert	24-bit
Sampling Frequency	100Hz
Zero Drift	±0.1μV/°C RTI (Relative to Input)
Gain Drift	±5ppm/°C
Non-linearity	±0.01%FS
Output Voltage of Speed Sensor	DC5~12V (adjustable)
AO	Max.3 Definable ‘Flow/Control Current /…’ Analog Signal Outputs: 4~20mA (AO3: optional)
DO	4 Definable Normally Open Relay or Transistor Switch Outputs
DI	3 Definable Normally Open Switch Inputs
Communication Port	COM2: RS232; COM1: RS232/RS485/RS422/Profibus-DP/CANBUS/Ethernet modules for additional option.
Connectable	IPC/PLC, Remote Display&Operation Terminal, Serial Printer and Wireless Module
Report Print	Weight Records per shift/day/month of a year can be queried and printed
Outline Dimension	164 × 86 × 193 mm (W×H×D)
Weight	Approx. 3.4kg
IP Grade	IP50
