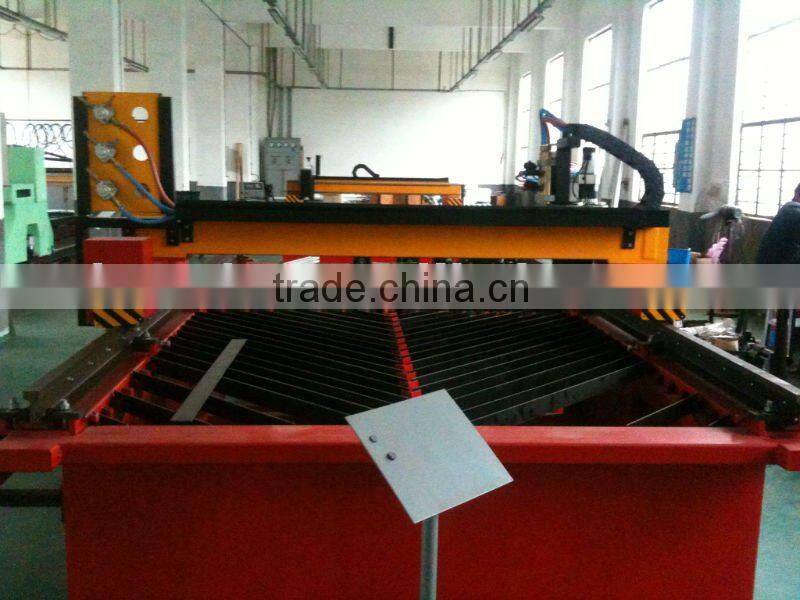

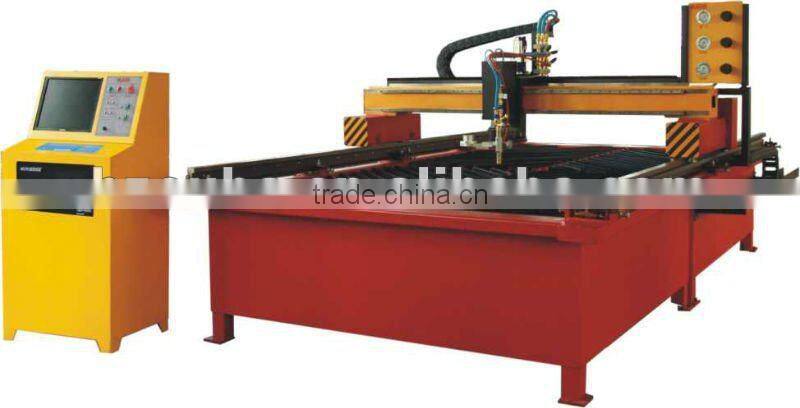

Help CenterAUPAL Table Style Cnc Plasma Cutting Machine
Related Products
-
Plasma Gantry Type CNC Cutting MachineNegotiableMOQ: 1 Set -
Portal Frame Precise Laser Cutting Machine MetalNegotiableMOQ: 1 Set
-
AUPAL Plasma Precision Laser Class Cutting MachineNegotiableMOQ: 1 Set
-
AUPAL Pinion for Portable CNC Cutting MachineNegotiableMOQ: 1 Set
-
Table Style Flame CNC Cutting MachineUS$ 10,000 - 10,000MOQ: 1 Set
Specifications
Cutting mode: Flame or Plasma cuttingMachine Frame: Table Type Driven Mode: Single or Dual
Machine width: 1.5-7m
(1)CNC table style cutting machine is a high speed, high accuracy plasma cutting machine which features compact modular construction for easy and fast installation and initial operation. Fume extraction table is integrated to satisfy environmental requirements.
(2)Positive bilateral longitudinal drives and precise machine guiding profiles provide high cutting accuracy and contouring precision.
(3)Working widths up to 2000mm.
(4)Maximum working lengths up to 6000mm.
(5)Positioning speeds up to 12m/min.
(6)Integrated cutting table (max. plate thickness 30mm).
Cutting Technical Data | ||||
Model |
CNCDG2000 |
CNCDG2000 |
CNCDG2000 |
CNCDG2000 |
Machine dimension (mm) |
2000x4000 |
2000x5000 |
2000x6000 |
2000x7000 |
Effective Cutting area (mm) |
1500x3000 |
1500x4000 |
1500x5000 |
1500x6000 |
Cutting Thickness(mm) |
Flame:5-60mm Plasma:/ |
|||
Cutting Speed (mm/min) |
0-9500 |
|||
Basic components | ||||
Cutting Mode |
Plasma or Flame |
|||
Drive Motor Number |
Servo motor ,Single-side or Dual-side |
|||
Cutting Torch Number |
1-2 sets |
|||
Driving Motor |
Panasonic, Mitsubishi |
|||
NC Controller |
ADT-HC6500 SJTU-SK, Micro EDGE, EDGE pro |
|||
Plasma Power |
Thermadyne, Kjellberg, Hypertherm |
|||
Programming software |
FASTCAM |
|||
Gearbox |
Neugart/China |
|||
Other Data | ||||
Working temperature |
- 10°C -45°C |
|||
Humidity |
<90%, no condensation |
|||
Surroundings |
Ventilation, no big shake |
|||
Power voltage |
3×380V±10% or up by user’s local condition |
|||
Operation language |
English or Chinese |
|||
Options | ||||
Option Item |
Powder Marking, |
|||
integration dust extraction | ||||
Heating and cooling systems | ||||
Inkjet equipment | ||||
