DLS865-9A 6 ton Excavator Manufacturer Wheel Excavator
Operating Weight:5800kg
Volume of Bucket:0.24m3
Power:48km/2300rpm
Dear Sir,
Thank you for your attation of our excavators. We are excavator manufacturer factory in China, we can provide 1.8 ton to 75 ton excavators. Please kindly tell us which excavator do you want, wheel excavator or crawler excavator, the size of excavator. Then we will provide you the best excavator for you. We also accept OEM orders(excavator chassis parts).
Best regards
Product Application New Used 6 Ton Small Wheel Excavator DLS865-9A Excavator in factory
This 6 ton wheel excavator can be used in stone material factory, the battlefield, coal yards, cement plants, lime factory, chemical plants, fertilizer plants, mines, glass factory, brick factory, road construction, construction site, various channels, ditch, farmland construction and renovation, small water conservancy projects, casting smelting works and other purposes..
Main Features New Used 6 Ton Small Wheel Excavator DLS865-9A Excavator in factory
1) Hydraulic parts is with international brands of rotary device and pilot control valve.
2) Joint is used from EATON company which is the top 500 enterprises in the world,for its high reliability in all kinds of bad working condition with high resistance to shake or loose
3) Structural parts is made from 16Mn steel, with advanced welding technology to ensure the strength and safety.
4) Computer monitoring: CPU monitor the machine moving, remind timely if something wrong, and provide intelligent protection for the engine.
5) Radiator is aluminum plate fin type, using vacuum brazing technology, to improve the heat exchange coefficient. It can play a good cooling effect even in the hot summer.
6)Travel device is driven by national advanced machine, with high speed and suitable for long-distance travel, to reduce the cost.
7)Turning system is helped with hydraulic parts, with high stability and flexibility.
Technical Parameters New Used 6 Ton Small Wheel Excavator DLS865-9A Excavator in factory
| The Parameter of DLS865-9A | |||
| wheel hydraulic excavator | unit | DLS865-9A | |
| motor | model | Xinchai | |
| hydraulic pump | model |
SHIMADZU Japan |
|
| main val | model | Korea imported | |
| Operating weight | kg | 5800 | |
| volume of bucket | m³ | 0.24 | |
| power | kw/rpm | 40 or 48/2300 | |
| Dimensions | overall width | mm | 2000 |
|
machine height (the top of the device) |
mm | 2710 | |
| overall length | mm | 5365 | |
|
machine height (the top of the swing arm) |
mm | 2454 | |
| ground clear ance(bob-weight) | mm | 985 | |
| min.ground clearnce | mm | 280 | |
| tyre gauge | mm | 1560 | |
| wheel shaft diameter | mm | 2310 | |
| mouldboard width | mm | 2024 | |
| mouldboard height | mm | 310 | |
| Operating scope | boom length | mm | 2880 |
| arm length | mm | 1845 | |
| max.digging reach | mm | 5915 | |
| max.digging depth | mm | 3331 | |
| max.digging height | mm | 6369 | |
| max.dumping height | mm | 4615 | |
| min.swing radius | mm | 2020 | |
| rear-end seingradius | mm | 1751 | |
| max.flooring reach | mm | 5747 | |
| Specifications | working pressure | Mpa | 19 |
| rated flow | L/min | 44+50 | |
| swing speed | rpm | 9.2 | |
| travel speed | Km/h | 0~30 | |
| buckte digging force | KN | 30 | |
| arm digging force | KN | 18 | |
| max.hauling force | KN | 34.8 | |
| max.torque | N.m/rpm | 199/1650 | |
| gradeability | . | 20 | |
| fuel tank | L | 125 | |
| hydraulice oil tank | L | 105 | |
| rated acpacity | ml/r |
20+23 |
|

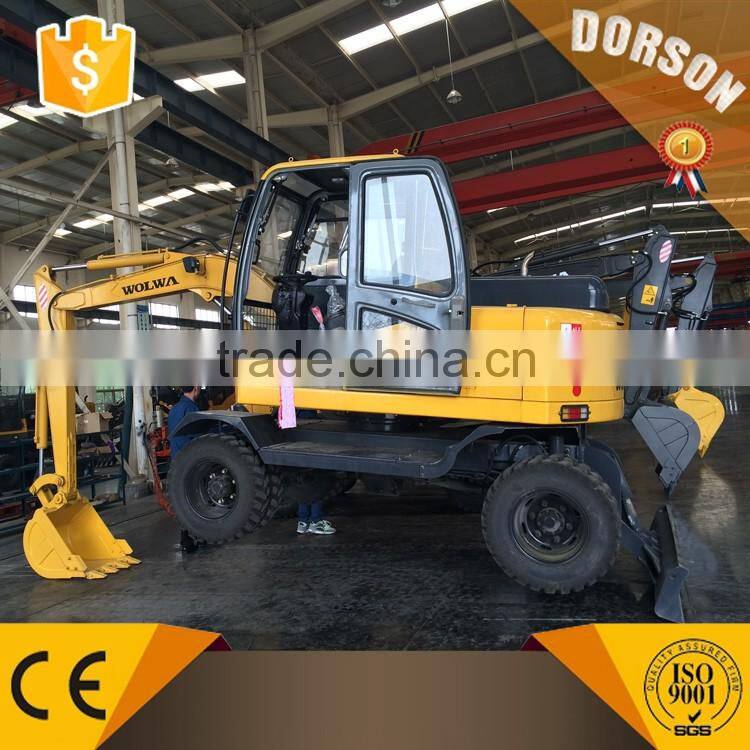

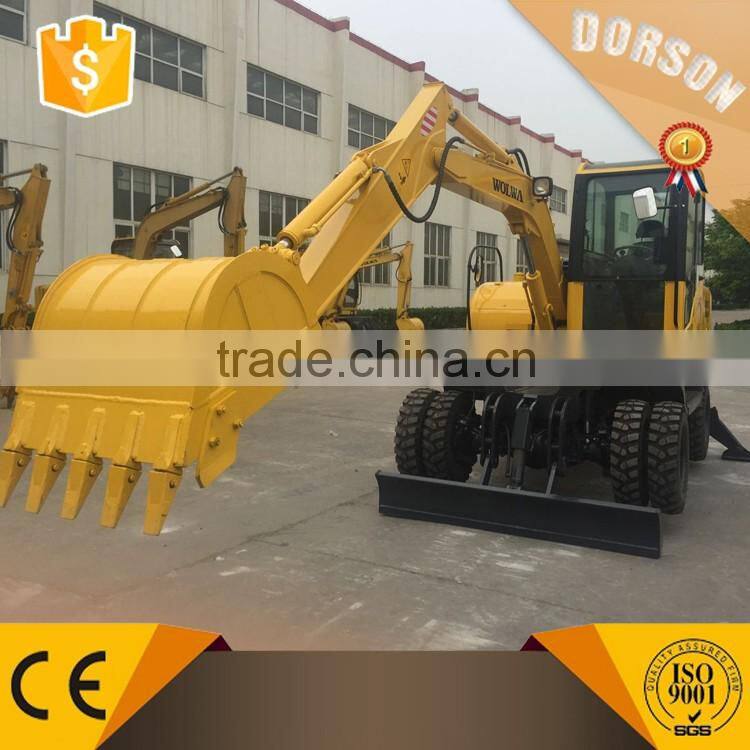

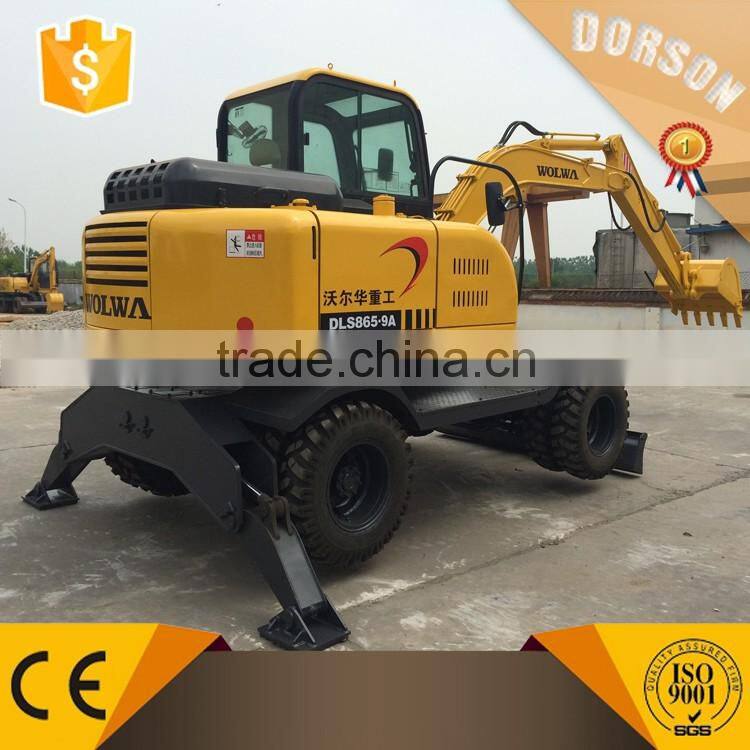

Product show New Used 6 Ton Small Wheel Excavator DLS865-9A Excavator in factory
| Packaging Details: | 40 high container for new mini hydraulic excavator for sale |
|---|---|
| Delivery Detail: | after 7 days when confirmed your oder |
New Used 6 Ton Small Wheel Excavator DLS865-9A Excavator in factory
New Used 6 Ton Small Wheel Excavator DLS865-9A Excavator in factory
Shandong Dorson Hydraulic Co.,ltd (former name Jining Automobile Spare Parts Co.,ltd, established in 1956) which developed into private joint-stock company that specialized in producing the excavator parts including idler cushion, front idler, sprocket, track roller, carrier roller, rotary joints, hydraulic redirector, cycloid motor, one-piece multi-way valve, central rotary joints since 1998...
New Used 6 Ton Small Wheel Excavator DLS865-9A Excavator in factory
New Used 6 Ton Small Wheel Excavator DLS865-9A Excavator in factory
New Used 6 Ton Small Wheel Excavator DLS865-9A Excavator in factory
New Used 6 Ton Small Wheel Excavator DLS865-9A Excavator in factory
For Wheel Crawler Excavator,New used Excavator,Excavator parts, We accept OEM service.
