Specifications
PP corrugated sheet machineSheet thickness:2-12mm
Sheet width:2000mm
Capacity:250-300kg
Pass CE
PP corrugated sheet machine
1. PP corrugated sheet machine manufacturer instruction:
Suzhou Jiashuo Plastic Co.Ltd is the first manufacturer to research and develop PP corrugated sheet machines. Depending on our strong technical resource and advanced management, we have been developed into a complex middle-sized company specialized in PP hollow sheet & production lines. Now our annual output can reach 150-200 sets. Our machines are mainly sold to Guangdong, Shanghai, Zhejiang, Jiangsu, Tianjin, and Beijing and even exported to our neighbor countries such as Japan, South Korea, India and Vietnam.
We can manufacture the M 1200, M 1500 and M 2000 sets of SJK series with many talent rights. All of these machines can produce various boards ranging from 2mm to 12mm. As you required, a suitable mode can also be manufactured to meet the actual need of you. And the complete after service and technical support ensure us to solve all the possible problems meeting in the operation. More importantly, we have self developed and launched on the widest machine of 2.5m in the domestic market.
2. Processing Materials and Product Data
2.1 Name of the line: PP corrugated sheet machine
2.2 Type of production line: JS-PP/2000
2.3 Processing materials: PP
2.4 Additives: polyethylene, Talc, color master batch, flame retardant, anti-static agent etc
2.5 Output: 250kg/hr-300kg/hr

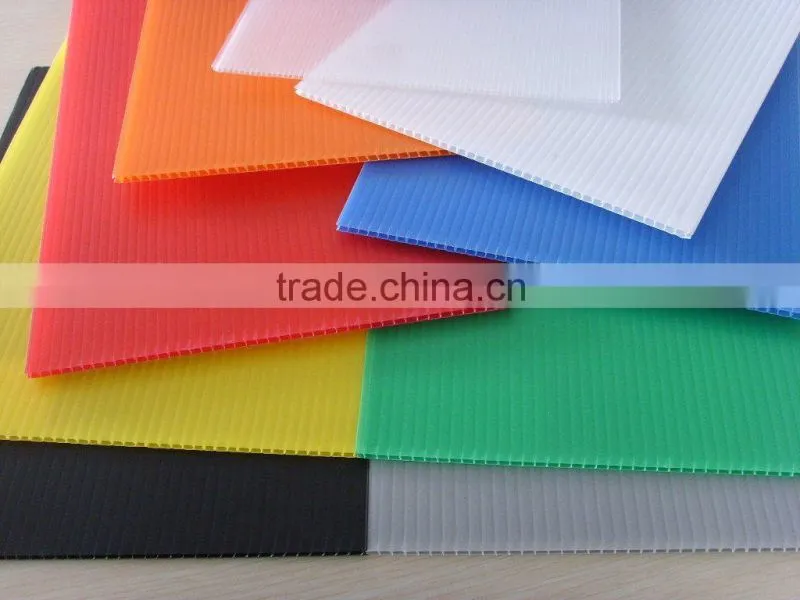

2.6 Sheet Dimension
| Thickness | 2mm | 3mm | 4mm | 5mm | 6mm | 8mm | 9mm | 10mm | 11mm | 12mm |
| Density (gsm) | 250 | 300 | 600 | 800 | 900 | 1400 | 1600 | 1600 | 2200 | 2400 |
| ~ | ~ | ~ | ~ | ~ | ~ | ~ | ~ | ~ | ~ | |
| 450 | 600 | 900 | 1200 | 1600 | 2000 | 2000 | 2200 | 2400 | 2600 | |
| Color | All | All | All | All | All | All | All | All | All | All |
| Surface Tension (dyne/cm) | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 | 46 |
46 |

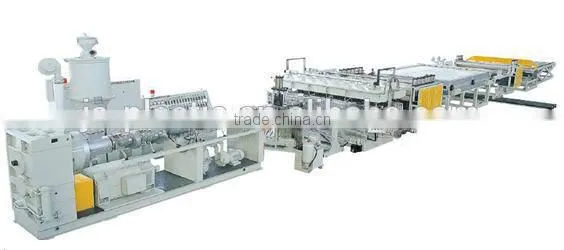

3. PP corrugated sheet machine product list
No. |
Description |
Qty |
1 |
Feeding and Mixing System |
1set |
2 |
Extruder |
1set |
3 |
Hydraulic screen exchanger |
1set |
4 |
Machine head and grid forming device |
1set |
5 |
Vacuum forming and water-cooling device |
1set |
6 |
First Haul-off System |
1set |
7 |
Stress Elimination System |
1set |
8 |
Second Haul-off System |
1set |
9 |
Cutting System |
1set |
10 |
Control cabinet |
1set |
No. |
Description |
Qty(set) |
1 |
Corona treatment (2 side) machine |
1 |
2 |
Chiller |
1 |
3 |
Crusher |
1 |
4 |
Mixer |
1 |
5. PP corrugated sheet machine main parts brand
Item |
English Brand |
Power |
SIMENS |
Inverter |
DELTA |
Amperemeter, voltmeter, contactor |
RKC,SIMENS |
Metering Pump |
AIGE |
Gear Box |
PUTUO |
Air Cylinder |
ZHAORI |
Thermostat |
YATAI |
6. PP corrugated sheet machine payment terms:
30% down payment by T/T, 70% balance payment before shipment.
7. PP corrugated sheet machine delivery time: 60 working days after received the down payment in manufacturer’s factory.
