OEM Permitted marine rubber fender1.Easy and fast to be installed
2.Low reaction force and high energy absorption
OEM Permitted marine rubber fender
Description:
It is exchangeable with most of the cell fenders.Cone fender has very complex shape, it has better performance than the cell fenders at the same size.So it’s Economical and easy to handle.
We will provide you the pictures from the begining to the end.
Features:
No performance loss even at large berthing angles
Easy and fast to be installed
Low reaction force and high energy absorption ability
The deflection could reach 72% and suitable for docks using the cell fenders
Specifications:
|
H (mm) |
ø B (mm) |
ø C (mm) |
øD (mm) |
ø E (mm) |
F (mm) |
G (mm) |
Weight (kg) |
|
CONE600H |
600 |
900 |
810 |
510 |
390 |
6*M24 |
6*30 |
235 |
CONE700H |
700 |
1050 |
945 |
595 |
455 |
6*M30 |
6*38 |
350 |
CONE800H |
800 |
1200 |
1080 |
680 |
520 |
6*M36 |
6*44 |
540 |
CONE900H |
900 |
1350 |
1215 |
765 |
585 |
6*M36 |
6*44 |
765 |
CONE1000H |
1000 |
1500 |
1350 |
850 |
650 |
6*M42 |
6*50 |
1050 |
CONE1100H |
1100 |
1650 |
1485 |
935 |
715 |
6*M42 |
6*50 |
1400 |
CONE1150H |
1150 |
1725 |
1550 |
998 |
750 |
6*M42 |
6*50 |
1600 |
CONE1200H |
1200 |
1800 |
1620 |
1020 |
780 |
8*M42 |
8*50 |
1950 |
CONE1300H |
1300 |
1950 |
1755 |
1105 |
845 |
8*M48 |
8*56 |
2400 |
CONE1400H |
1400 |
2100 |
1890 |
1190 |
930 |
8*M48 |
8*60 |
3060 |
CONE1600H |
1600 |
2400 |
2158 |
1360 |
1040 |
8*M48 |
8*60 |
4600 |
CONE1800H |
1800 |
2700 |
2428 |
1528 |
1170 |
10*M56 |
10*74 |
6600 |
Desiging Drawing:

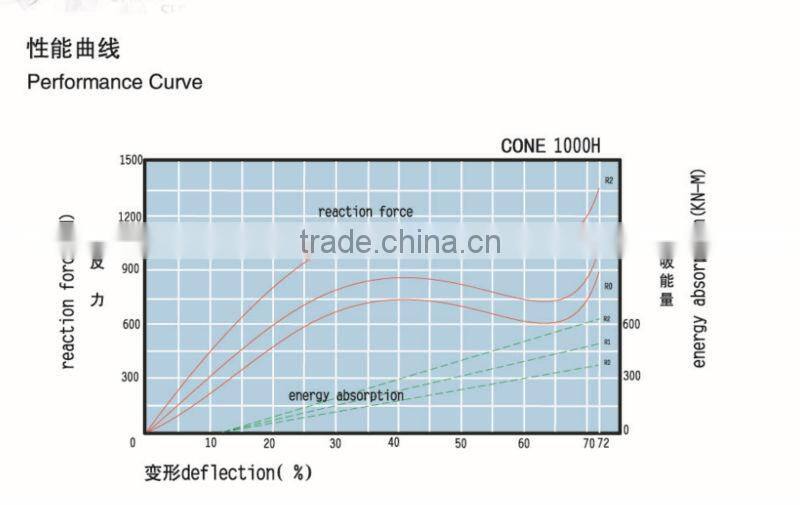

Performance:

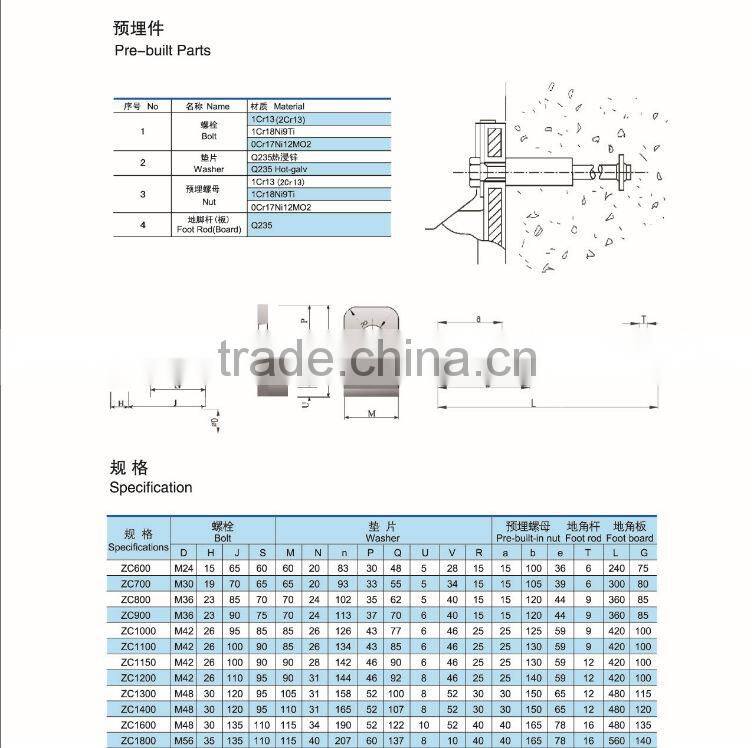

Accessories:
