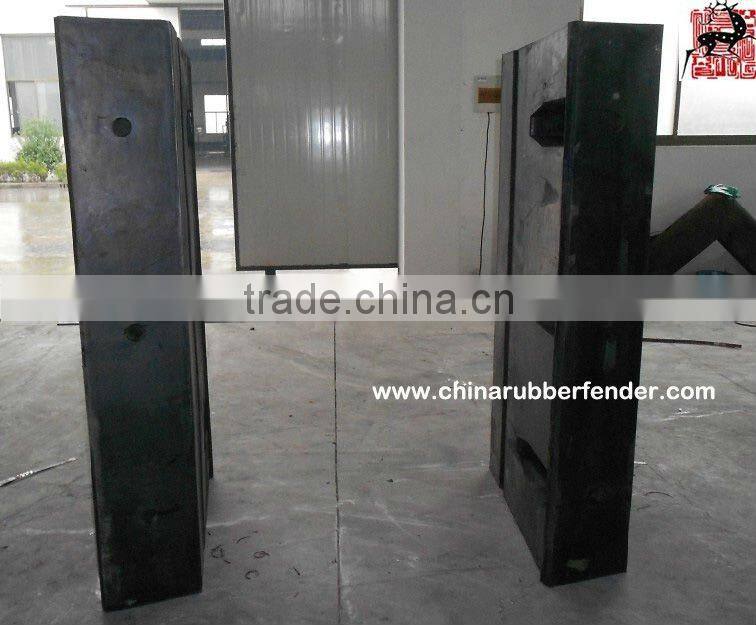

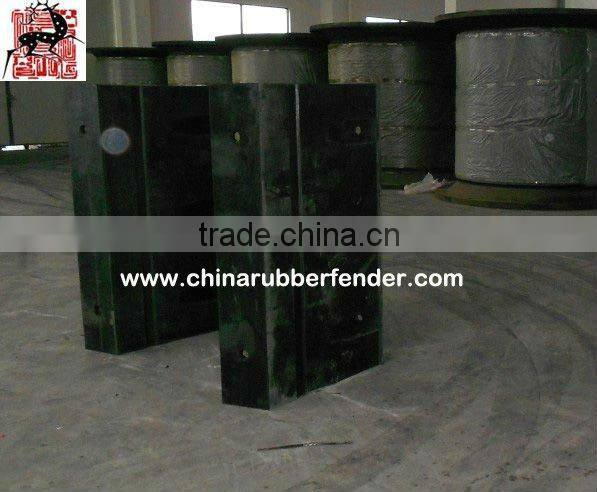

Help CenterBridgestone Similar MV Rubber Fender
Related Products
Specifications
1.lease impact strength,high absorption of energy2.absorb most impact energy of pitching
3.widely use
4.easy to be installed

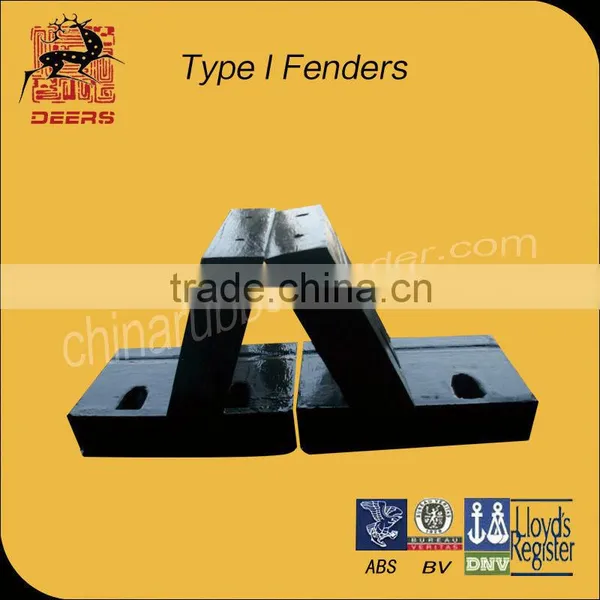

Type I Rubber Fender
Features:
1.Lease impact strength, high absorption of energy
2. Easy to be installed and maintenance due to simple shape
3. It can be widely used and it will be suitble to any size of the ship or wharf.
4. It can be absorbed most of the impact energy of pitching and rolling when ship alongside
Advantage:
1.larger rated compression,higher energy absorb, fender energy absorption raise 10% or so than super arch type rubber fender.
2 Fender installation flexible,it can adopt crosswise,longitudinal,combination etc style.
it can meet the requirement of different docks.
3 Front panel set in front of fender, It can lower the surface pressure of vessel side board.
4 UHMW-PE set in front of panel,it can lower friction factor between vessel and fender,lower the shear strength while vessel berthing,and raise utility of fender life.
5 After fender adopt combination style,slant compression performance changeable very little.
Application:
1.high suitable for the large wharf
2.Rubber fender is a kind of protection facility suitable to be installed on the wharf.
It can be absorbed the energy upon ship alongside and reducing the impact strength to ensure the structure of vessel and wharf harmless.
3.Rubber fenders are the simplest and most appropriate solution for a wide range of applications in areas used as wharf moorage, guaranteeing long lasting performance and requiring no maintenance.
Their innovative design assures high performance, fast and easy moorage, and maximum ship stability even in situations of extreme stress, thanks to the vulcanized steel plates placed on the base and completely covered with rubber.

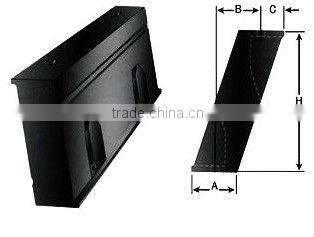

Measures:
specification |
H |
A |
B |
C |
I300H |
300 |
94 |
94 |
47 |
I400H |
400 |
125 |
124 |
63 |
I500H |
500 |
158 |
158 |
87 |
I550H |
550 |
172 |
170 |
87 |
I600H |
600 |
188 |
199 |
87 |
I750H |
750 |
235 |
230 |
118 |
I800H |
800 |
250 |
240 |
129 |
I1000H |
1000 |
322 |
310 |
162 |
I1250H |
1250 |
451 |
388 |
202 |
I1400H |
1400 |
454 |
454 |
228 |
I1600H |
1600 |
500 |
480 |
257 |
Performance list:
specification |
High reaction force |
Standard reaction force |
||
(KN) (KN-M) |
(KN) |
(KN) |
||
I300H |
160 |
22 |
110 |
15 |
I400H |
210 |
39 |
150 |
27 |
I500H |
265 |
61 |
187 |
43 |
I550H |
294 |
75 |
206 |
52 |
I600H |
320 |
89 |
224 |
62 |
I750H |
400 |
137 |
282 |
96 |
I800H |
428 |
157 |
299 |
110 |
I1000H |
535 |
245 |
374 |
172 |
I1250H |
668 |
383 |
467 |
268 |
I1400H |
775 |
516 |
543 |
361 |
I1600H |
855 |
628 |
599 |
440 |
Our advantages:
Completely specifications and high level service timely for you.
Larger production capability and shorter lead time for you.
Equal quality as Trelleborg and lower price for you.
And OEM is also permitted for you.
Feel free to call ‘ 86 025 84507790 ’, our professional solution for you to solve any technical problems.
