Specifications
A. Principal Dimensions(1) Length overall 24.5m
(2) Breadth 4.8 m
(3) Depth 1.6 m

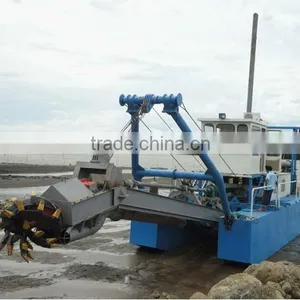

8 INCHCUTTER SUCTION DREDGER
Description |
Required Specification |
|
A. Principal Dimensions |
|
|
(1) Length overall |
24.5m |
|
(2) Breadth |
4.8m |
|
(3) Depth |
1.6 m |
|
(4) Draft loaded |
1.1 m |
|
(5) Dredging Depth |
10m |
|
(6) Discharge Distance |
800m |
|
B. Main Pontoon |
|
|
(1) Length |
9.5m |
|
(2) Width |
2.2 m |
|
(3) Depth |
1.6m |
|
c. Dredging Pump |
|
|
(1) Particle Clearance |
140 mm |
|
(2) Suction Dia. |
250 mm |
|
(3) Discharge Dia. |
200 mm |
|
(4) Water Flow |
800-1200 cubic meters/hr |
|
(5) Output of Soil |
150-200 cubic meters/hr |
|
(6) Discharge Distance |
200-800 m |
|
d. Cutter |
|
|
(1) Size |
1000mm |
|
(2) Power of Motor |
40kw |
|
(3) Cutting Speed in rpm |
0-30 |
|
e. Spuds |
|
|
(1) Type |
Mechanical driving |
|
(1) Number |
2 |
|
(2) Dia. |
325 mm |
|
(3) Thickness |
16mm |
|
(4) Length |
13 m |
|
f. Ladder Winch |
|
|
(1) Winch Type |
Mechanical winch |
|
(2) Maximum Speed |
18m/s |
|
(3) First Layer Pull |
4 tons |
|
g. Swing Winch |
|
|
(1) Winch Type |
Mechanical winch |
|
(2) Maximum Speed |
18m/s |
|
(3) First Layer Pull |
4 tons |
|
h. Auxiliary Generator |
|
|
(2) Power |
30kw |
|
(3) Voltage |
220/380v |
|
