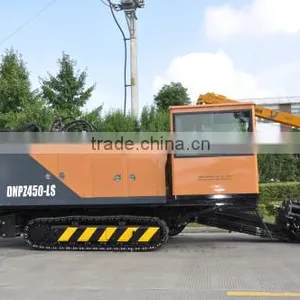

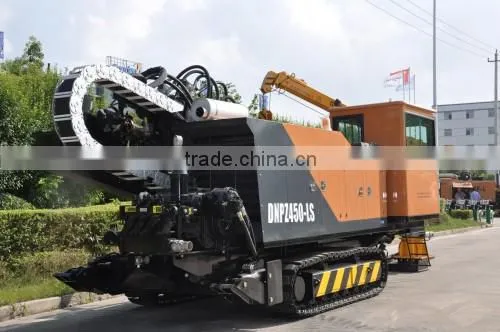

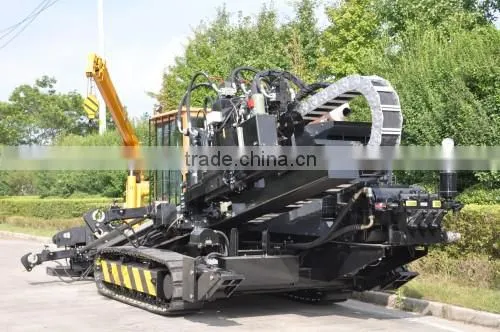

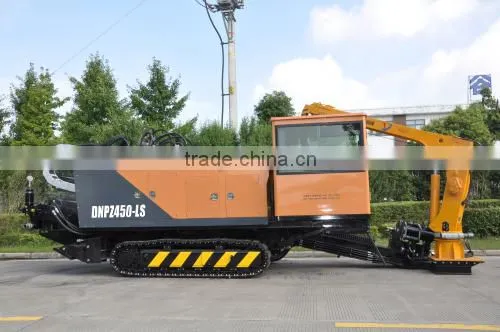

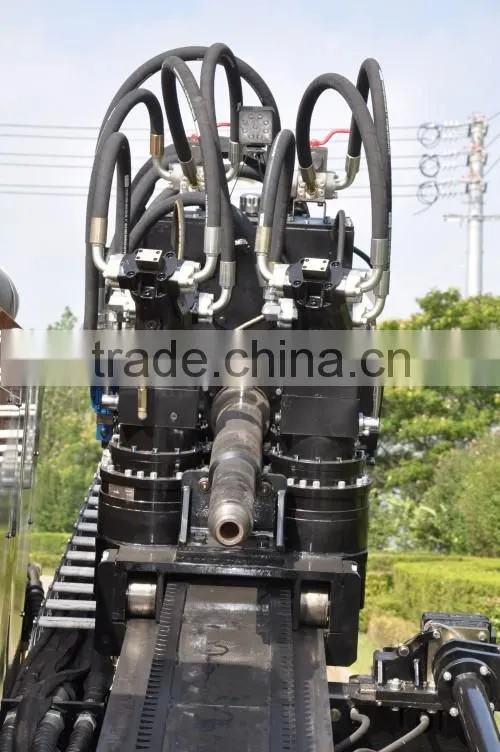

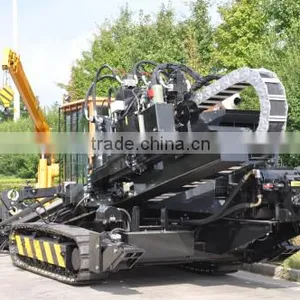

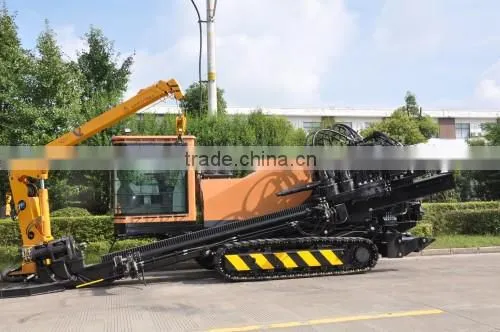

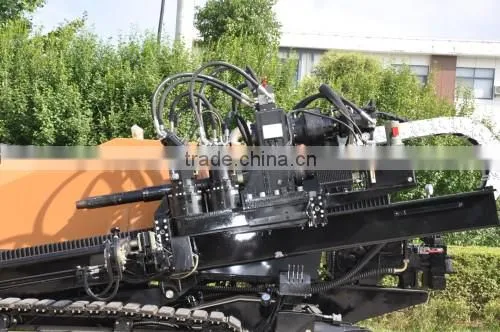

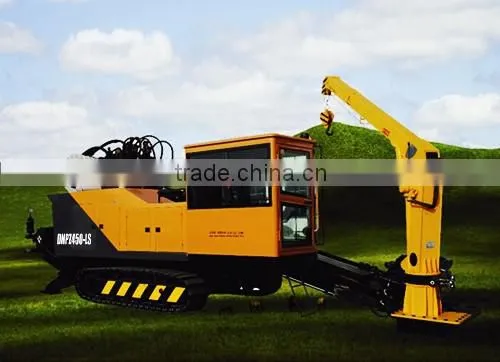

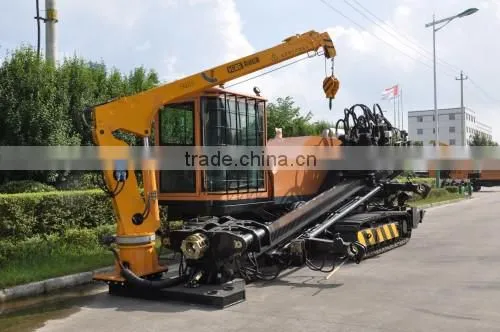

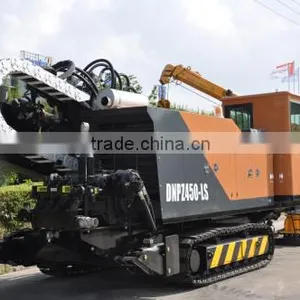

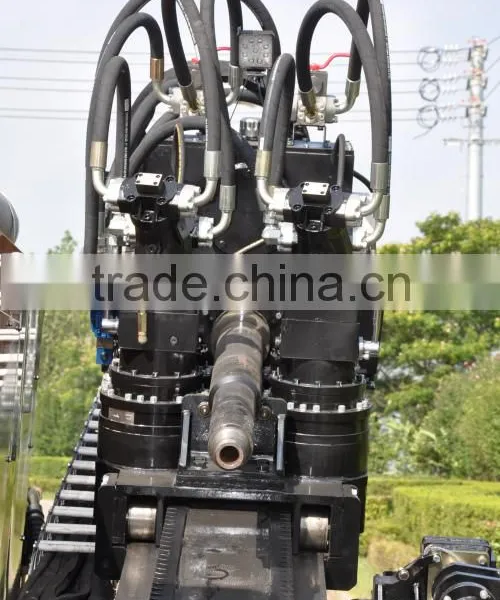

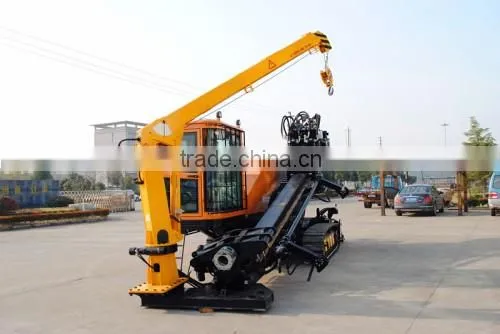

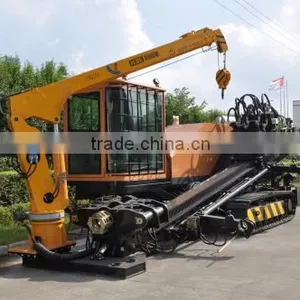

Help CenterDORSON Horizontal Directional Drill DNPZ450-LS
Related Products
-
Horizontal Directional Drilling 15 Ton HDD Machine Pipe Pulling MachineUS$ 60,000 - 300,000MOQ: 1 Set -
Hydraulic HDD Trenchless Horizontal Directional Drilling for SaleUS$ 60,000 - 300,000MOQ: 1 Set
-
Static Pressure Pile Machine for SaleUS$ 1,000 - 1,000,000MOQ: 1 Set
-
Hydraulic Pressure Piling Machine, 400 Ton Hydraulic Static Pile DriverUS$ 1,000 - 1,000,000MOQ: 1 Set
-
Horizontal Directional Drilling Machine China Golden SupplierUS$ 60,000 - 300,000MOQ: 1 Set
Item |
Parameter |
Item |
Parameter |
|
Rig Weight (kg) |
14500 |
Size(L×W×H) (mm) |
8450×2320×2650 |
|
Max. Push & Pull force (KN) |
450/900 |
Max. Torque (N*m) |
27000 |
|
Max. Push & Pull speed (m/min) |
55 |
Max. Rotation Speed (r/min) |
95 |
|
Engine Power (KW) |
194 |
Max. Mud Pump Flow (L/min) |
600 |
|
Caterpillar Walking Speed (Km/h) |
3-5 |
Max. Mud Pump Pressure (M Pa) |
10 |
|
Entry Drill Angle (°) |
12-20 |
Max. Climbing Gradient (°) |
18 |
|
Max Aperture Diameter (mm) |
1100 |
Max. Drilling Length (m) |
600 |
Engine |
Commins |
Push & Pull motor |
German Rexroth / Italy Sam |
Mud Pump |
Leike/zhongdi/Zhongtan |
Push & Pull motor |
German Rexroth |
Hydraulic Motor |
German Rexroth |
Walking Motor |
KoreaDesung / Miaoyifu/ Other |
1. Rotation adopts close-circuit system.
2. Rack and pinion for push&pull, with high efficiency, working stability.
3. Push&pull and clamp adopt auto-variable system, load-sensitive control.

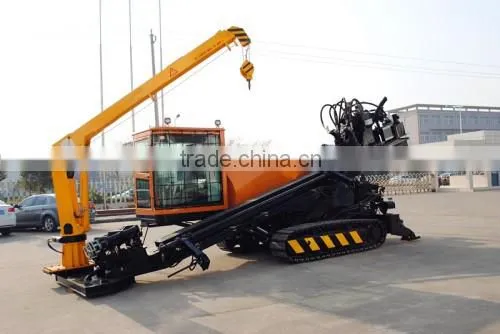

4. Large torsion motor drives rotary mechanical manipulator for loading and unloading drill pipes, with adjustable overturning angle up to 220°.
5. Rapid and convenient loading and unloading drill pipes largely reduces labor intensity and increases productivity.
6. Simple electric circuit, low failure rate.
7. Wire-control walking system ensures safety during travelling.
8. Advanced hydraulic system raises 15-20% productivity than traditional one, reduces 50% heat and saves 15-20% energy.
9. Main parts are chosen from international first class producers, highly increasing products performance reliability.
10. Fit to two kinds of drill rod: φ89×4500mm /φ102×4500mm.
