Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > DNGY2000 Rock Core Drilling Machine 179kw 6650NM 1235 R/min Rock Drilling Machine

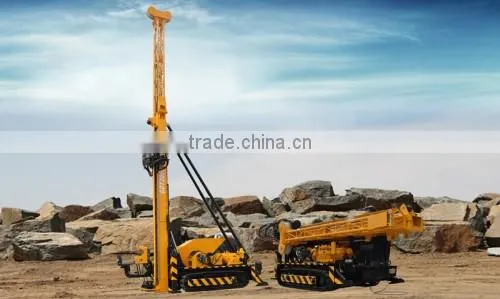

DNGY2000 Rock Core Drilling Machine 179kw 6650NM 1235 R/min Rock Drilling Machine

Name: DNGY2000 Rock Core Drilling Machine 179kw 6650NM 1235 R/min Rock Drilling Machine
Brand: DORSON
SKU: 114281069
Availability: InStock

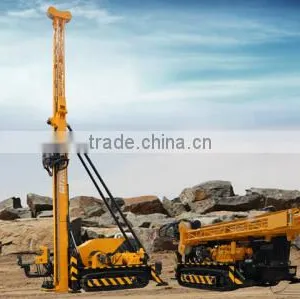

DNGY2000 Rock Core Drilling Machine 179kw 6650NM 1235 R/min Rock Drilling Machine thumbnail-1

DNGY2000 Rock Core Drilling Machine 179kw 6650NM 1235 R/min Rock Drilling Machine photo-1

US$ 40,000 - 300,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Rotary Drilling Rig

Power Type:

Diesel

Contact Supplier Request Quote Chat Now

Shandong Dorson Hydraulic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Rotary Drilling Rig

Power Type Diesel

Place of Origin Shandong, China

Brand Name DORSON

Model Number DNGY2000

Usage Other, drilling

Voltage 380V

Power(W) 179kw

Dimension(L*W*H) 7890 2300 2620

Weight 12500kg

Certification ce iso

Warranty 1 Year

After-sales Service Provided Overseas service center available

1 Folding mast

2 Stroke of driving head 4.8m

3 Lift power 28T, torque 6650N·m

4 Caterpillar walking chassis

5 Main hoist with excellent lifting power

6 High-speed auxiliary hoist with rope-release and coring

Cummins 6CTA8.3-240 engine

Working size(L×W×H mm) 5890×2300×13840 mm

Transportation size(L×W×H mm)6948×2300×2625 mm

High-strength wear-resistant alloy steel caterpillar with rubber is suitable for different road surface

Highest walking speed 2.5Km/h

Climbable gradient: 30°

Two-stage reduction oil bath gear box, 2 sets Sayi BD3 hydraulic motor with double-displacement

and big torque, driving head can adjust speed variably.

normally closed hydraulic chuck

Max. Torque 6650 N·m

Highest Speed: 1235 r/min

Into system

Driving head adopts cylinder straight

Sliding move stroke 480mm

Into stroke 4800mm

Max. pulling force 285 KN

Max. Into force 135 KN

Max. Into speed 29580mm/min

Max. pulling speed 13930mm/min

Body mast

folding mast, goose body uses MC nylon pulley

Mast sliding stroke 1.2m

Mast height(collapsed) 7.7 m

Mast height(working) 13.84m

Main hoist rope capacity 90m, single rope lifting force 130KN, first layer rope speed 49.8 m/min, diameter of France high-performance wear-resistant wire rope 22mm

Main and auxiliary hoist

Auxiliary hoist rope capacity 2200m, ingle rope lifting force 16KN, first layer rope speed 204.5m/min, diameter of German Faer Pu high-performance wear-resistant wire rope 6mm

Hydraulic system

Advanced load-sensing system control

Adopt Am. Sauer main hydraulic system

Hoist motor adopts Italy Sam high-speed motor

Driving head adopts Italy Sayi big-torque motor

Hydraulic tank capacity 450 L

Hydraulic supporting leg

Front leg 2pcs 100mm(bore)×450mm(stroke)

Back leg(bracing type) 2pcs 100mm(bore)×250mm(stroke)

Electrical system 24V

Sensitive circuits system

2pcs 12V liquid battery

Equipped with small generator

Other configuration

Single pump Max. displacement of 320L/min horizontal triplex single acting reciprocating piston

mud pump

Danfoss cycloid motor-driven stirrer

Equipped with different DCDMA model drill rod and Kava under clamp and down clamp

Equipped with centralizer of different core

Equipped with control cabinet of display panel and control panel

Load block assembly convenient for hoist lifting

Engine	Commins	Supporting motor	Italy Sam
shift-type boring tower	Japan MC Nylon	Main motor	Italy Sam
Hydraulic Motor	American Sauer	Mud agitator motor	Danfoss

Adopt advanced load-sensing proportional control technology and efficient hydraulic system driven, to minimize the power consumption and system heating of rig, meanwhile to improve the holing efficiency and operation safety to the highest standards. It is the ideal drilling machine suitable for geological, metallurgical, coal, nuclear, hydro and other industries dominated by diamond drilling and carbide, which is also suitable for shallow oil and gas exploration, mining tunnelventilation, drainage.
